Charge Air Radiator
WARNING: This page is about a different variant/trim than selected.

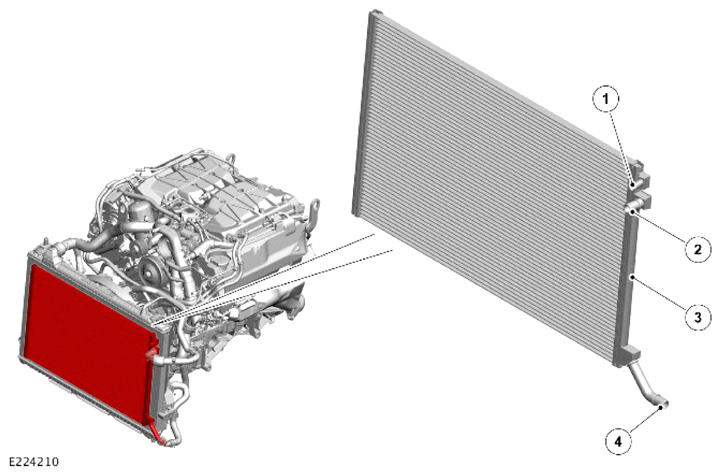

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bleed screw |
| 2 | Engine coolant inlet connection |
| 3 | Charge air radiator |
| 4 | Engine coolant outlet connection |
The charge air radiator is a cross flow type with an aluminum core and aluminum end tanks. The charge air radiator is located between the Air Conditioning (A/C) condenser and the radiator. The charge air radiator is secured to the radiator mounting frame with 6 mounting lugs and a bracket on the lower right.
The left end tank comprises connections to the charge air coolant pump outlet pipe, the charge air cooler pipe and the bleed screw.
