Charge Air Cooler

WARNING: This page is about a different variant/trim than selected.

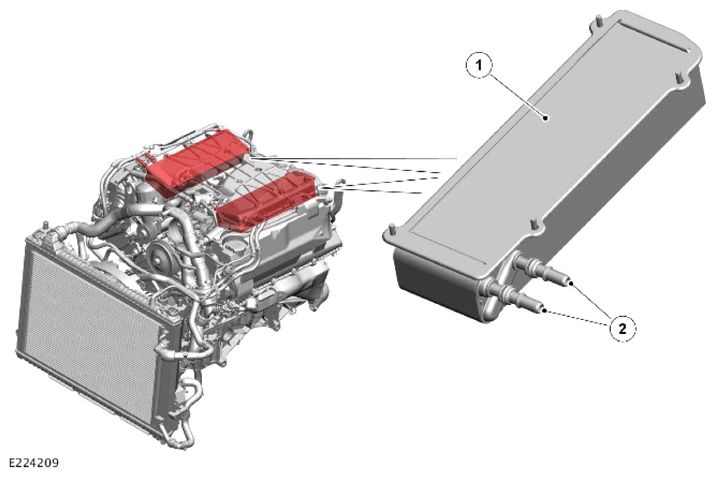

G15621058Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Charge air cooler
2 Engine coolant pipe connections

A charge air cooler is installed in each intake manifold.

For additional information, refer to: INTAKE AIR DISTRIBUTION AND FILTERING - V8 S/C 5.0L PETROL (G2255265)
