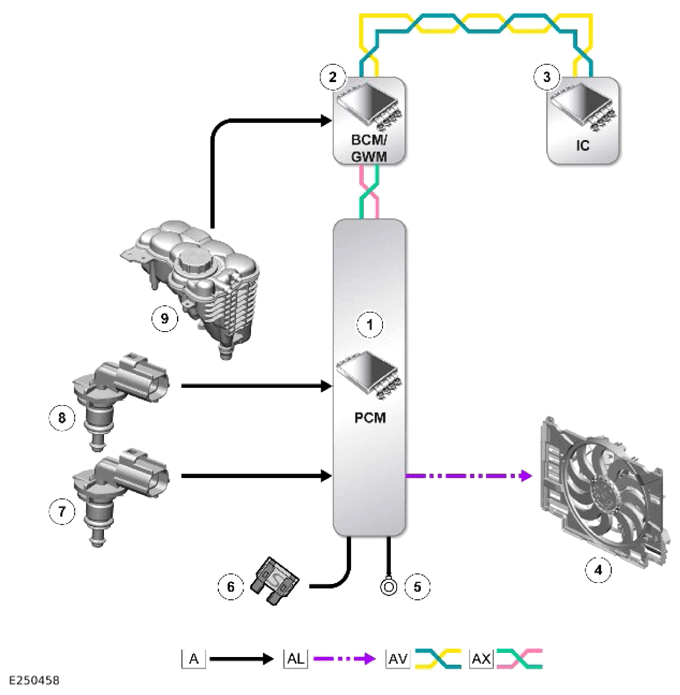

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Instrument Cluster (IC) |
| 4 | Electric cooling fan |
| 5 | Ground |
| 6 | Power supply |
| 7 | Engine Coolant Temperature (ECT) sensor |
| 8 | Engine Coolant Temperature (ECT) sensor - Heater manifold |
| 9 | Engine coolant level sensor |
