Engine And Ancillaries (G2366837): Notes

WARNING: This page is about a different variant/trim than selected.

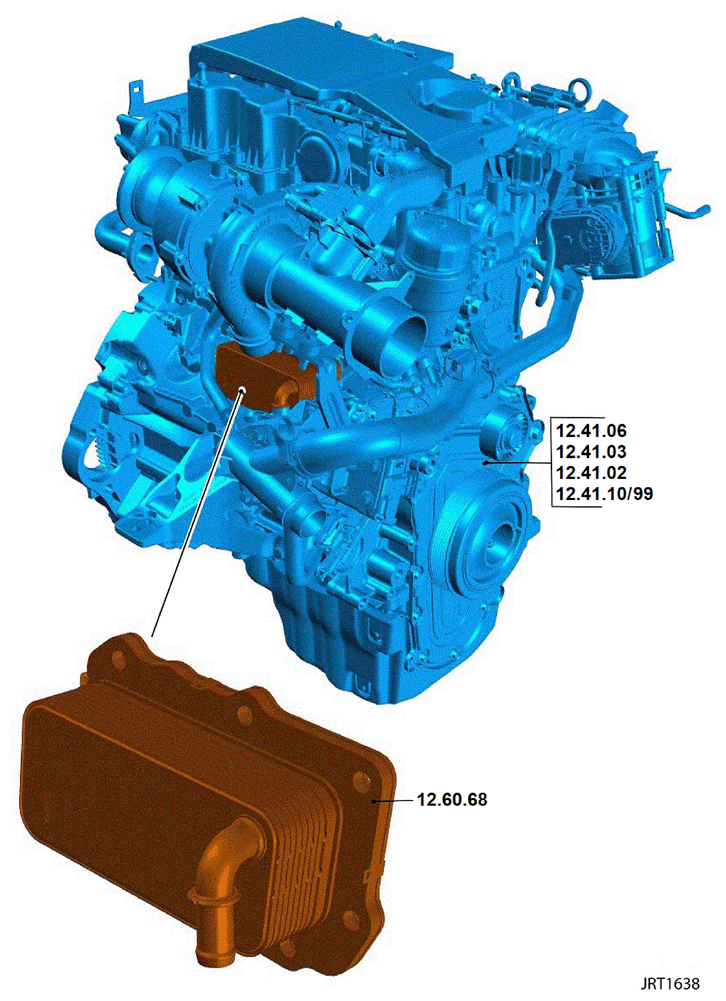

12.41.02 LONG ENGINE ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 2WD 10.80
G15619370Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
12.41.02 LONG ENGINE ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 4WD 14.10
G15619371Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

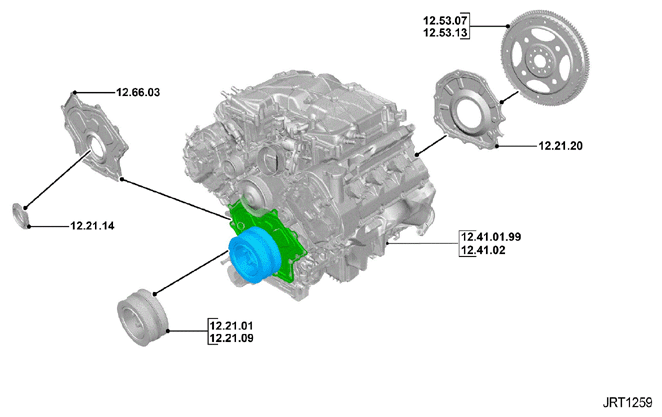

12.41.02 LONG ENGINE ASSEMBLY - RENEW 5000 CC, AJ V8, SUPERCHARGED 15.20
G15619372Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
