Timing Drive Components (G2244093): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

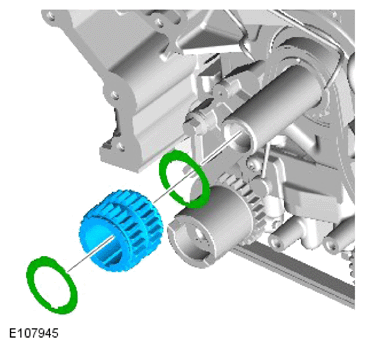

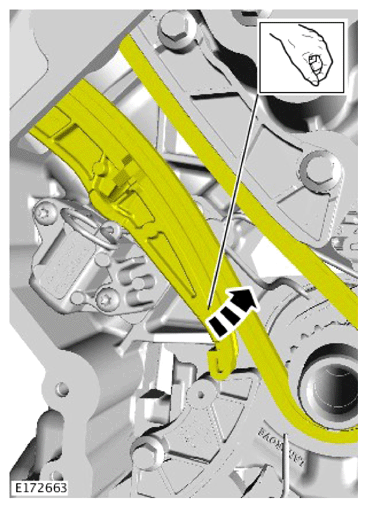

• Install the sprocket.
• Make sure that 2 new friction washers are installed.

  Renew Part: Crankshaft sprocket friction washer Quantity: 2 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

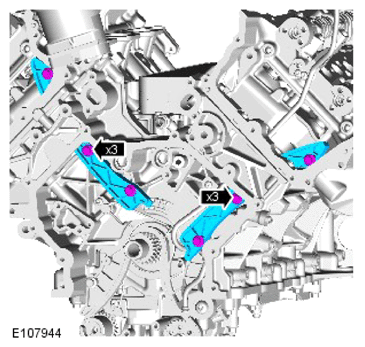

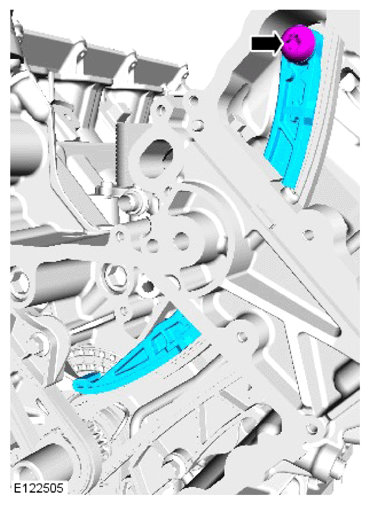

• Install the timing chain fixed guides.
• Install and tighten the 6 bolts.

  Torque  : 12 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

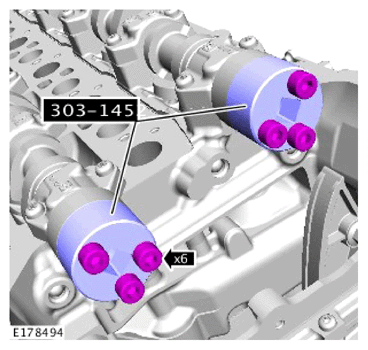

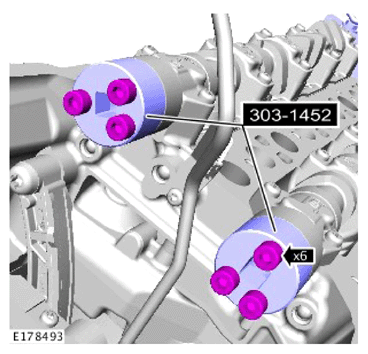

• Install the special tool to each camshaft.

  Special Tool(s): 303-1452

• Install and tighten the 6 special tool bolts.

  Torque  : 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

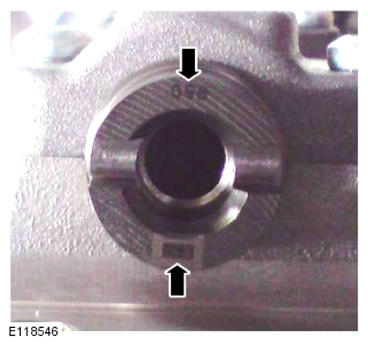

• Carefully rotate the camshafts into the position illustrated.

• Install the special tool.

  Special Tool(s): 303-1452

• Carefully rotate the camshaft clockwise then anti-clockwise whilst tightening the special tool locking nuts until the camshafts do not rotate anymore.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the 6 special tool bolts.
• Remove the special tool from each camshaft.

  Special Tool(s): 303-1452

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain and the 2 variable valve timing units.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

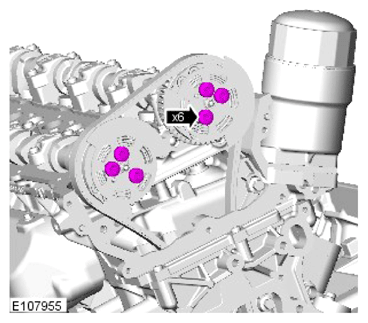

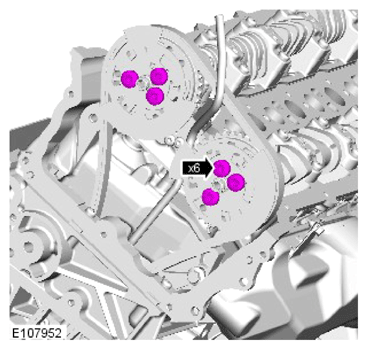

Install and tighten the 6 bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

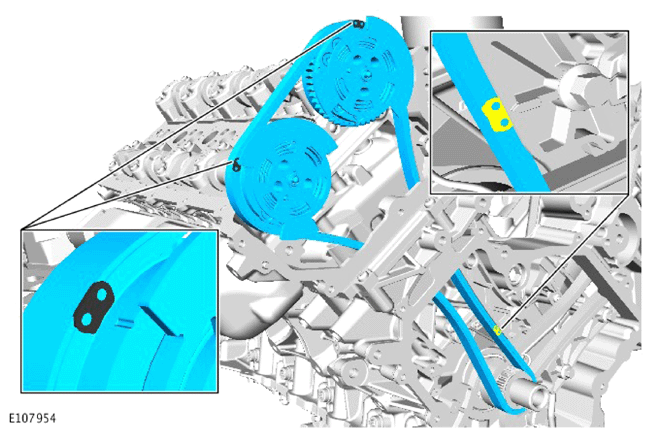

Make sure that all the timing chain alignment marks are in the positions as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

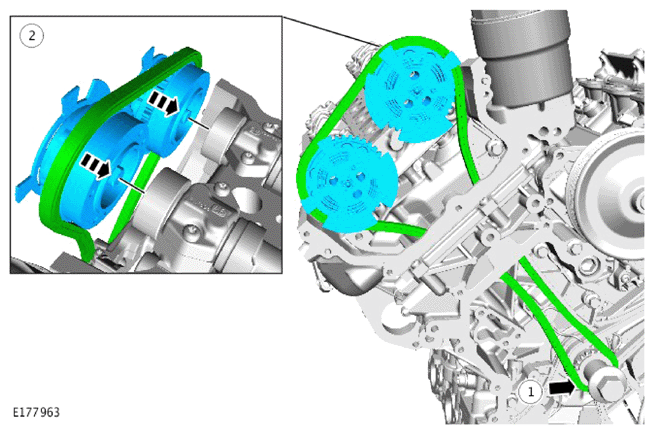

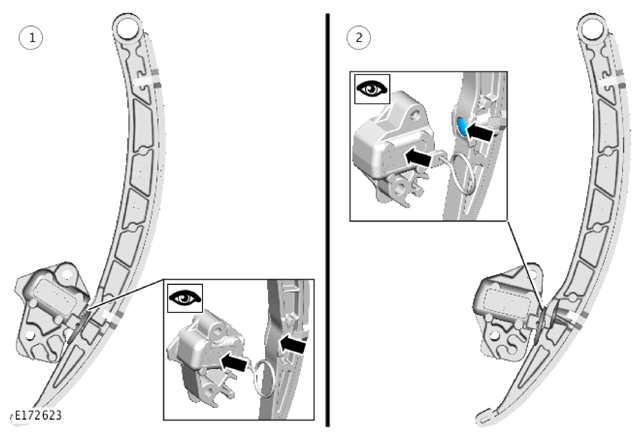

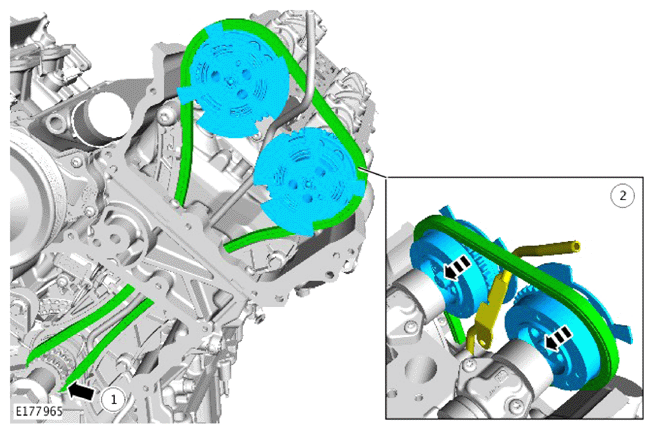

• Using the illustration, identify which timing chain tensioner and guide is currently fitted to the vehicle.
• Make sure the vehicle is assembled using components shown in section (2) of the illustration only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

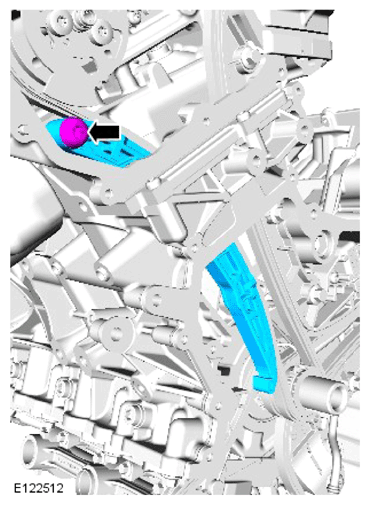

• Install the guide rail.
• Install and tighten the bolt.

  Torque  : 25 Nm

• Before installing the timing chain tensioners, use the illustration shown to identify which timing chain tensioner is currently fitted to the vehicle.
• Make sure the vehicle is assembled using components shown in section (2) of the illustration only.
• If a new timing chain tensioner is installed, do not deploy the tensioner pin and proceed to the next step.
• If the tensioner to be installed has previously been deployed, make sure the attached animation is followed to make sure the tensioner is set correctly, failure to do this may result in damage to the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

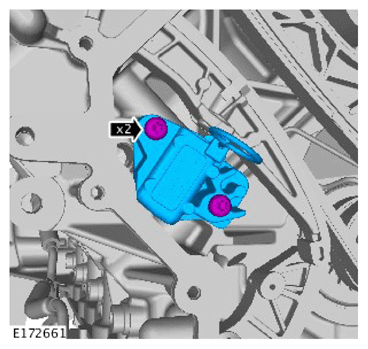

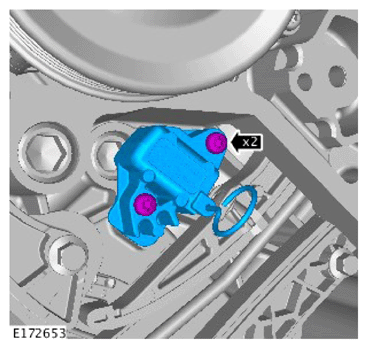

• Install the timing chain tensioner.
• Install and tighten the 2 bolts.

  Torque  : 12 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

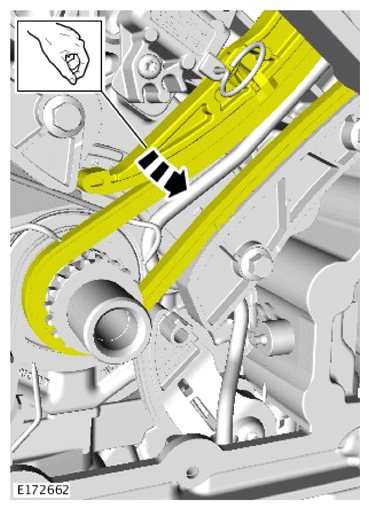

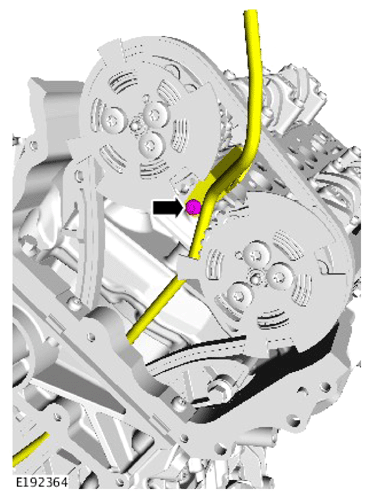

Apply and maintain tension on the timing chain as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

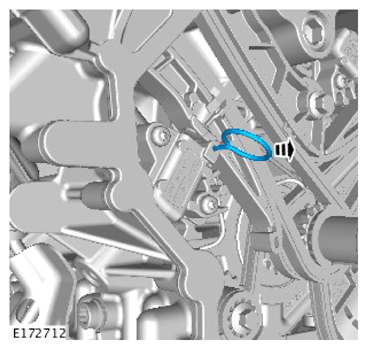

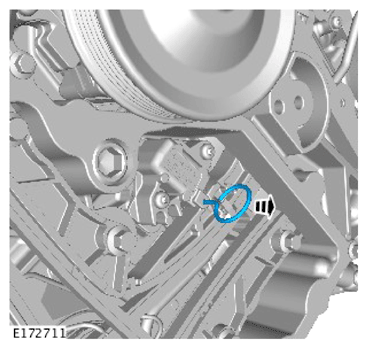

Remove the timing chain tensioner pin.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

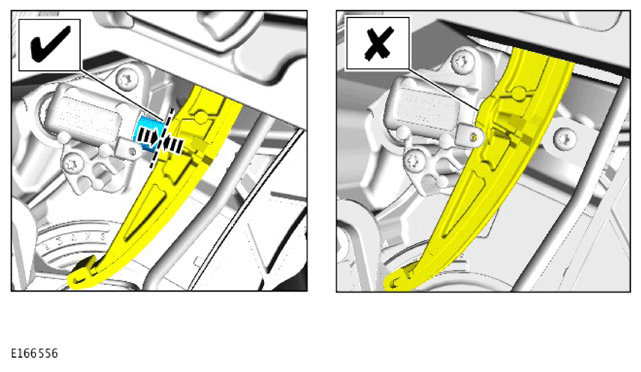

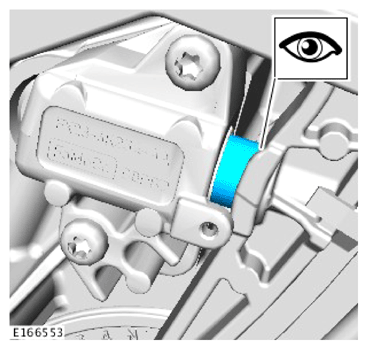

The timing chain tensioner piston should apply tension to the timing chain guide in the position as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The timing chain tensioner must maintain tension on the chain guide. If the piston can be pushed back so the chain guide makes contact with the body of the tensioner, the incorrect tensioner has been installed. Repeat the steps  12- 17.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the special tool to each camshaft.

  Special Tool(s): 303-1452

• Install and tighten the 6 special tool bolts.

  Torque  : 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Carefully rotate the camshafts into the position illustrated.

• Install the special tool.

  Special Tool(s): 303-1452

• Carefully rotate the camshaft clockwise then anti-clockwise whilst tightening the special tool locking nuts until the camshafts do not rotate anymore.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the 6 special tool bolts.
• Remove the special tool from each camshaft.

  Special Tool(s): 303-1452

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain and the 2 variable valve timing units.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 6 bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

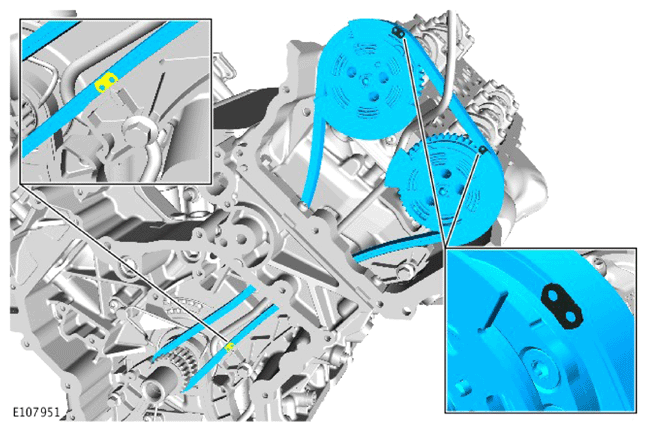

Make sure that all the timing chain alignment marks are in the positions as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Using the illustration, identify which timing chain tensioner and guide is currently fitted to the vehicle.
• Make sure the vehicle is assembled using components shown in section (2) of the illustration only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the guide rail.
• Install and tighten the bolt.

  Torque  : 25 Nm

• Before installing the timing chain tensioners, use the illustration shown to identify which timing chain tensioner is currently fitted to the vehicle.
• Make sure the vehicle is assembled using components shown in section (2) of the illustration only.
• If a new timing chain tensioner is installed, do not deploy the tensioner pin and proceed to the next step.
• If the tensioner to be installed has previously been deployed, make sure the attached animation is followed to make sure the tensioner is set correctly, failure to do this may result in damage to the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the timing chain tensioner.
• Install and tighten the 2 bolts.

  Torque  : 12 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply and maintain tension on the timing chain as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the timing chain tensioner pin.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The timing chain tensioner piston should apply tension to the timing chain guide in the position as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The timing chain tensioner must maintain tension on the chain guide. If the piston can be pushed back so the chain guide contacts with the body of the tensioner, the incorrect tensioner has been installed. Repeat the steps  27- 32.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

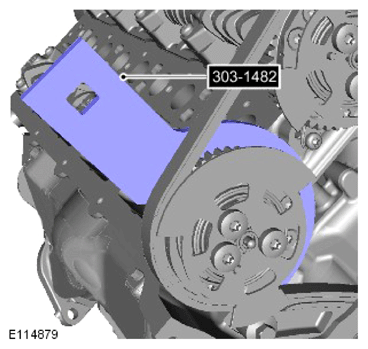

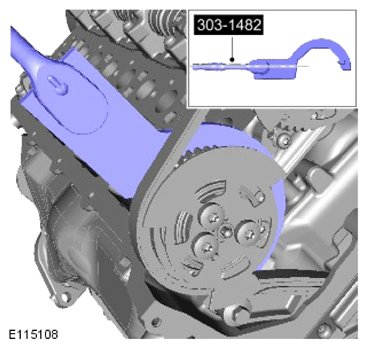

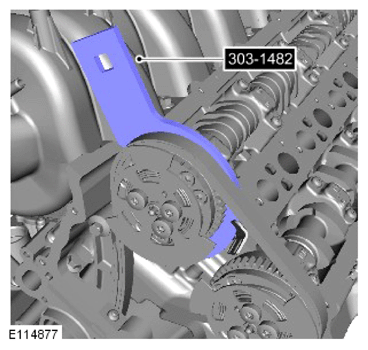

Install the special tool.

Special Tool(s): 303-1482

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

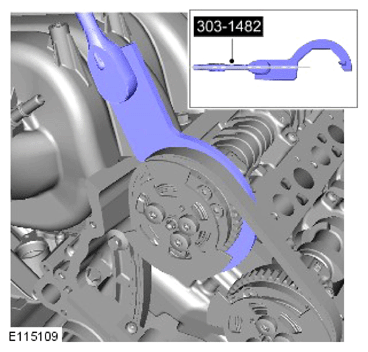

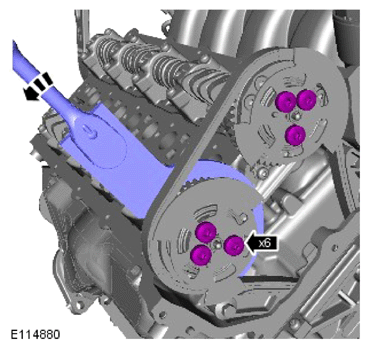

• Install the torque wrench to the special tool.
• Set the torque wrench to 35 Nm.
• Make sure that the torque wrench is aligned with the special tool as illustrated in the graphic.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

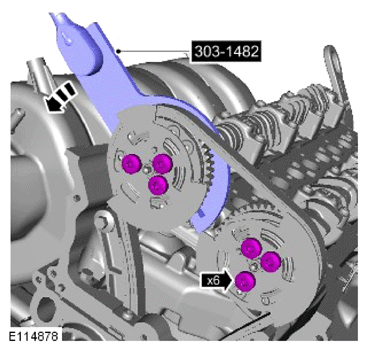

Fully tighten the 6 variable valve timing unit bolts.

Torque  : 32 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the oil drain pipe.
• Install and tighten the bolt.

  Torque  : 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 303-1445

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s): 303-1482

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the torque wrench to the special tool.
• Set the torque wrench to 35 Nm.
• Make sure that the torque wrench is aligned with the special tool as illustrated in the graphic.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fully tighten the 6 variable valve timing unit bolts.

Torque  : 32 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 303-1445

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the special tool bolt.
• Remove the special tool.

  Special Tool(s): JLR-303-1303

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

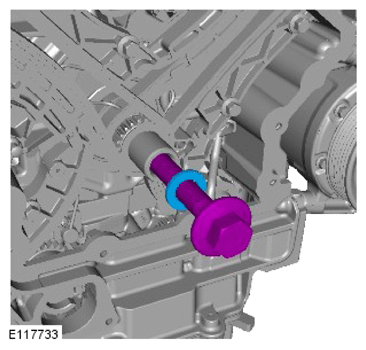

Install and tighten the crankshaft pulley bolt.

Torque  : 20 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the 2 special tool bolts.
• Remove the special tool.

  Special Tool(s): JLR-303-1304

Rotate the engine 2 complete turns clockwise.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

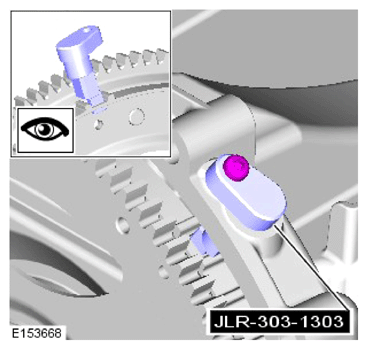

• Install the special tool.

  Special Tool(s): JLR-303-1303

• Install and tighten the special tool bolt.

  Torque  : 8 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

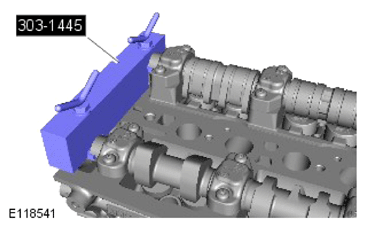

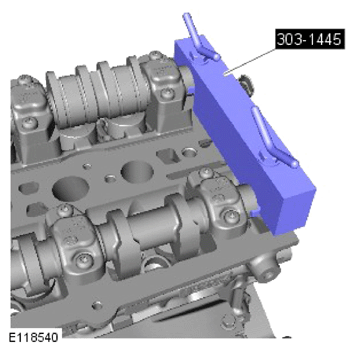

Install the special tool. If the special tool cannot be installed, remove both timing chains and repeat the process from step  3 of the installation until the special tool is installed correctly.

Special Tool(s): 303-1445

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool. If the special tool cannot be installed, remove both timing chains and repeat the process from step  3 of the installation until the special tool is installed correctly.

Special Tool(s): 303-1445

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 303-1445

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 303-1445

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the special tool bolt.
• Remove the special tool.

  Special Tool(s): JLR-303-1303

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

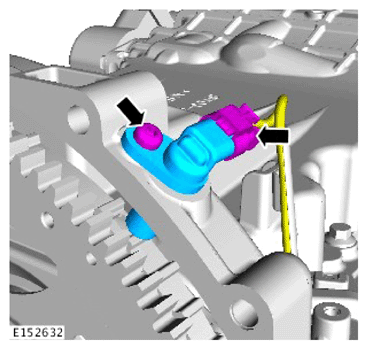

• Install the Crankshaft Position (CKP) sensor.
• Install and tighten the bolt.

  Torque  : 10 Nm

• Connect the CKP sensor electrical connector.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

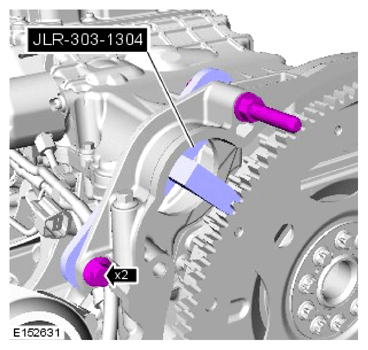

• Install the special tool.

  Special Tool(s): JLR-303-1304

• Install and tighten the 2 special tool bolts.

  Torque  : 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the crankshaft bolt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the 2 special tool bolts.
• Remove the special tool.

  Special Tool(s): JLR-303-1304

Refer to: TIMING COVER

Refer to: STARTER MOTOR

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
