Timing Cover (G2248113): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

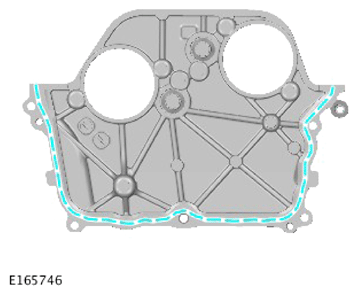

- Apply RTV sealant (Loctite 5901G) in a 2-3 mm diameter to the areas shown.
  Refer to: SPECIFICATIONS
- Make sure the front cover retaining bolts are tightened within 7 minutes.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

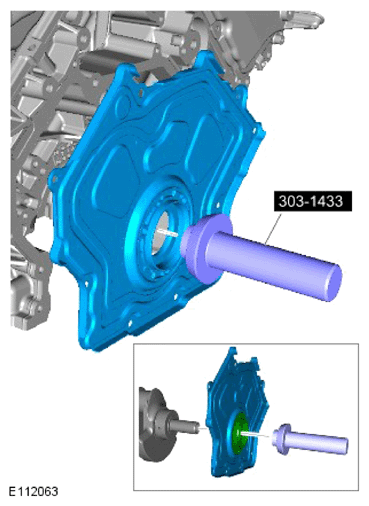

Install a new front cover using the special tool.

Special Tool(s): 303-1433
NOTE: Special tools shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

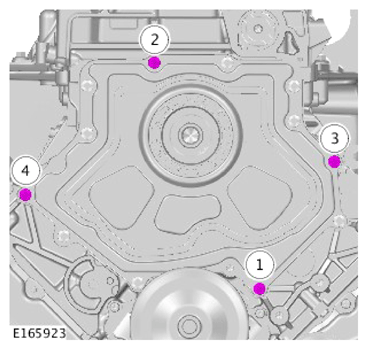

Install the 4 bolts as illustrated finger tight only at this stage.
NOTE: Special tools shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fully tighten the 4 bolts in the sequence as illustrated.

Torque : 12 Nm
NOTE: Special tools shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

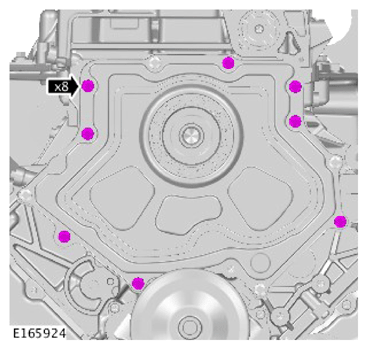

- Install and tighten the 8 bolts.
  Torque : 12 Nm
- Remove the special tool from the front cover.
  Special Tool(s): 303-1433
NOTE: Lubricate the seal with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the brake vacuum pump.
- Install and tighten the 2 bolts.
  Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

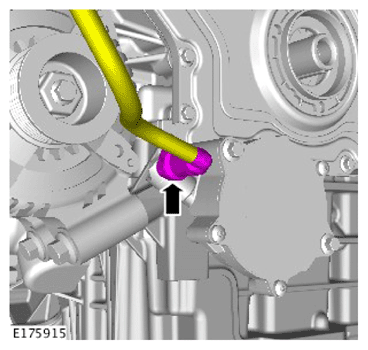

Connect the brake vacuum pipe.
Install the crankshaft pulley.
Refer to: CRANKSHAFT PULLEY
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

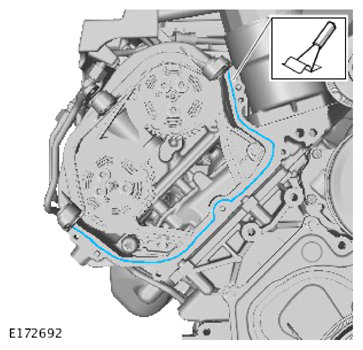

Using a suitable plastic scraper remove the old sealant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

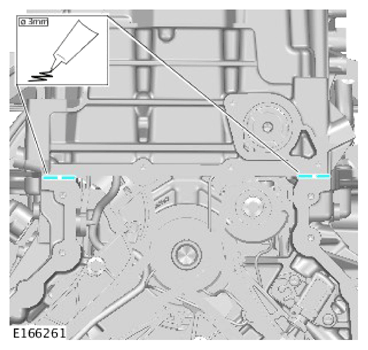

- Apply RTV sealant (Loctite 5901G) in a 2-3 mm diameter to the areas shown.
  Refer to: SPECIFICATIONS
- Make sure the front cover retaining bolts are tightened within 7 minutes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

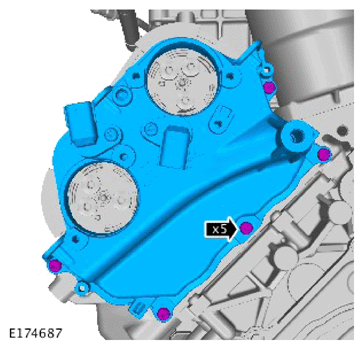

- Install the upper timing cover.
- Install and tighten the 5 bolts finger tight only at this stage.

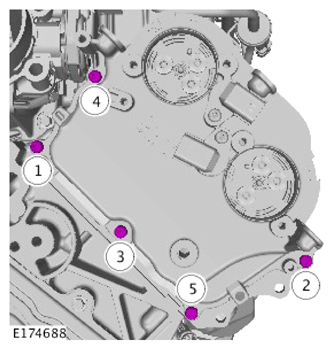

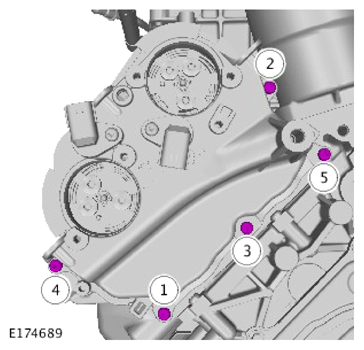

Fig 1: Upper Timing Cover Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fully tighten the 5 bolts in the indicated sequence.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

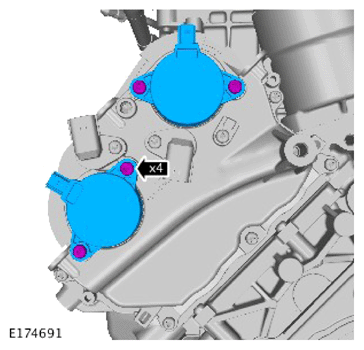

- Install the Variable Camshaft Timing (VCT) actuators.
- Install and tighten the 4 bolts.
  Torque : 12 Nm
Install the right valve cover.
Refer to: RIGHT VALVE COVER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

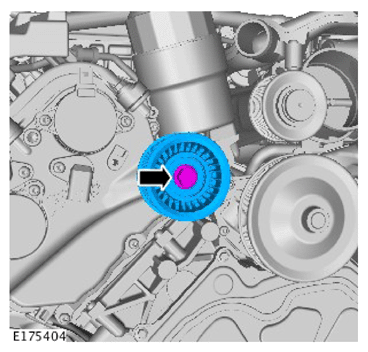

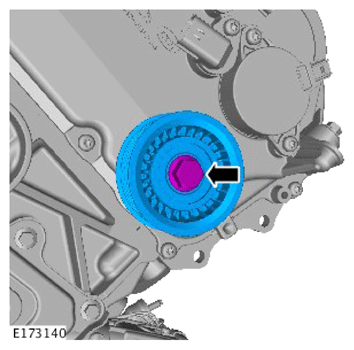

- Install the idler pulley.
- Install and tighten the bolt.
  Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

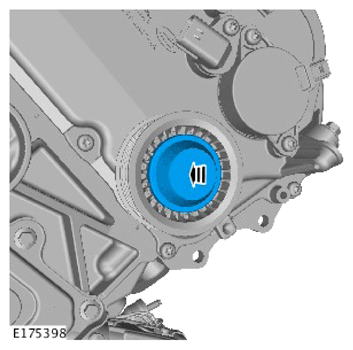

Install the idler pulley cover.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

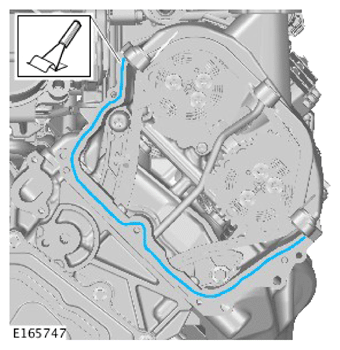

Using a suitable plastic scraper remove the old sealant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Apply RTV sealant (Loctite 5901G) in a 2-3 mm diameter to the areas shown.
  Refer to: SPECIFICATIONS
- Make sure the front cover retaining bolts are tightened within 7 minutes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

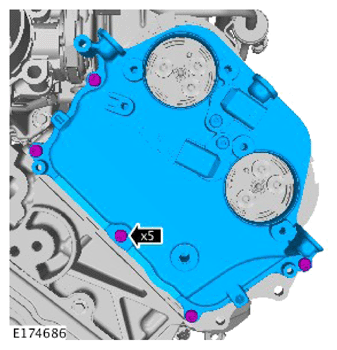

- Install the upper timing cover.
- Install and tighten the 5 bolts finger tight only at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fully tighten the 5 bolts in the indicated sequence.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

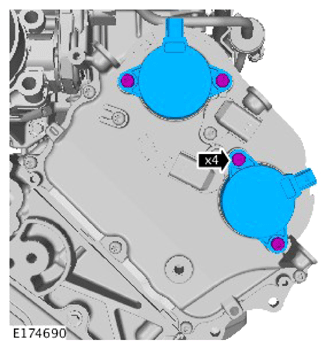

- Install the Variable Camshaft Timing (VCT) actuators.
- Install and tighten the 4 bolts.
  Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the idler pulley.
- Install and tighten the bolt.
  Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the idler pulley cover.
Install the left valve cover.
Refer to: LEFT VALVE COVER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

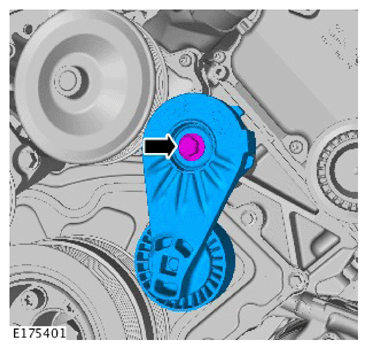

- Install the accessory drive belt tensioner.
- Install and tighten the bolt.
  Torque : 48 Nm
Install the thermostat housing.
Refer to: THERMOSTAT HOUSING
Install the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Fill the engine with oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
