Right Valve Cover (G2244095): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the supercharger.

    Refer to: SUPERCHARGER

  3. Remove the right fuel rail.

    Refer to: RIGHT FUEL RAIL

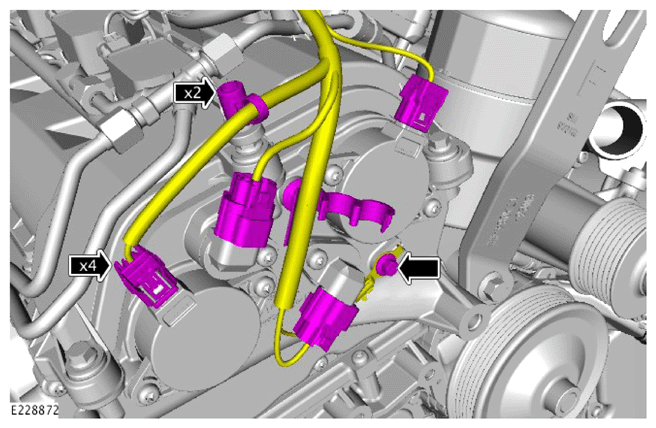

  4. G15619249Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 4 electrical connectors.
    • Release the ground cable bolt.
    • Release the wiring harness clip.
    • Reposition the wiring harness away from the right valve cover.

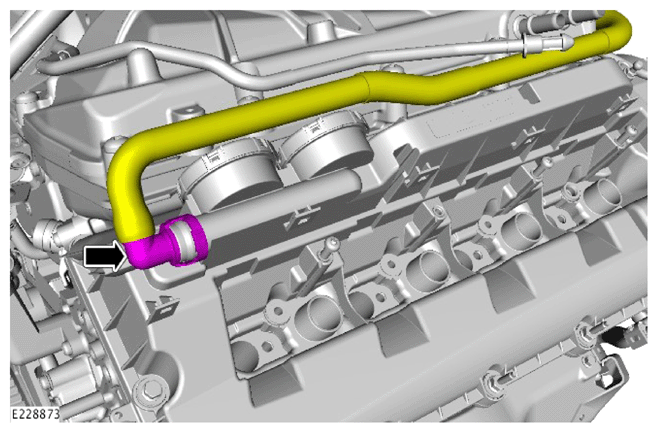

  5. G15619250Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the breather and reposition away from the right valve cover.

  6. NOTE: Note the position of the bolts indicated prior to removal.

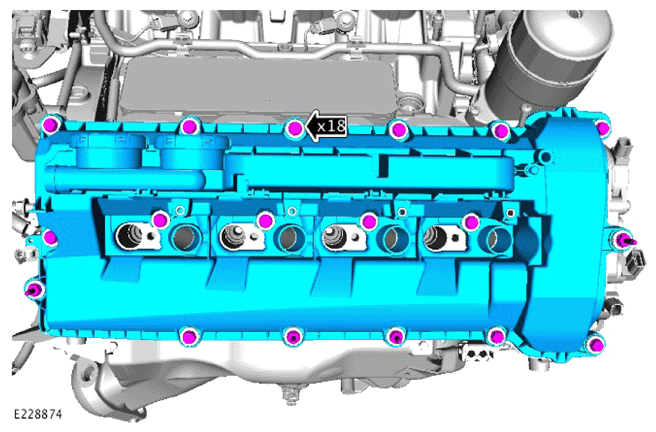

    G15619251Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 18 bolts from the right valve cover.
    • Carefully remove the right valve cover.
    • If the a new valve cover is not being installed, remove and discard the valve cover gasket.
