Right Exhaust Manifold (G2244082): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Some illustrations may show the engine removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

    Refer to: LIFTING

  3. Refer to: RIGHT CATALYTIC CONVERTER

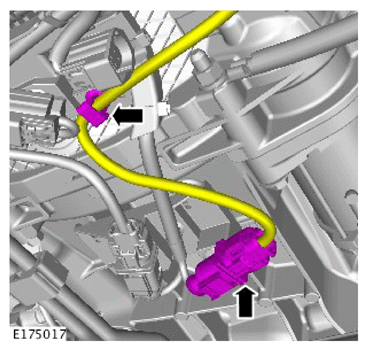

  4. G15618787Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

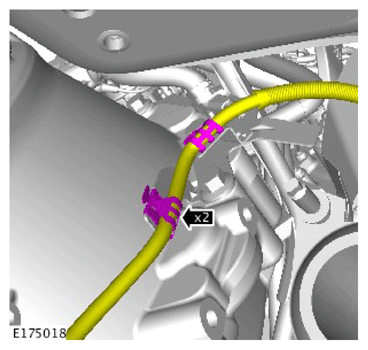

  5. G15618788Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. Refer to: RIGHT ENGINE MOUNT

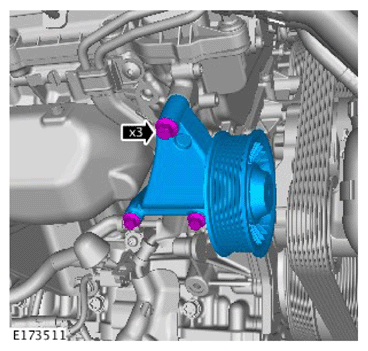

  7. G15618789Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

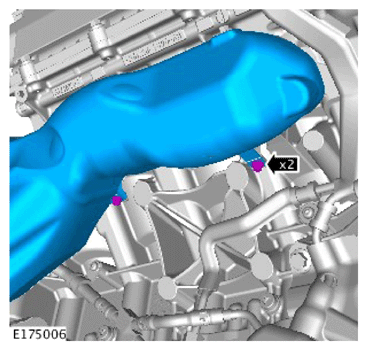

  8. G15618790Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

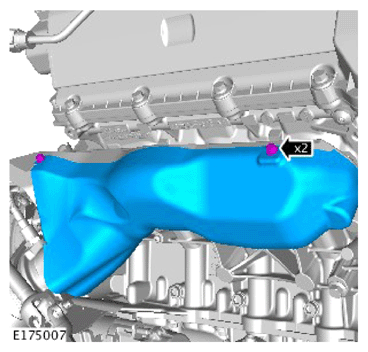

  9. G15618791Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

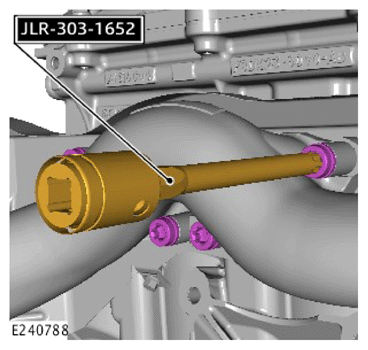

  10. G15618792Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to remove the exhaust manifold bolts.

    Install the Special Tool(s): JLR-303-1652

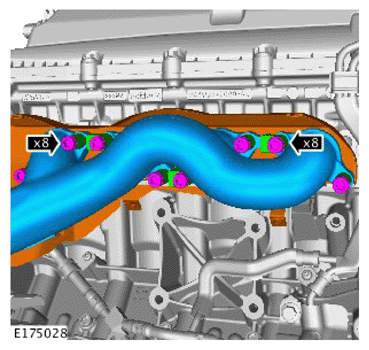

  11. CAUTION: Discard the bolts.
    NOTE:
    • Discard the gasket.
    • Make sure that the position of the spacers is noted before removal of the manifold.
    G15618793Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the Special Tool(s): JLR-303-1652

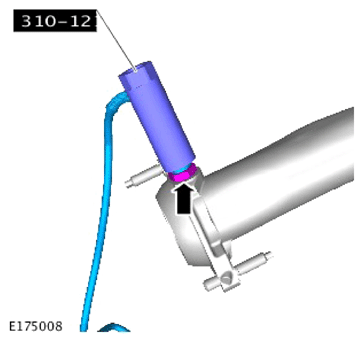

  12. NOTE: Do not disassemble further if the component is removed for access only.
    G15618794Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 310-121
