Right Engine Mount (G2271576): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

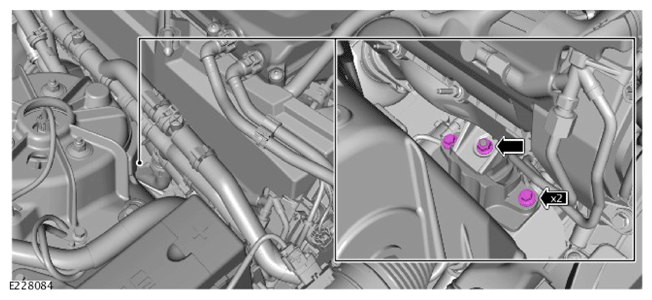

- Remove the right engine mount nut.
- Remove the 2 right engine mount bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

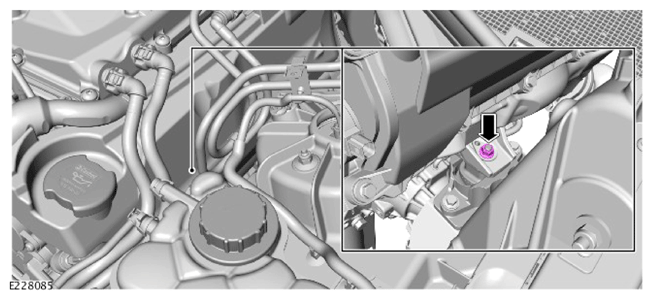

Remove the right engine mount nut.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - V8 S/C 5.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

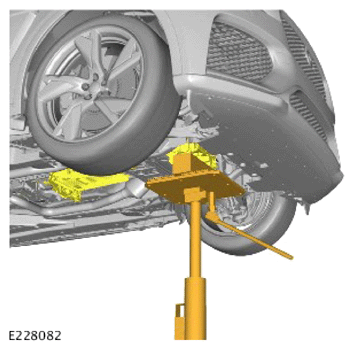

With a suitable tool, raise and support the engine to allow mount removal.

General Equipment: Engine hoist (1 tonne minimum capacity)

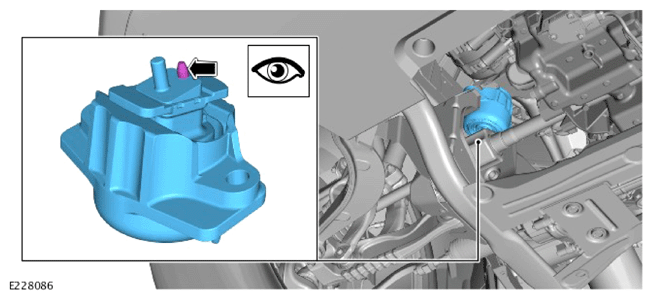

WARNING: Note the orientation of the engine mount prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the right engine mount.
