Right Cylinder Head (G2244074): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Some illustrations may show the engine removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle.
Refer to: LIFTING
Refer to: RIGHT EXHAUST MANIFOLD
Refer to: RIGHT CAMSHAFT

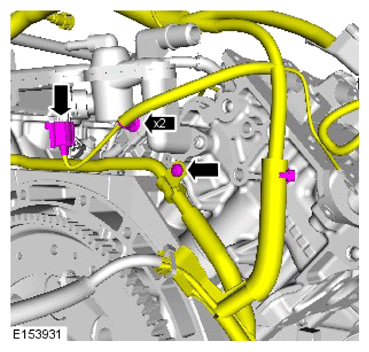

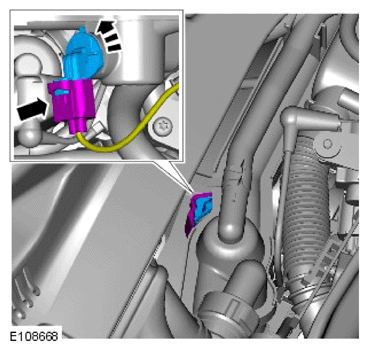

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

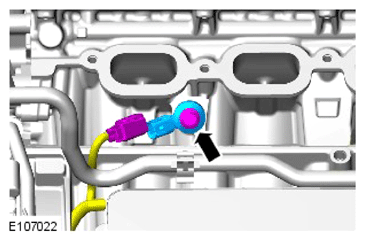

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

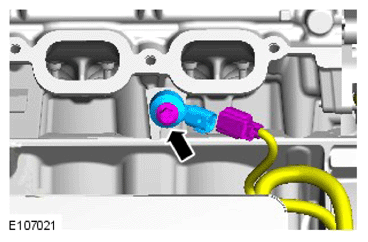

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

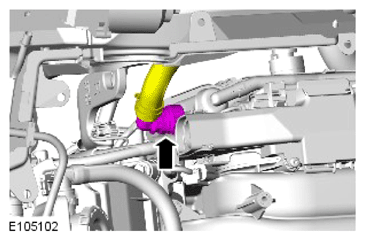

NOTE: Clamp the hose to minimize coolant loss.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Clamp the hose to minimize coolant loss.

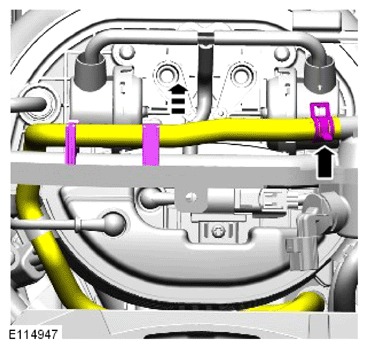

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

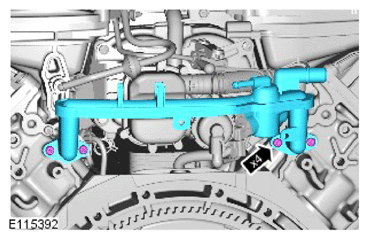

CAUTION: Discard the seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

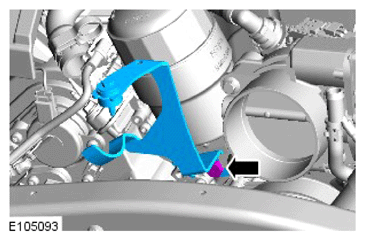

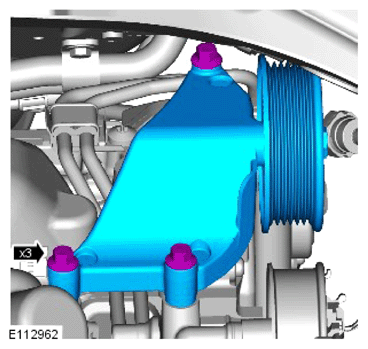

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

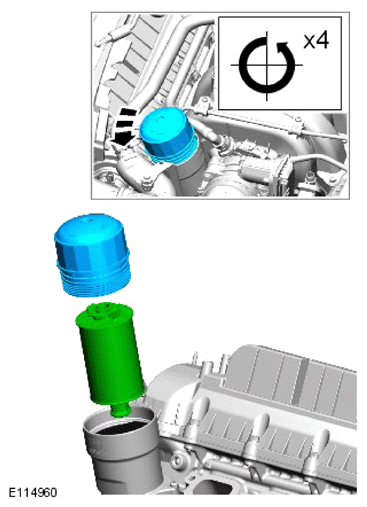

NOTE: Remove and discard the O-ring seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

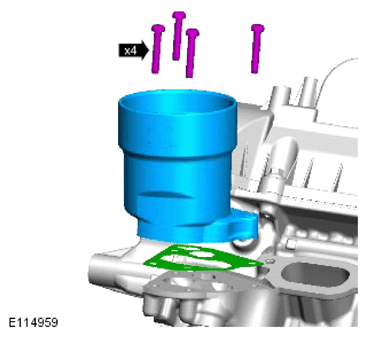

NOTE: Discard the gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

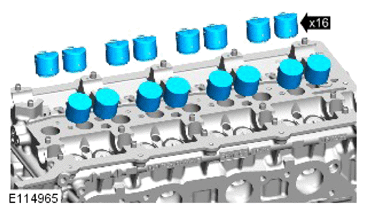

CAUTION:
- If a new cylinder head has been installed then new tappets must be installed.
- If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

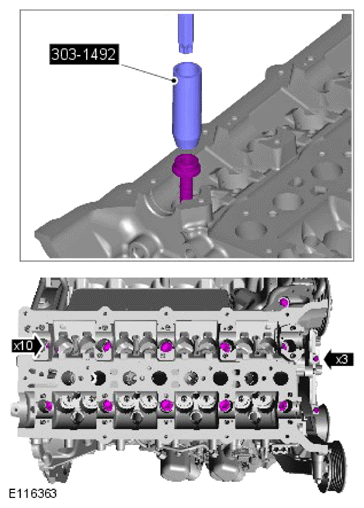

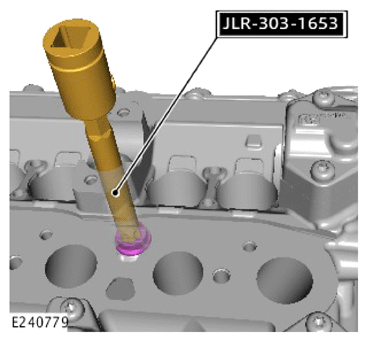

Use the special tool to remove the cylinder head bolts.

Install the Special Tool(s): JLR-303-1653
CAUTION: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): 303-1492
Remove the special tools.
Remove the Special Tool(s): JLR-303-1653 , 303-1492

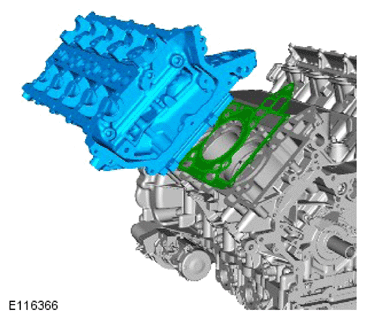

NOTE: Discard the gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
