Right Camshaft (G2244069): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Make sure that the orientation and code on the top of the camshaft bearing caps is noted (along with the bank - A or B), so that on installation the components are installed to their original position. Failure to follow this instruction may cause damage to the vehicle.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the timing drive components.
Refer to: TIMING DRIVE COMPONENTS
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

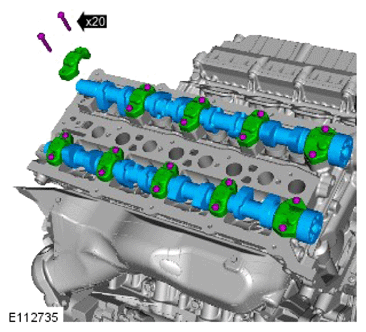

- Rotate the camshafts until all the valves are at their minimum open point.
- Evenly and progressively, release the 20 camshaft bearing caps bolts.
- Remove the 10 camshaft bearing caps, note their position, orientation and markings. Each camshaft bearing cap is marked with its position (number) and an orientation (arrow).
