Oil Pump (G2244091): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the oil pan.
Refer to: OIL PAN
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

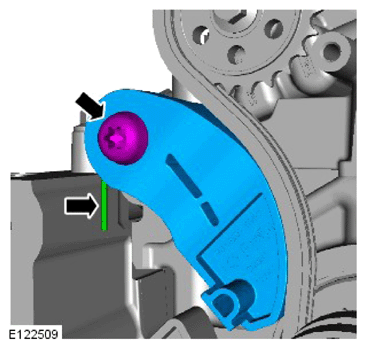

- Remove the bolt.
- Remove the guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

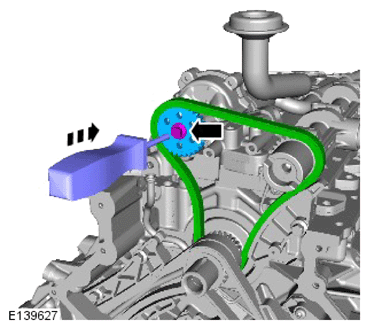

- Using a suitable tool lock the oil pump sprocket in the position illustrated.
- Remove the bolt.
- Remove the oil pump drive sprocket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

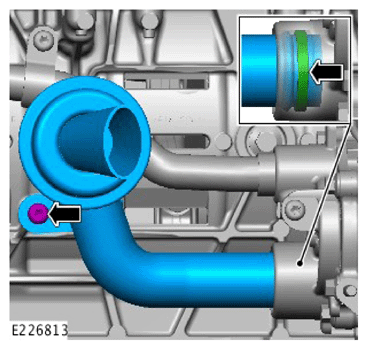

- Remove the bolt.
- Remove the pipe.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

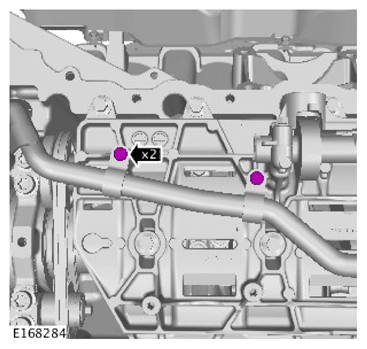

Remove the 2 bolts.

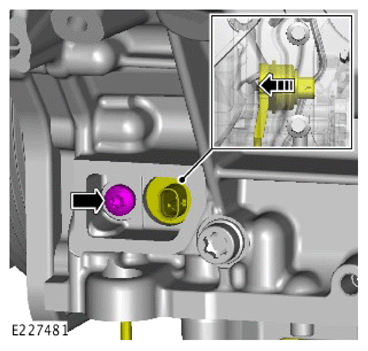

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Release the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

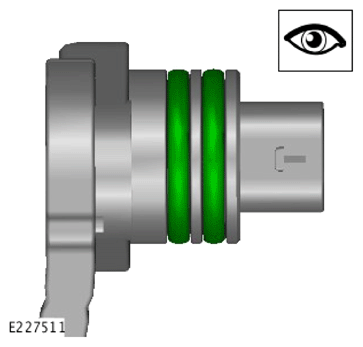

Examine the 2 O-ring seals for damage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

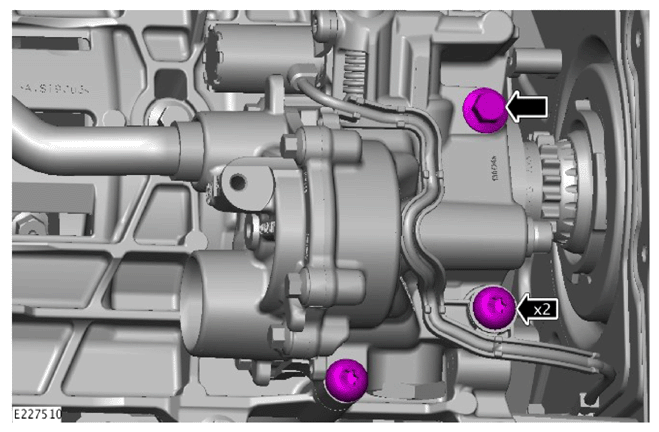

Remove the 3 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

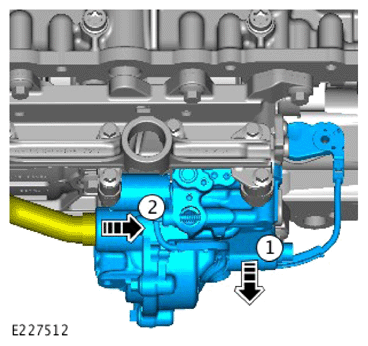

Remove the oil pump assembly as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

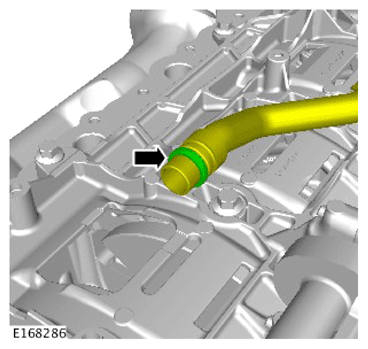

Remove and discard the O-ring seal.
