Oil Pump (G2244091): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

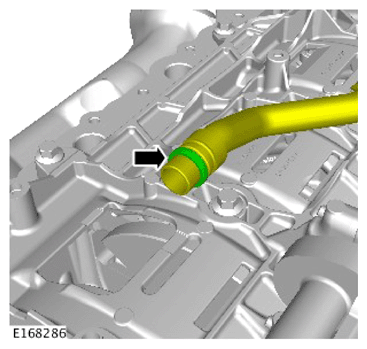

- Lubricate a new O-ring seal with clean engine oil.
  Renew Part: Oil pump inlet tube O-ring seal(s) Quantity: 1 .
- Install the new O-ring seal.
CAUTION: Make sure the O-ring seal is not damaged when installing this component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

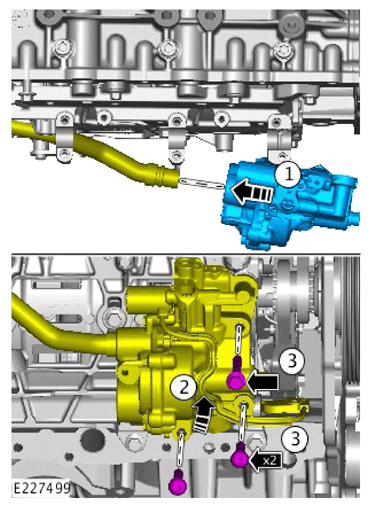

- Connect the pipe to the oil pump assembly.
- Reposition the oil pump assembly in the correct location.
- Install and tighten the 3 bolts.
  Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

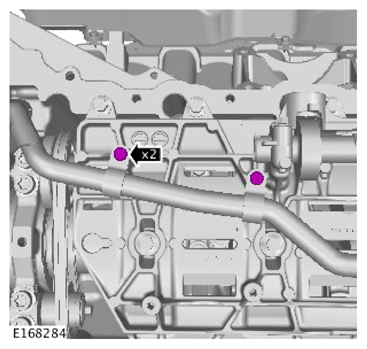

Install and tighten the 2 bolts.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

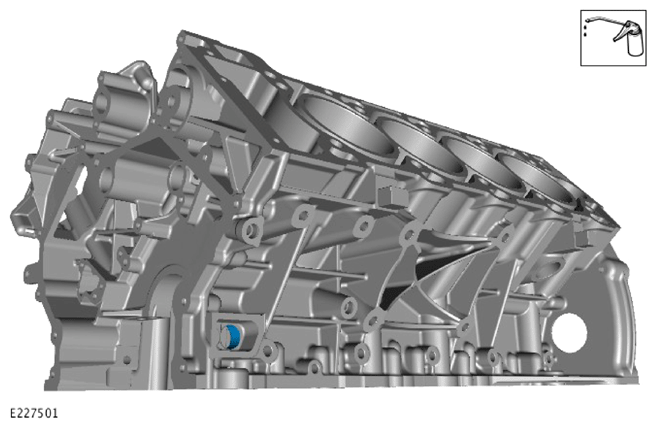

Apply lubricant to the mating face.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

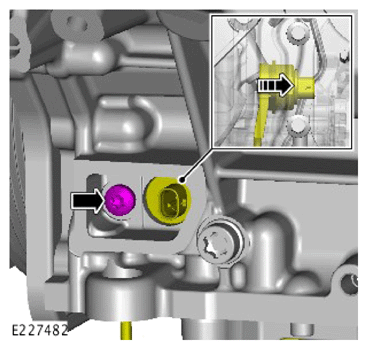

- Install the electrical connector.
- Install and tighten the bolt.
  Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

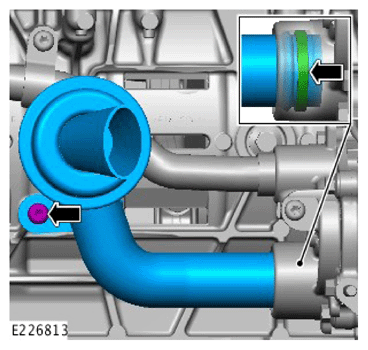

- Lubricate a new O-ring seal with clean engine oil.
  Renew Part: Oil pick up pipe O-ring seal Quantity: 1 .
- Install the new O-ring seal to the pipe.
- Install the pipe.
- Install and tighten the bolt.
  Torque : 12 Nm
CAUTION: Using a suitable tool, lock the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

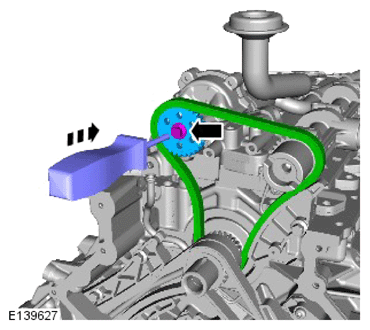

- Install the oil pump drive sprocket.
- Using a suitable tool lock the oil pump drive sprocket in the position illustrated.
- Install and tighten the bolt.
  Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

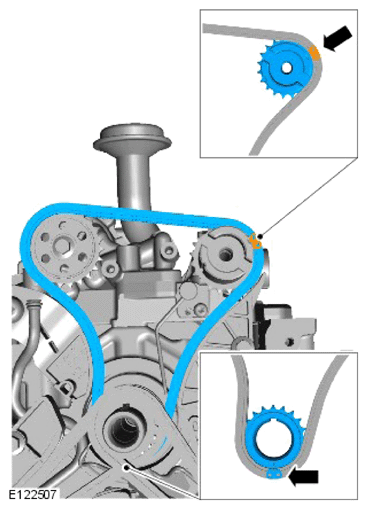

Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pump camshaft and crankshaft sprocket markings.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

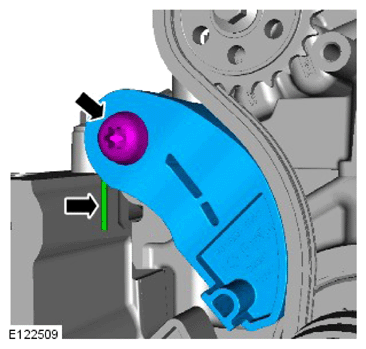

- Install the guide.
- Install and tighten the bolt.
  Torque : 21 Nm
- Make sure that the tensioner spring is correctly located.
Install the oil pan.
Refer to: OIL PAN
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
