Oil Pan (G2244089): Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Always follow the fuel system health and safety precautions, when doing any repairs to the fuel system.

    Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  3. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  4. Drain the engine oil.

    Refer to: ENGINE OIL VACUUM DRAINING AND FILLING

  5. Drain the front differential oil.

    Refer to: DIFFERENTIAL DRAINING AND FILLING

  6. Remove the engine assembly.

    Refer to: ENGINE - AWD - V8 S/C 5.0L PETROL (G2260898)  .

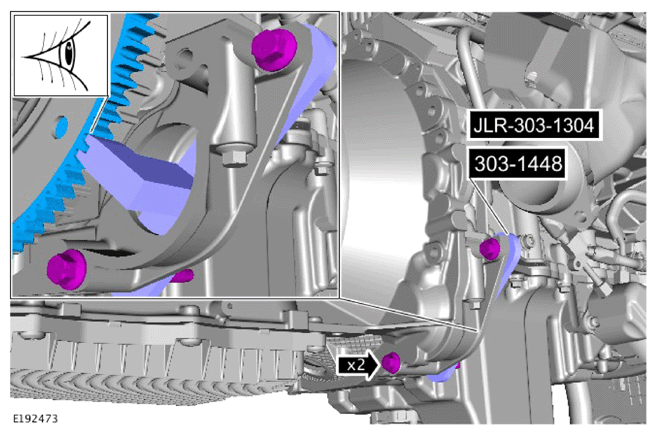

  7. G15618881Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1304

    • Install and tighten the 2 bolts.

      Torque  : 10 Nm

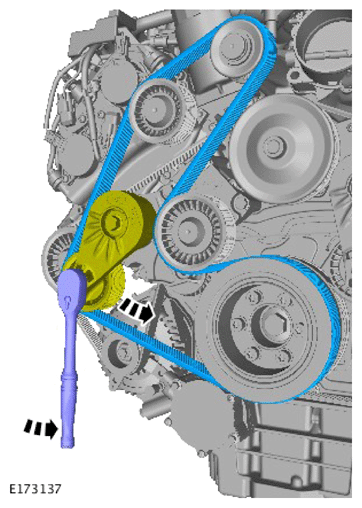

  8. NOTE: Note the installed position of the supercharger belt.
    G15618882Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using a suitable tool release the tension from the supercharger belt.
    • Remove the supercharger belt.

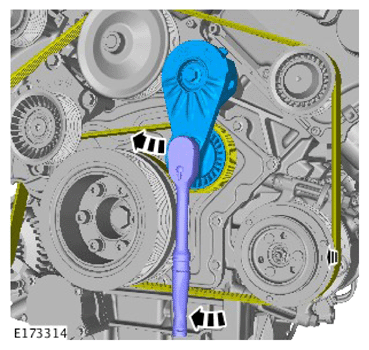

  9. NOTE: Note the installed position of the accessory drive belt.
    G15618883Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using a suitable tool release the tension from the accessory drive belt.
    • Reposition the accessory drive belt away from the crankshaft pulley.

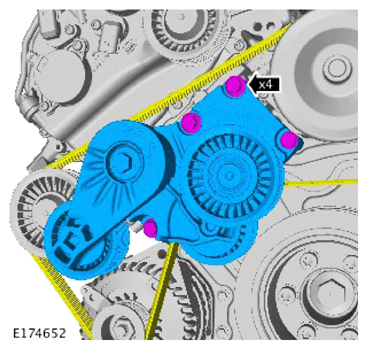

  10. NOTE: Note the installed position of the accessory drive belt.
    G15618884Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 4 bolts and the accessory drive belt tensioner.

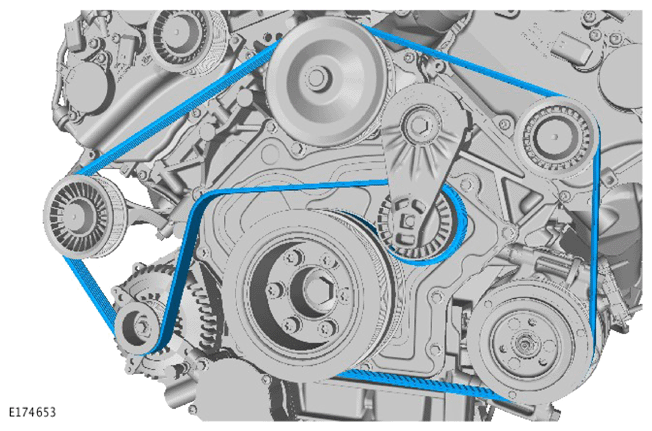

  11. NOTE: Note the installed position of the accessory drive belt.
    G15618885Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the accessory drive belt.

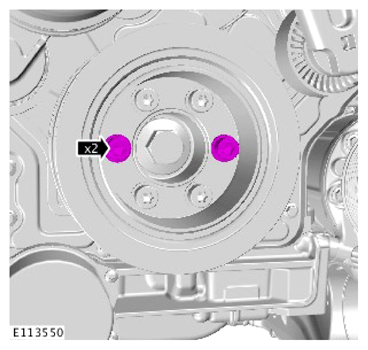

  12. G15618886Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 bolts.

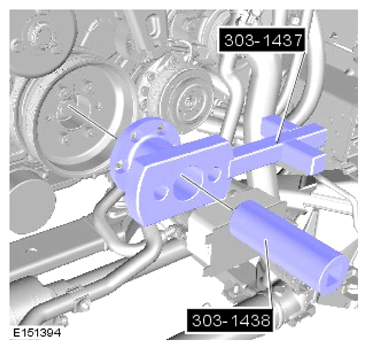

  13. G15618887Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tools as illustrated.

    Special Tool(s): 303-1437  , 303-1438

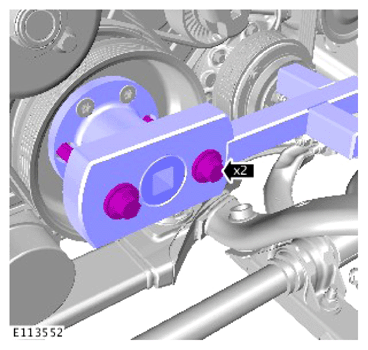

  14. G15618888Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 2 bolts.

    Torque  : 25 Nm

  15. G15618889Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the special tool.

      Special Tool(s): JLR-303-1304

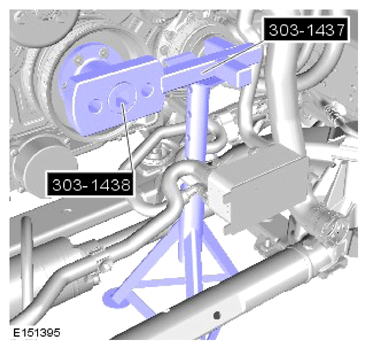

  16. G15618890Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable axle stand, support the special tools.

    Special Tool(s): 303-1437  , 303-1438

    General Equipment: Axle stands

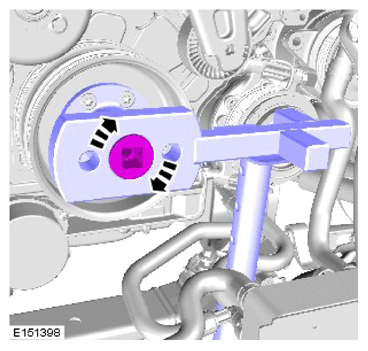

  17. NOTE: The crankshaft pulley bolt will be very tight.
    G15618891Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to remove the crankshaft pulley bolt.

  18. G15618892Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1304

    • Install and tighten the 2 bolts.

      Torque  : 10 Nm

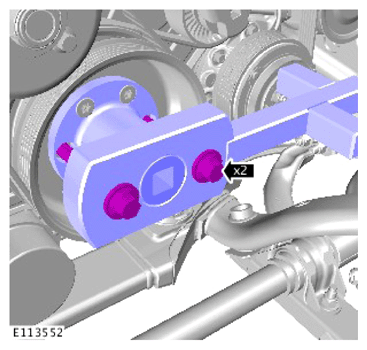

  19. G15618893Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts from the special tool.
  20. G15618894Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tools.

    Special Tool(s): 303-1437  , 303-1438

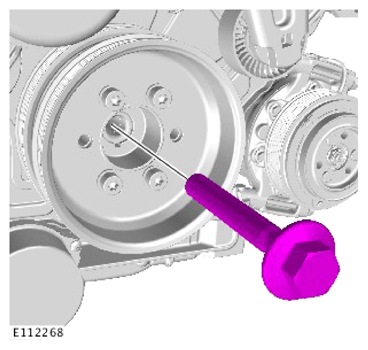

  21. G15618895Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the bolt.

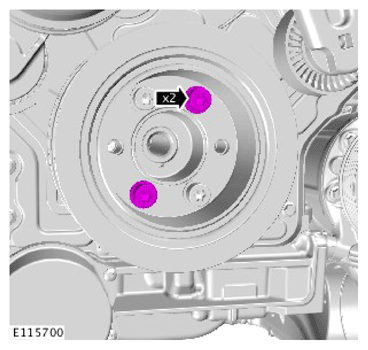

  22. G15618896Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 bolts.

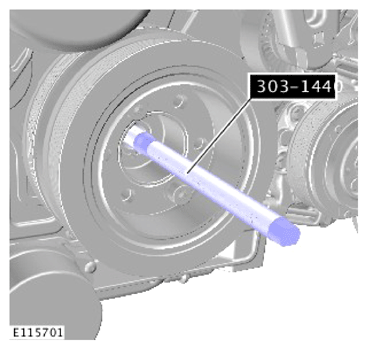

  23. G15618897Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): 303-1440

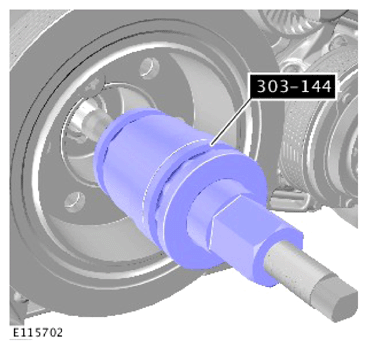

  24. G15618898Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): 303-1441

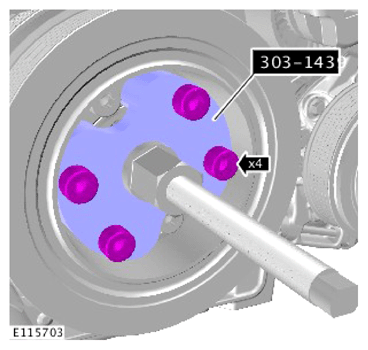

  25. G15618899Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): 303-1439

    • Install and tighten the 4 bolts.

      Torque  : 25 Nm

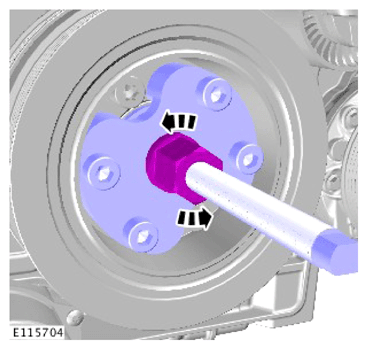

  26. G15618900Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable tool rotate the special tool counter clockwise.

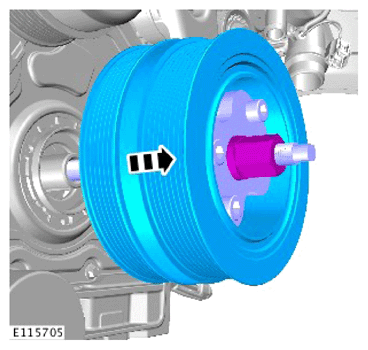

  27. NOTE: Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.
    G15618901Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the crankshaft pulley.

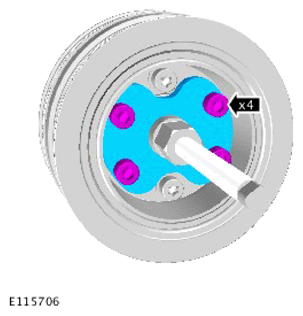

  28. G15618902Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the special tool from the crankshaft pulley.

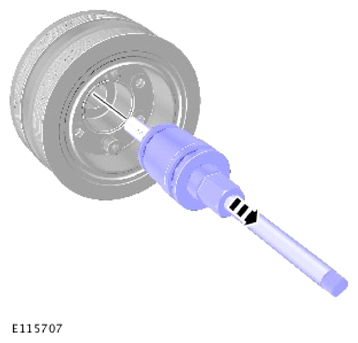

  29. G15618903Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool from the crankshaft pulley.

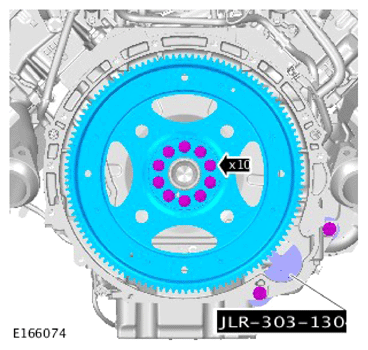

  30. CAUTION: The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    G15618904Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool as illustrated.

      Special Tool(s): JLR-303-1304

      Torque  : 10 Nm

    • Remove the 10 drive plate bolts.
    • Remove the drive plate.

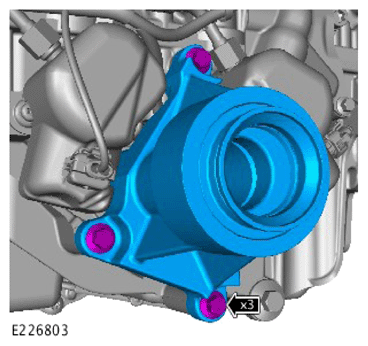

  31. G15618905Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the front halfshaft support bearing.

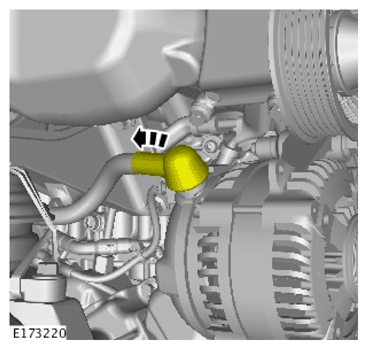

  32. G15618906Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the protective cover away from the generator positive cable.

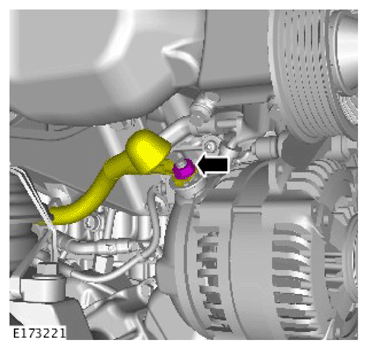

  33. G15618907Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the nut and reposition the positive cable away from the generator.

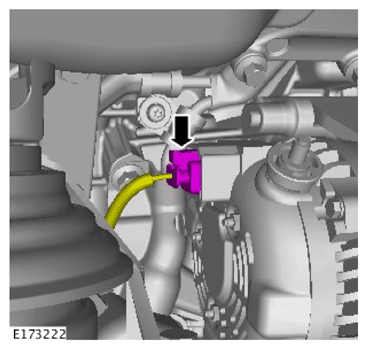

  34. G15618908Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the generator electrical connector.

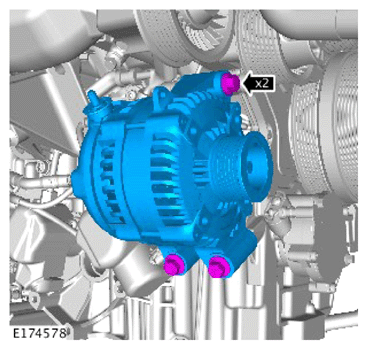

  35. G15618909Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the generator.

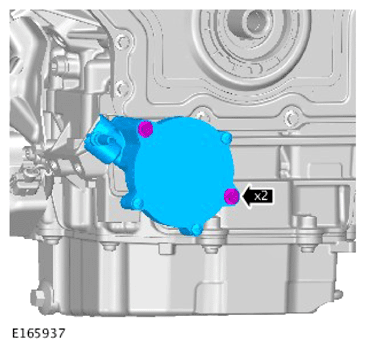

  36. G15618910Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the vacuum pump.

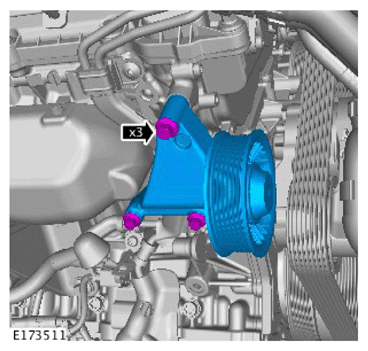

  37. G15618911Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the idle pulley.

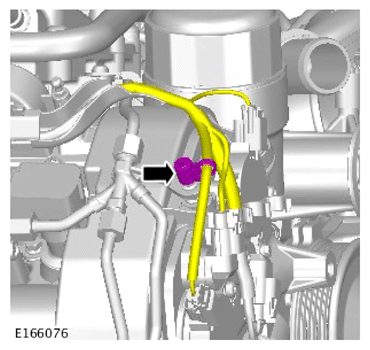

  38. G15618912Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the wiring harness clip.

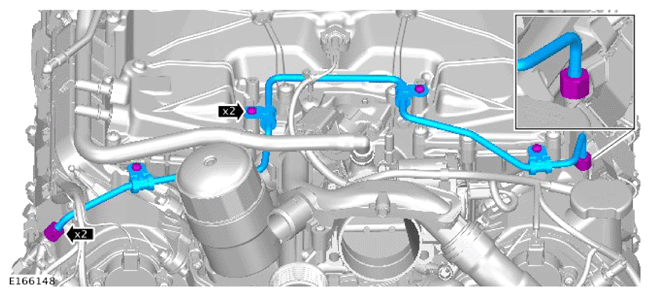

  39. CAUTION: Be prepared to collect escaping fuel.
    G15618913Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Release the 2 unions and remove the fuel rail crossover line.

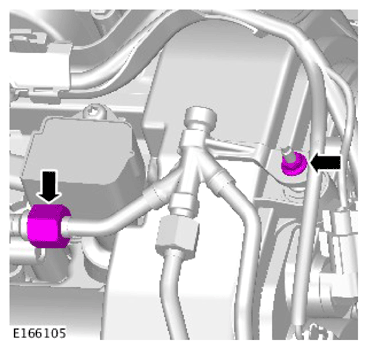

  40. CAUTION: Be prepared to collect escaping fuel.
    G15618914Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the union.
    • Remove the nut.

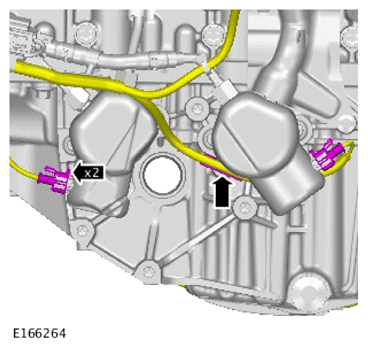

  41. G15618915Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 fuel pump electrical connectors.
    • Release the wiring clip and reposition away from the oil pan.

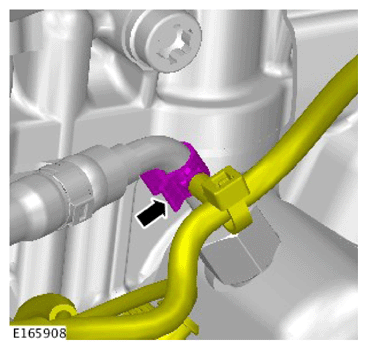

  42. G15618916Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the wiring harness clip.

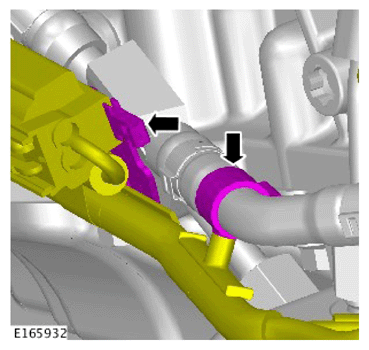

  43. G15618917Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 2 wiring harness clips.

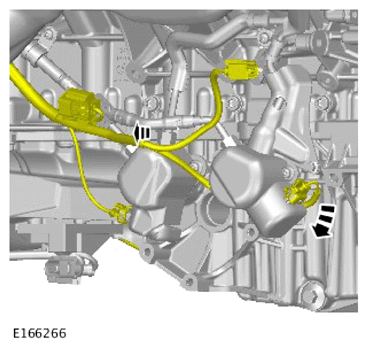

  44. G15618918Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the wiring harness away from the oil pan.

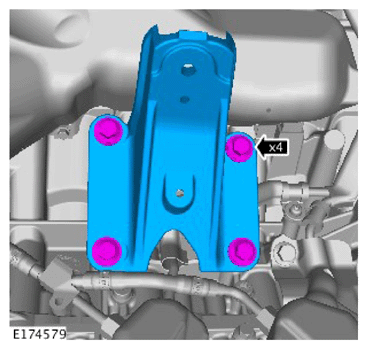

  45. G15618919Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the engine mount bracket.

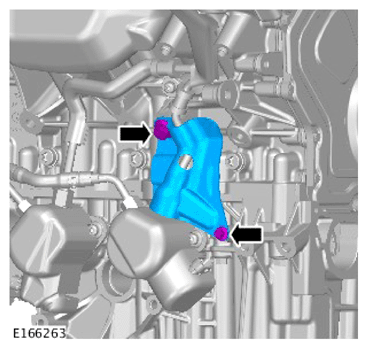

  46. G15618920Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the cover from the fuel pump.

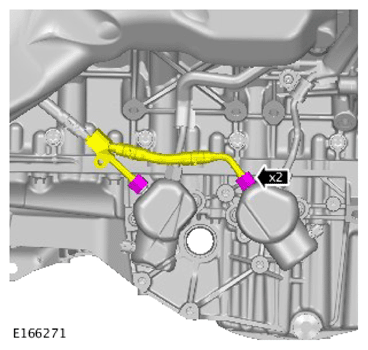

  47. CAUTION: Be prepared to collect escaping fuel.
    G15618921Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 2 unions and reposition the fuel delivery lines away from the fuel pumps.

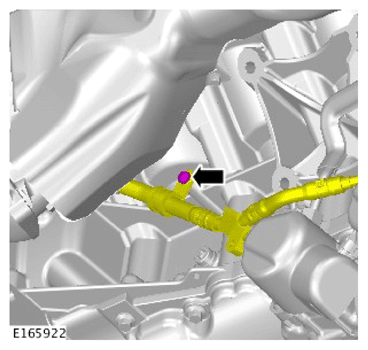

  48. G15618922Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove bolt and reposition the fuel delivery lines away from the oil pan.

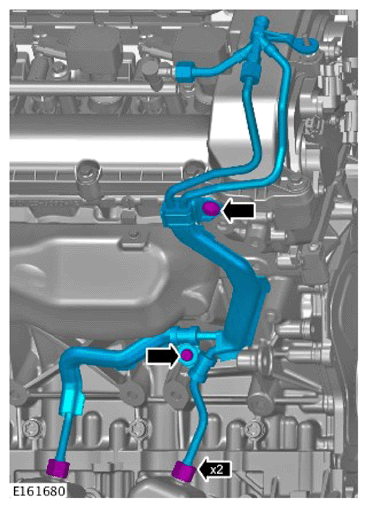

  49. CAUTION: Be prepared to collect escaping fuel.
    G15618923Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts from the High Pressure (HP) fuel pump lines.
    • Release the 2 unions.
    • Remove and discard the HP fuel pump lines.

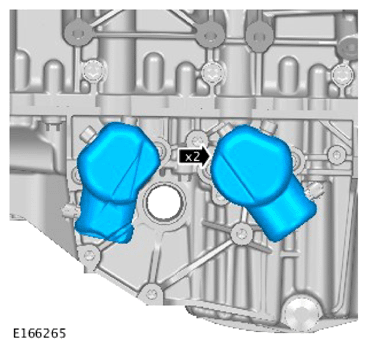

  50. G15618924Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the covers from the HP fuel pumps.

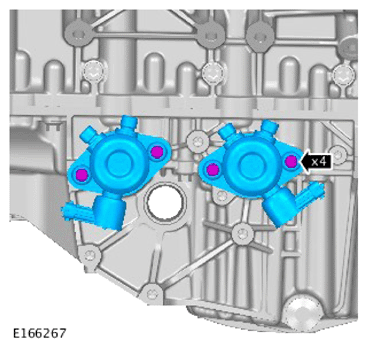

  51. CAUTION: Be prepared to collect escaping oil.
    G15618925Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the 2 HP fuel pumps.

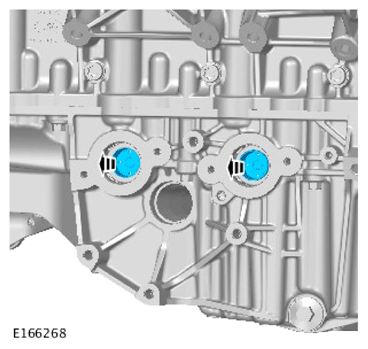

  52. NOTE: Be prepared to collect escaping oil.
    G15618926Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 fuel pump tappets from the oil pan assembly.

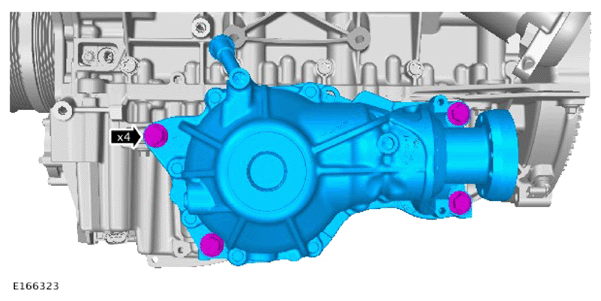

  53. G15618927Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the front differential assembly.

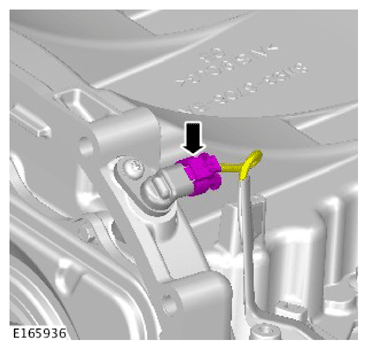

  54. G15618928Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the Crankshaft Position (CKP) sensor electrical connector.

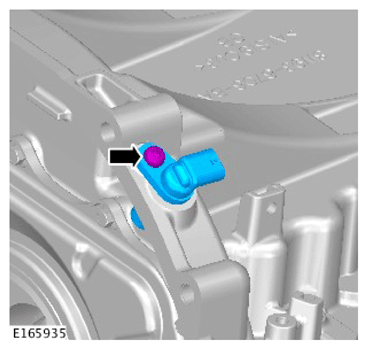

  55. G15618929Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the CKP sensor.

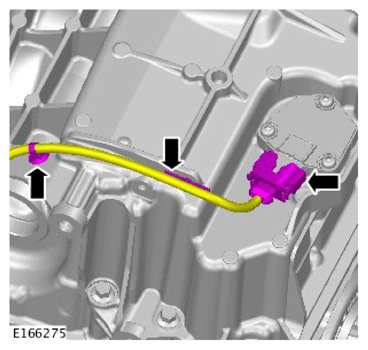

  56. G15618930Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the oil level sensor electrical connector.
    • Release the 2 wiring harness clips.
    • Reposition the wiring harness away from the oil pan.

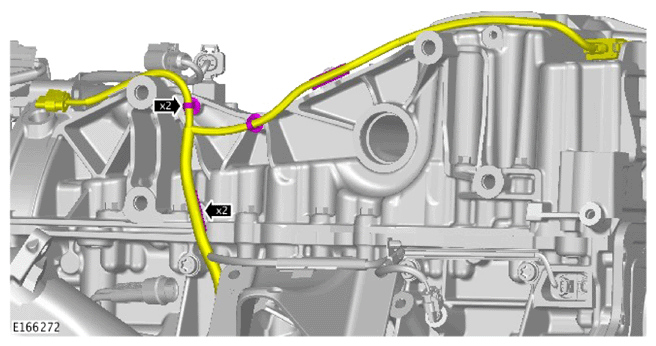

  57. G15618931Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 4 wiring harness clips.
    • Reposition the wiring harness away from the oil pan.

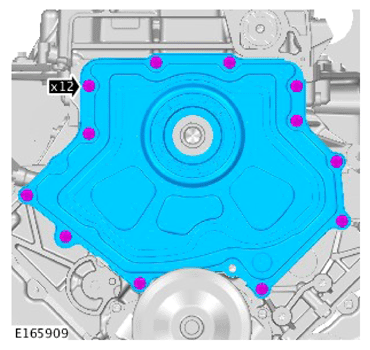

  58. CAUTION: Discard the component.
    G15618932Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 12 bolts.
    • Remove and discard the front cover.

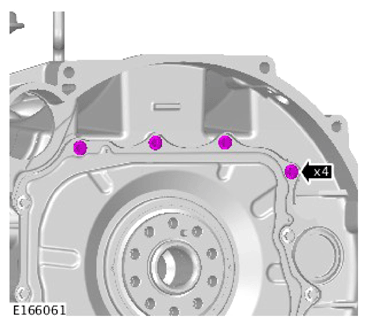

  59. G15618933Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 4 bolts from the rear of the cylinder block.

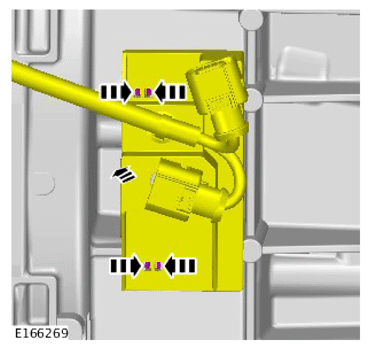

  60. G15618934Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the wiring harness bracket as illustrated and reposition away from the oil pan.

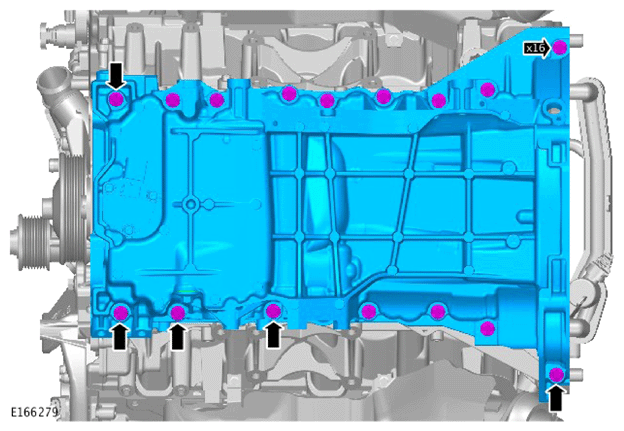

  61. NOTE: Note the position of the bolts indicated prior to removal.
    G15618935Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 16 bolts from the oil pan.

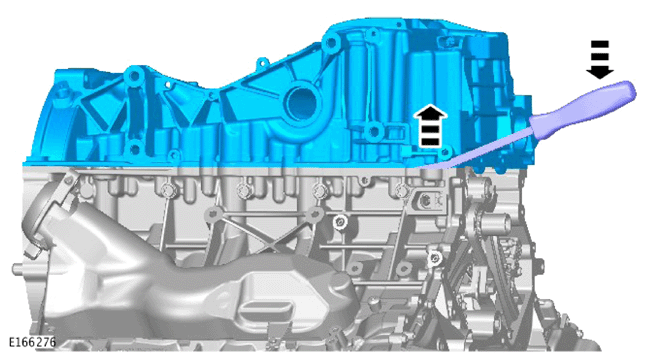

  62. NOTE: Make sure to use the aluminium lug provided on the oil pan to lever against.
    G15618936Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable tool lever the oil pan assembly from the cylinder block.

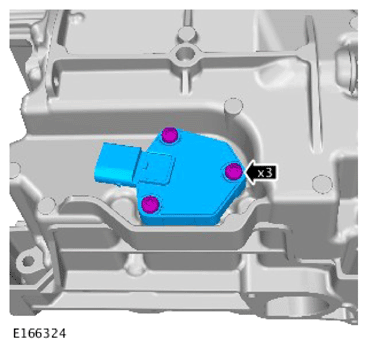

  63. NOTE: Do not disassemble further if the component is removed for access only.
    G15618937Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the oil level sensor.
    • Remove and discard the oil level sensor O-ring seal.
