Oil Cooler (G2244086): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the supercharger.
Refer to: SUPERCHARGER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

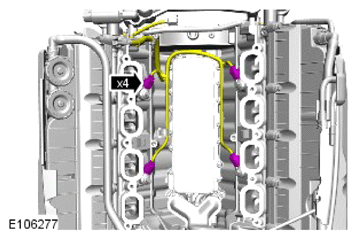

Disconnect the 4 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

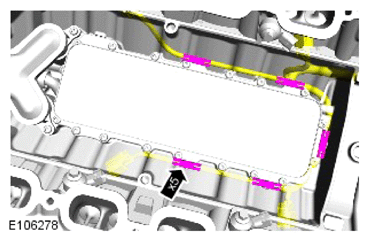

- Release the 5 wiring harness clips.
- Reposition the wiring harness away from the oil cooler.
WARNING:
- Be prepared to collect escaping oil.
- Be prepared to collect escaping coolant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

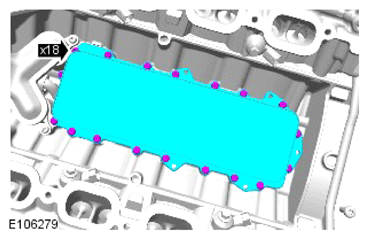

Remove the 18 bolts from the oil cooler.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

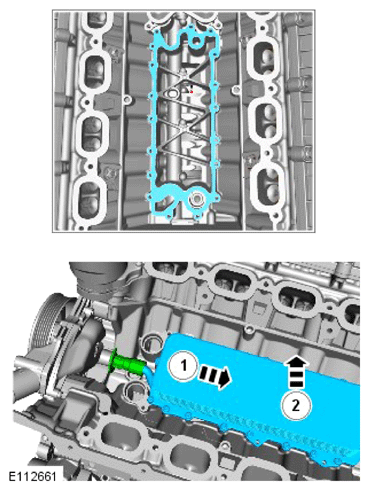

- Release the coolant pipe connector.
- Remove the oil cooler from the vehicle following the illustrated sequence.
- Remove and discard the oil cooler gasket.
NOTE: Note the fitted position of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

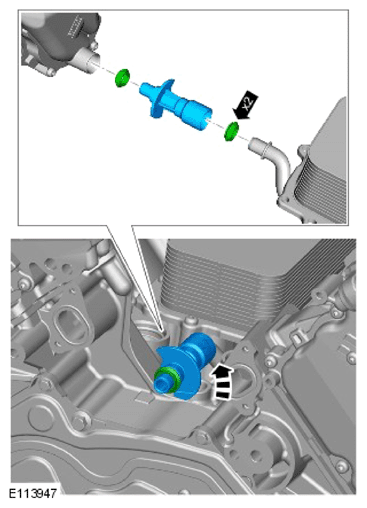

- Remove the coolant pipe connector.
- Remove and discard the coolant pipe connector O-ring seals.
