Left Exhaust Manifold (G2263554): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the left catalytic converter.
Refer to: LEFT CATALYTIC CONVERTER
Remove the Air Conditioning (A/C) compressor.
Refer to: AIR CONDITIONING COMPRESSOR - INGENIUM I6 3.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

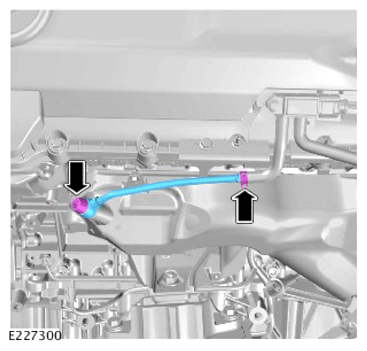

- Remove the bolt.
- Release the hose clamp.
- Remove and discard the Gasoline Particulate Filter (GPF) pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

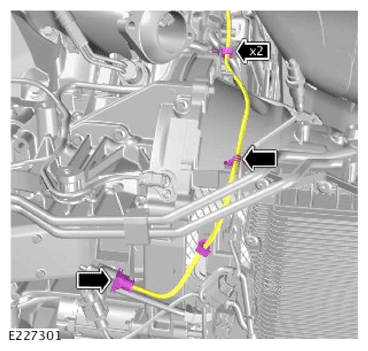

- Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.
- Release the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

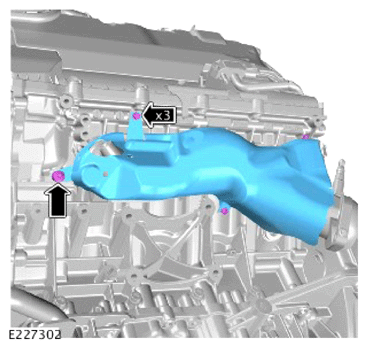

- Remove the 4 bolts.
- Remove the left exhaust manifold heatshield.
NOTE: Note the installed position of the component(s) are prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

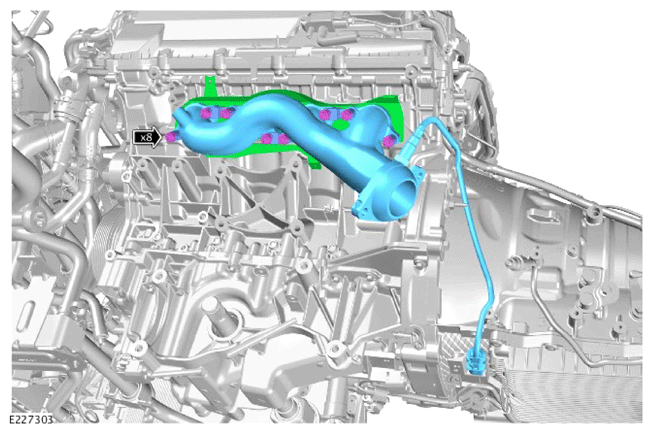

- Remove the 8 bolts.
- Remove the 8 spacers.
- Remove the left exhaust manifold.
- Remove and discard the exhaust manifold gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

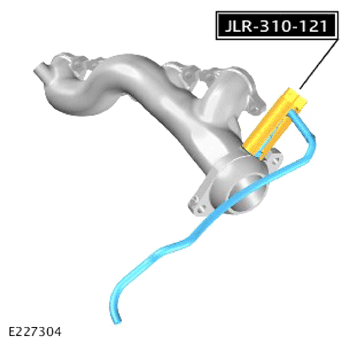

- Install the special tool.
  Special Tool(s): 310-121
- Remove the HO2S.
