Left Engine Mount (G2271575): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

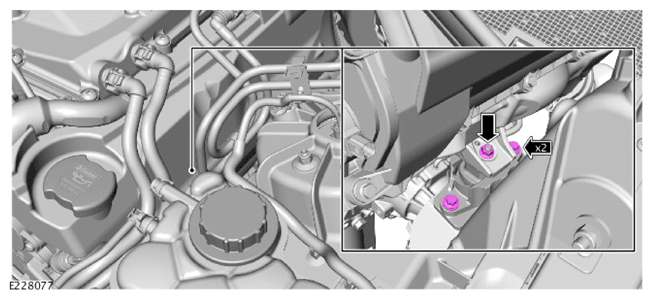

- Remove the left engine mount nut.
- Remove the 2 left engine mount bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

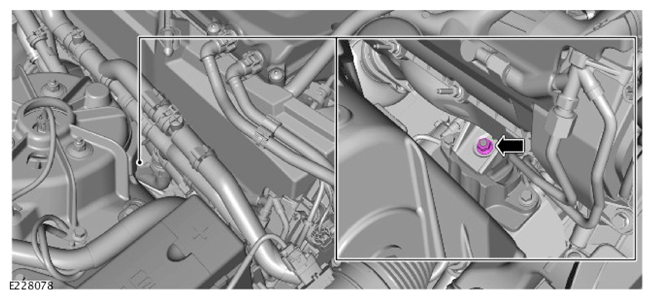

- Remove the right engine mount nut.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - V8 S/C 5.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

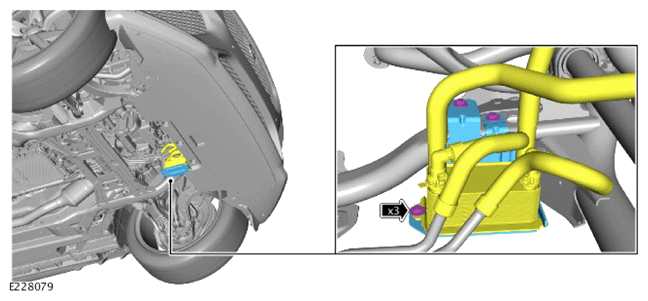

- Remove the automatic transmission fluid cooler bolt.
- Reposition the automatic transmission fluid cooler.
- Remove the 2 bracket bolts.
- Remove the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

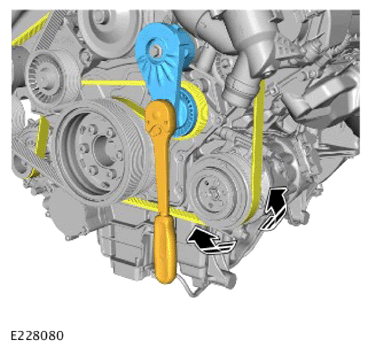

Release the accessory drive belt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

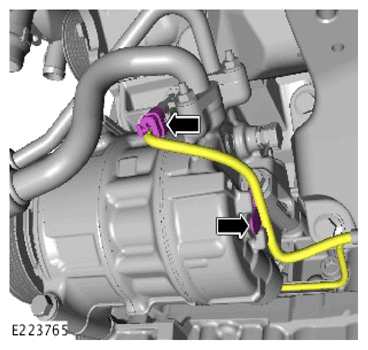

- Release the wiring harness clip.
- Disconnect the Air Conditioning (A/C) compressor electrical connector.
CAUTION: Make sure that there is no tension on the Air Conditioning (A/C) pipes when the A/C compressor bolts are removed. Use suitable equipment to support the A/C compressor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

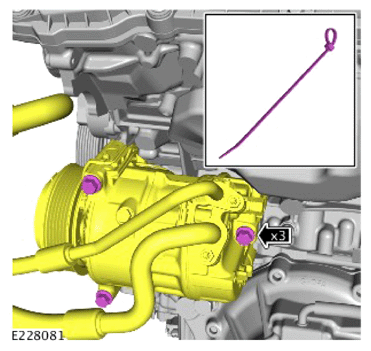

- Remove the 3 bolts.
- Reposition and support the Air Conditioning (A/C) compressor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

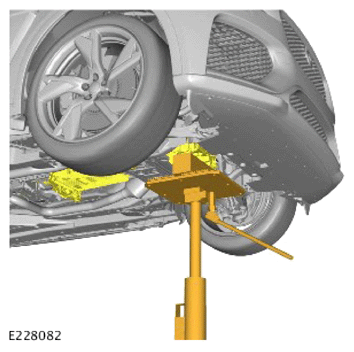

With a suitable tool, raise and support the engine to allow mount removal.

General Equipment: Engine hoist (1 tonne minimum capacity)

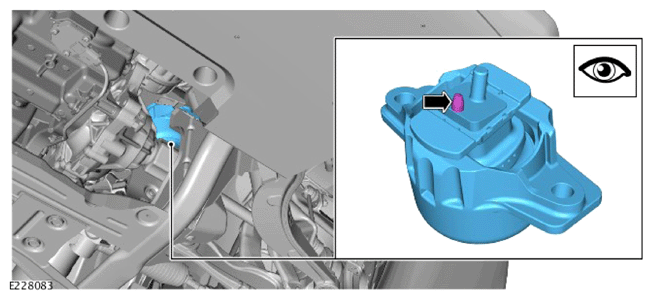

WARNING: Note the orientation of the engine mount prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the left engine mount.
