Fuel Pump Camshaft (G2244084): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Some illustrations may show the engine removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.

The following step(s) applies to:

All vehicles

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

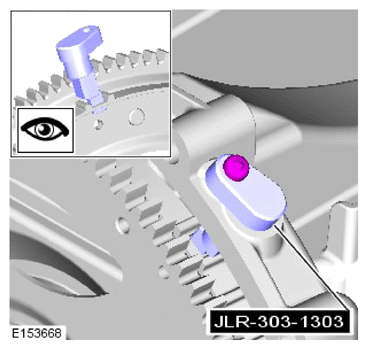

Special Tool(s): JLR-303-1303

The following step(s) applies to:

Vehicles with rear wheel drive (RWD)
Refer to: OIL PAN EXTENSION
The following step(s) applies to:

Vehicles with all wheel drive (AWD)
Refer to: OIL PAN
The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

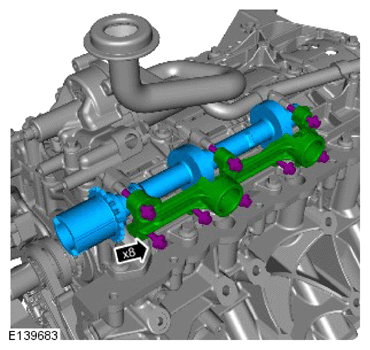

CAUTION: Take extra care when removing the component, prevent damage to the mating faces.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
