Fuel Pump Camshaft (G2244084): Installation

The following step(s) applies to:

All vehicles

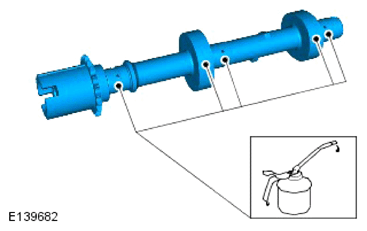

1. CAUTION: Make sure that the mating faces are clean and free of foreign material.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

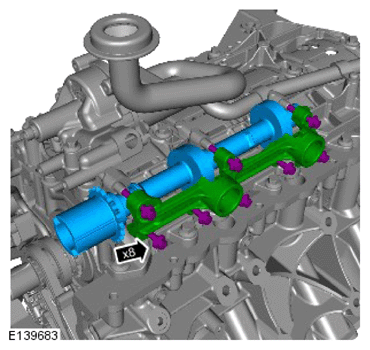

2. CAUTION: Take extra care not to damage the mating faces.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 12 Nm

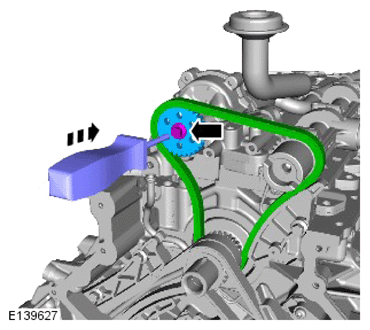

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 21 Nm

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 12 Nm

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

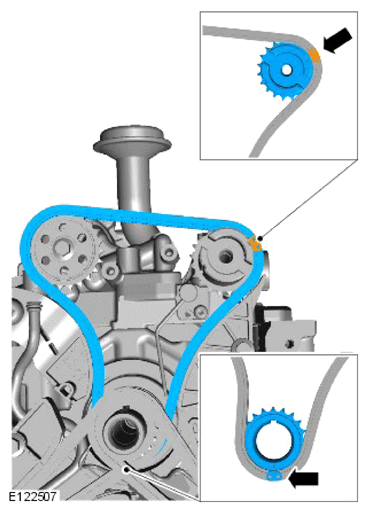

   • Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.

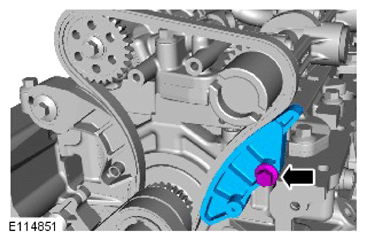

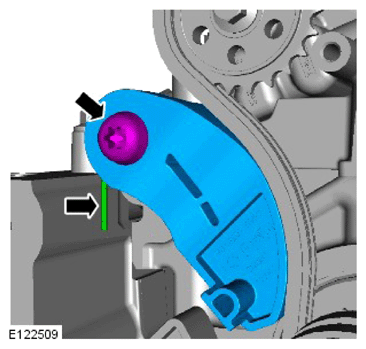

6. CAUTION: Make sure that the tensioner spring is correctly located.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 21 Nm

   The following step(s) applies to:

   Vehicles with all wheel drive (AWD)

7. Refer to: OIL PAN

   The following step(s) applies to:

   Vehicles with rear wheel drive (RWD)

8. Refer to: OIL PAN EXTENSION

   The following step(s) applies to:

   All vehicles

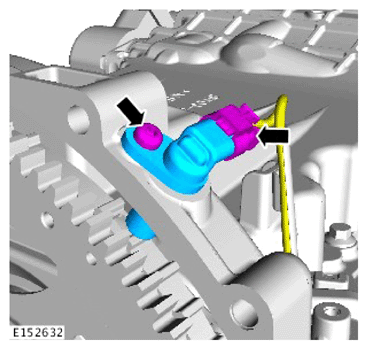

9. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 10 Nm

10. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
