Drive Plate (G2246997): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  3. Remove the transmission assembly.

    Refer to the appropriate service information. .

  4. CAUTION: The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.

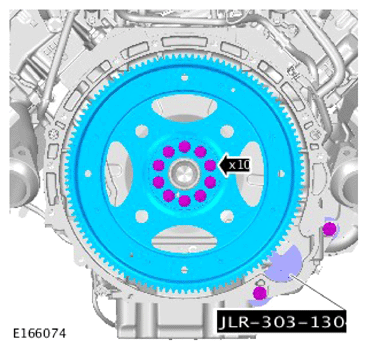

    G15619272Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool as illustrated. Tighten the 2 bolts on the special tool to the correct torque.

      Special Tool(s): JLR-303-1304

      Torque  : 10 Nm

    • Release the 10 bolts on the drive plate and remove the drive plate.
