Drive Plate (G2246997): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure the crankshaft and drive plate mating faces are clean before installation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

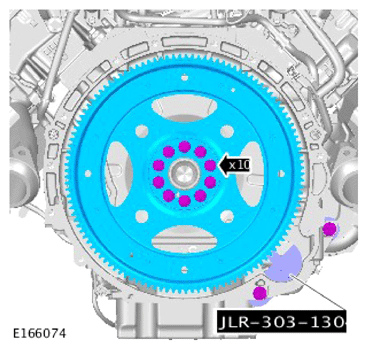

- Install the drive plate in the correct position and tighten the 10 bolts to the correct torque.
  Torque

  Stage 1: 45 Nm

  Stage 2: 90°
- Release the 2 bolts from the special tool and remove the special tool.
  Special Tool(s): JLR-303-1304
Install the transmission assembly.
Refer to the appropriate service information. .
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
