Crankshaft Rear Seal (G2244072): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  3. Remove the drive plate.

    Refer to: DRIVE PLATE

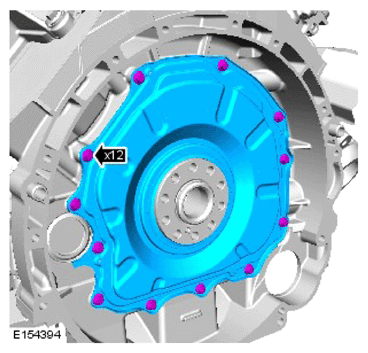

  4. G15618680Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 12 bolts from the crankshaft rear oil seal.
    • Remove and discard the crankshaft rear oil seal.
