Crankshaft Pulley (G2247133): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the cooling fan.
Refer to: ELECTRIC COOLING FAN AND SHROUD
Remove the starter motor.
Refer to: STARTER MOTOR

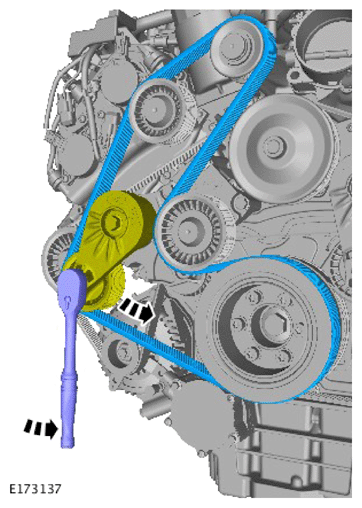

NOTE: Note the fitted position of the supercharger belt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using a suitable tool release the tension from the supercharger belt tensioner assembly.
- Remove the supercharger belt.

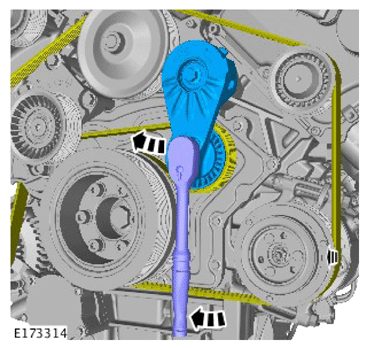

NOTE: Note the fitted position of the accessory drive belt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using a suitable tool release the tension from the accessory drive belt tensioner.
- Reposition the accessory drive belt away from the crankshaft pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

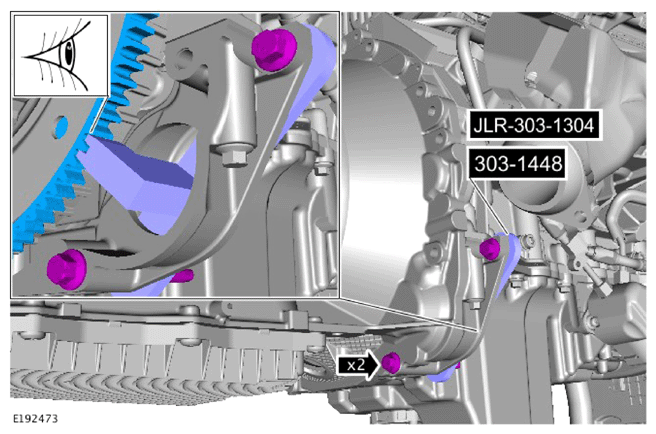

- Install the special tool.
  Special Tool(s): JLR-303-1304 , 303-1448
- Install and tighten the 2 special tool bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

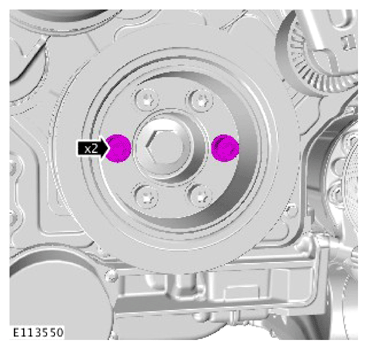

Remove the 2 crankshaft pulley bolts as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tools as illustrated.

Special Tool(s): 303-1437 , 303-1438
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

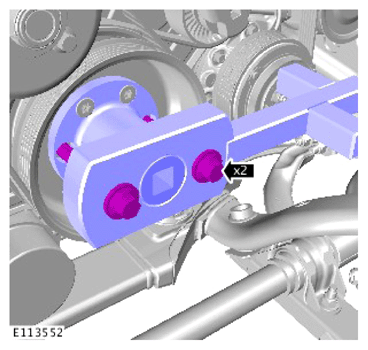

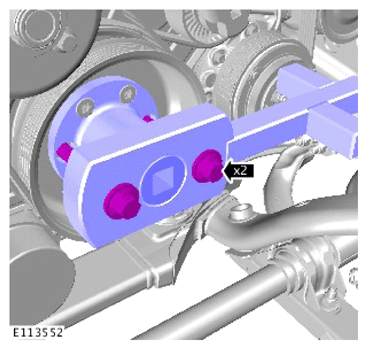

Install and tighten the 2 special tool bolts.

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 special tool bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1304 , 303-1448
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

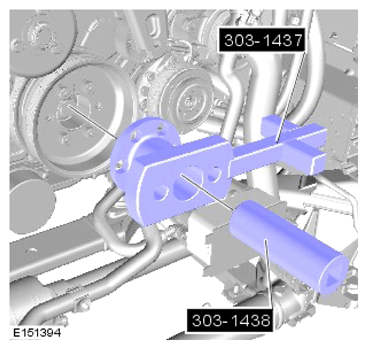

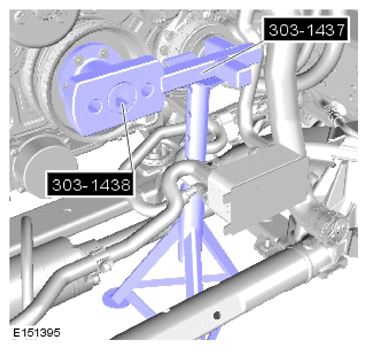

Using a suitable axle stand, support the special tools.

Special Tool(s): 303-1437 , 303-1438

General Equipment: Axle stands
NOTE: The crankshaft pulley bolt will be very tight.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

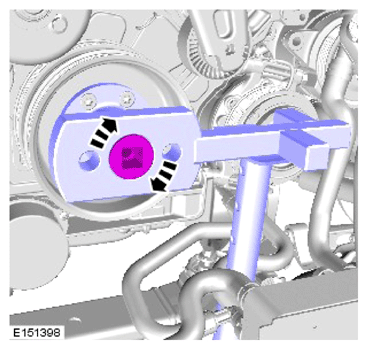

With the aid of the special tool remove the crankshaft pulley bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): JLR-303-1304 , 303-1448
- Install and tighten the 2 special tool bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the two bolts from the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tools.

Special Tool(s): 303-1437 , 303-1438
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the crankshaft pulley bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

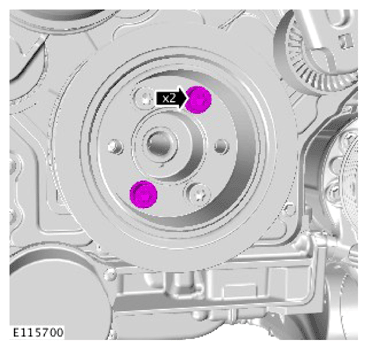

Remove the 2 crankshaft pulley bolts as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

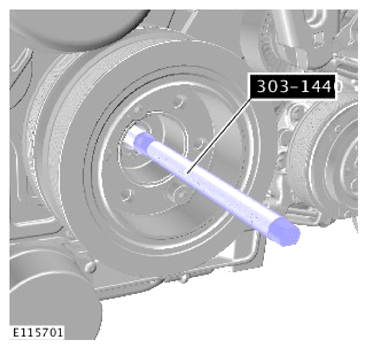

Install the special tool.

Special Tool(s): 303-1440
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

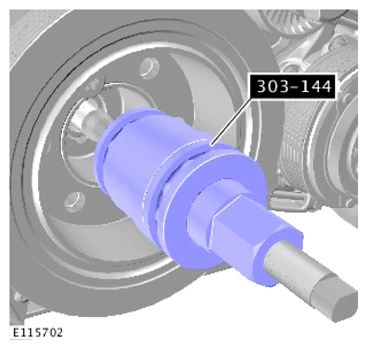

Install the special tool.

Special Tool(s): 303-1441
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

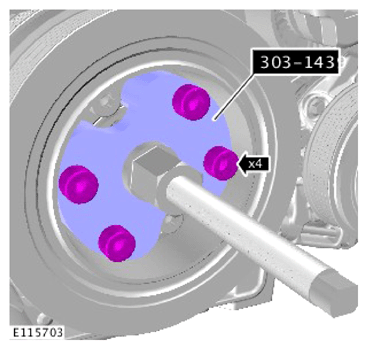

- Install the special tool.
  Special Tool(s): 303-1439
- Tighten the 4 special tool bolts.
  Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

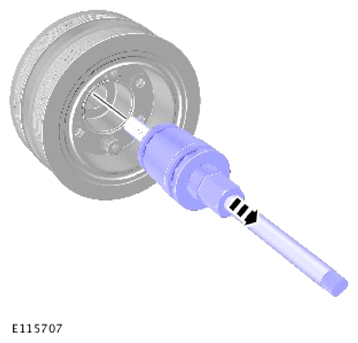

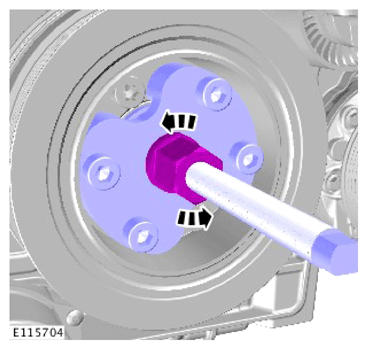

Using a suitable tool rotate the special tool as illustrated in the direction illustrated.
NOTE: Make sure to clean the threads in the end of the crankshaft and that the end of the crankshaft is free of any foreign materials.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

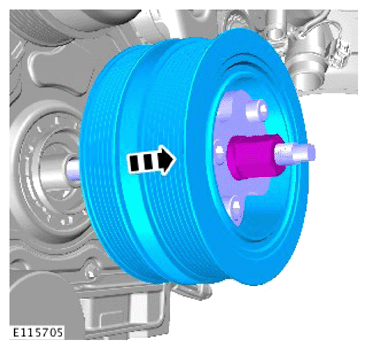

Remove the crankshaft pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

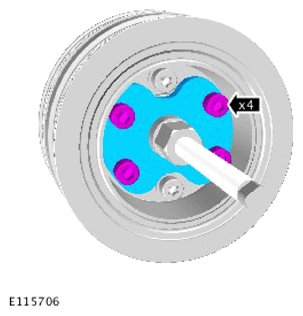

- Remove the 4 bolts from the special tool.
- Remove the special tool from the crankshaft pulley.
  Special Tool(s): 303-1439
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool from the crankshaft pulley.

Special Tool(s): 303-1441
