Crankshaft Pulley (G2247133): Installation

WARNING: This page is about a different variant/trim than selected.

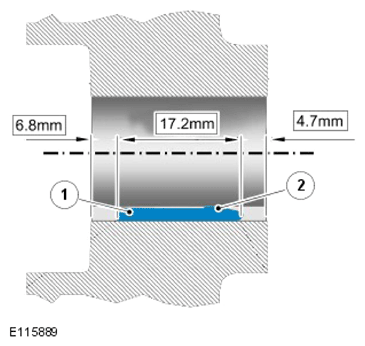

  1. G15618641Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Apply RTV sealant to the crankshaft pulley keyway.

      Refer to: SPECIFICATIONS

    • Make sure that the RTV sealant is applied in a 2 mm diameter bead.
    • Make sure that the RTV sealant is applied level with the top of the keyway.
  2. NOTE: Make sure to clean the threads in the end of the crankshaft and that the end of the crankshaft is free of any foreign materials.

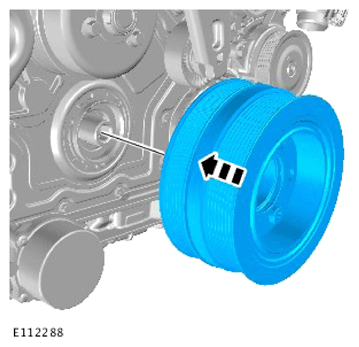

    G15618642Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the crankshaft pulley.
  3. G15618643Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): 303-1440

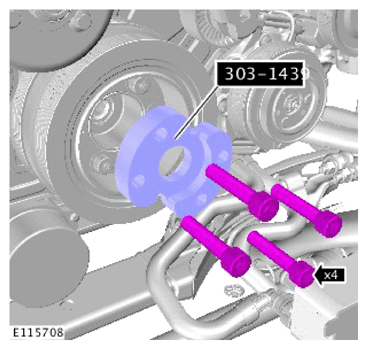

  4. G15618644Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): 303-1439

    • Tighten the 4 special tool bolts.

      Torque  : 25 Nm

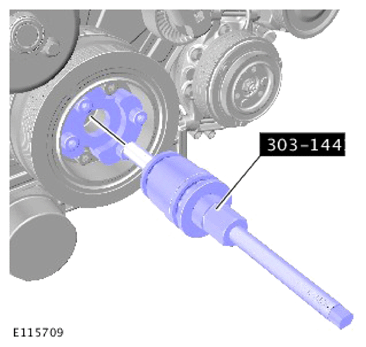

  5. G15618645Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): 303-1441

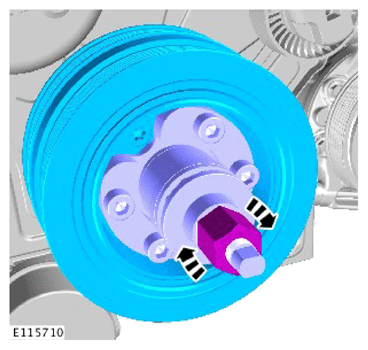

  6. G15618646Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Rotate the crankshaft pulley installation tool until the crankshaft pulley is fully located.
    • Make sure the special tool is not over tightened, as this may result in damage to the components.
  7. G15618647Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

    Special Tool(s): 303-1441

  8. G15618648Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts from the special tool.
    • Remove the special tool from the crankshaft pulley.

      Special Tool(s): 303-1439

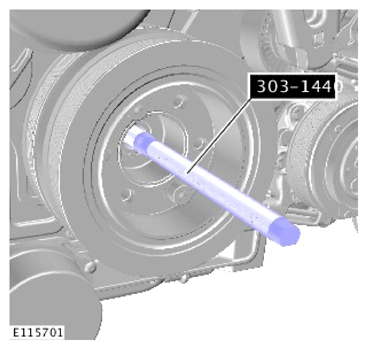

  9. G15618649Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

    Special Tool(s): 303-1440

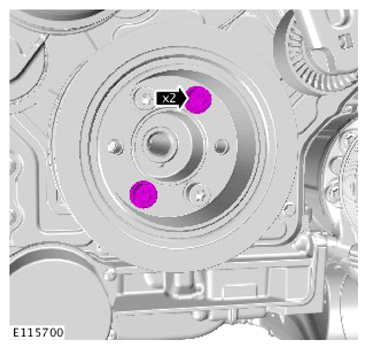

  10. NOTE: The original M10 bolts can be reused.
    G15618650Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Clean the original crankshaft pulley bolts and apply loctite 270 to the threads before installation.

      Refer to: SPECIFICATIONS

    • Install and tighten the 2 crankshaft pulley bolts as illustrated.

      Torque  : 65 Nm

  11. G15618651Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the new crankshaft pulley bolt finger tight at this stage.

    Renew Part: Crankshaft pulley bolt Quantity: 1 .

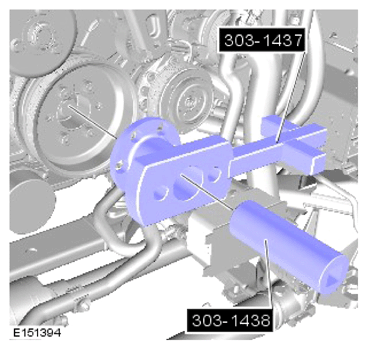

  12. G15618652Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tools.

    Special Tool(s): 303-1437  , 303-1438

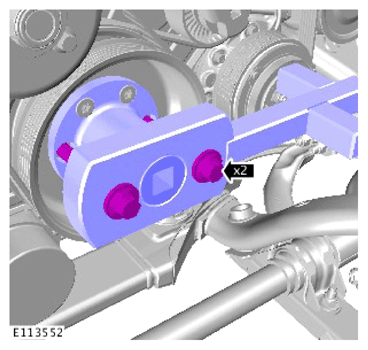

  13. G15618653Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 2 special tool bolts.

    Torque  : 25 Nm

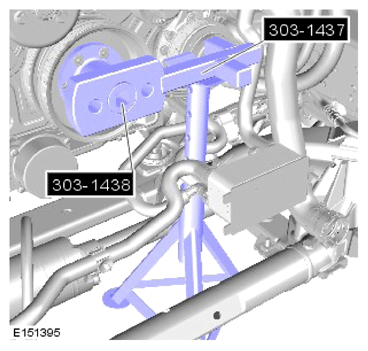

  14. G15618654Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable axle stand, support the special tools.

    Special Tool(s): 303-1437  , 303-1438

    General Equipment: Axle stands

  15. G15618655Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 special tool bolts.
    • Remove the special tool.

      Special Tool(s): JLR-303-1304  , 303-1448

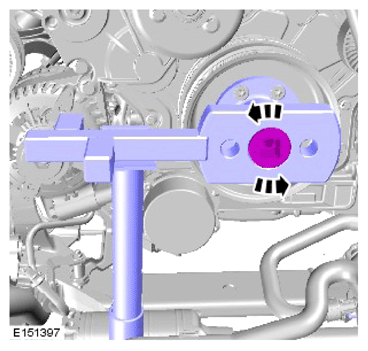

  16. NOTE:
    • The use of a torque multiplier capable of 600 Nm will be required.
    • The illustration shows the tool positioning for LH threaded crankshaft damper bolts, RH threaded crankshaft bolts will require the tool position to be the opposite direction.
    G15618656Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the crankshaft pulley bolt. Make sure that the socket is turned through 270 degrees not the torque wrench.

    Torque

    Stage 1: 200 Nm

    Stage 2: 270°

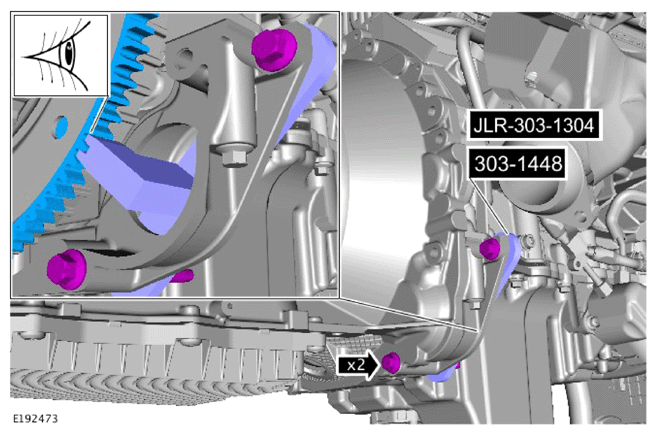

  17. G15618657Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1304  , 303-1448

    • Install and tighten the 2 special tool bolts.

      Torque  : 10 Nm

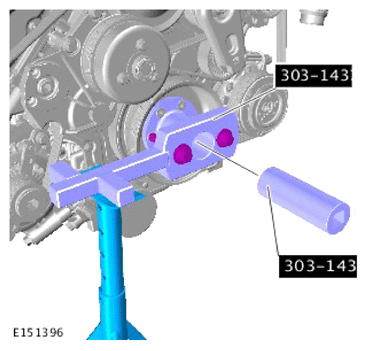

  18. G15618658Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 special tool bolts.
    • Remove the special tools.

      Special Tool(s): 303-1437  , 303-1438

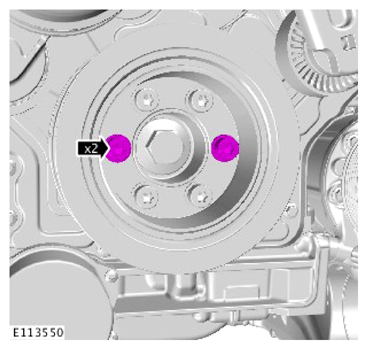

  19. NOTE:
    • The original M10 bolts can be reused.
    • The original M10 bolts can be reused.
    G15618659Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Clean the original crankshaft pulley bolts and apply loctite 270 to the threads before installation.

      Refer to: SPECIFICATIONS

    • Install and tighten the 2 crankshaft pulley bolts as illustrated.

      Torque  : 65 Nm

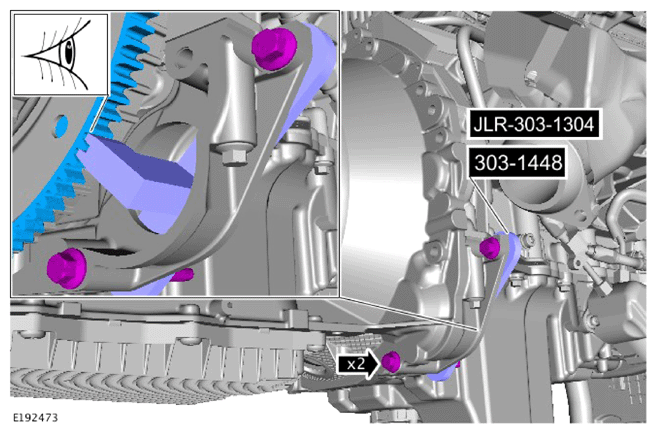

  20. G15618660Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 special tool bolts.
    • Remove the special tool.

      Special Tool(s): JLR-303-1304

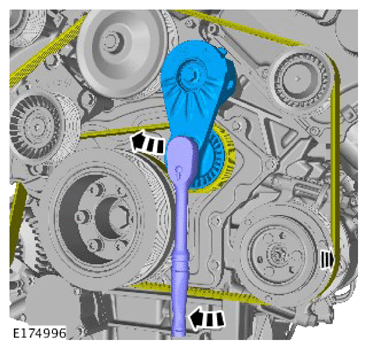

  21. G15618661Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using a suitable tool release the tension from the accessory drive belt tensioner.
    • Install the accessory drive belt over the crankshaft pulley.
    • Allow the accessory drive belt to be fully tensioned and remove the suitable tool from the tensioner assembly.

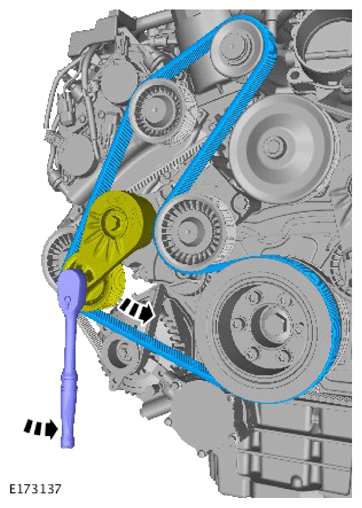

  22. G15618662Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using a suitable tool release the supercharger belt tensioner assembly.
    • Install the supercharger belt, make sure the supercharger belt is correctly located on each pulley.
    • Allow the supercharger belt to be fully tensioned and remove the suitable tool from the tensioner assembly.
  23. Install the cooling fan.

    Refer to: ELECTRIC COOLING FAN AND SHROUD

  24. Install the starter motor.

    Refer to: STARTER MOTOR

  25. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
