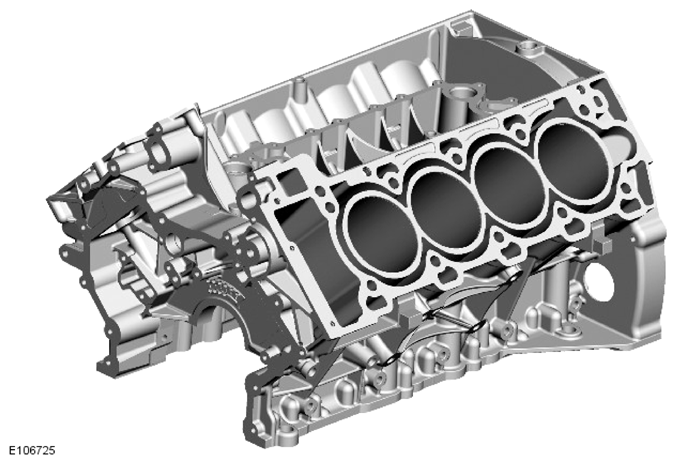

Cylinder Block

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The High Pressure (HP) die-cast aluminum cylinder block is a 90° configuration with cast-in iron cylinder liners and an open deck die-cast coolant jacket. The low volume coolant jacket gives good warm-up times and low piston noise levels. The longitudinal flow design of the coolant jacket, with a single cylinder head coolant transfer port in each bank, provides good rigidity and head gasket sealing.
