Engine - INGENIUM I4 2.0L Petrol/INGENIUM I4 2.0L Petrol - PHEV (G2498230): Notes
WARNING: This page is about a different variant/trim than selected.

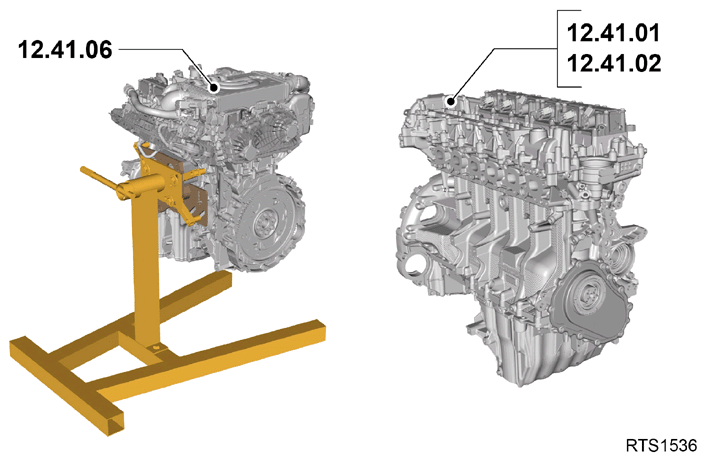

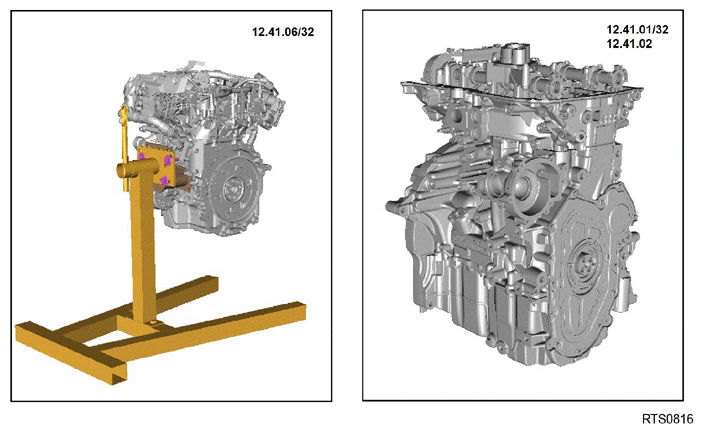

| 12.41.01 |
ENGINE AND ANCILLARIES - RENEW |
2000 CC, AJ21, DIESEL, WITH DIESEL EXHAUST FLUID |
15.50 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.01 |
ENGINE AND ANCILLARIES - RENEW |
2000 CC, AJ21, DIESEL, WITHOUT DIESEL EXHAUST FLUID |
15.30 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.01 |
ENGINE AND ANCILLARIES - RENEW |
2000 CC, INGENIUM PETROL, 4WD |
14.90 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.01 |
ENGINE AND ANCILLARIES - RENEW |
3000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID |
22.40 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.01 |
ENGINE AND ANCILLARIES - RENEW |
3000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID |
21.50 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.01 |
ENGINE AND ANCILLARIES - RENEW |
3000 CC, INGENIUM PETROL |
20.00 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

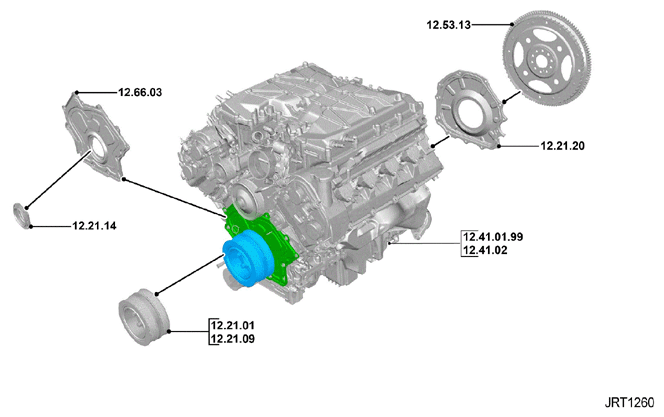

| 12.41.01.99 |
ENGINE AND ANCILLARIES - REMOVE FOR ACCESS AND REFIT |
5000 CC, AJ V8, SUPERCHARGED |
8.00 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

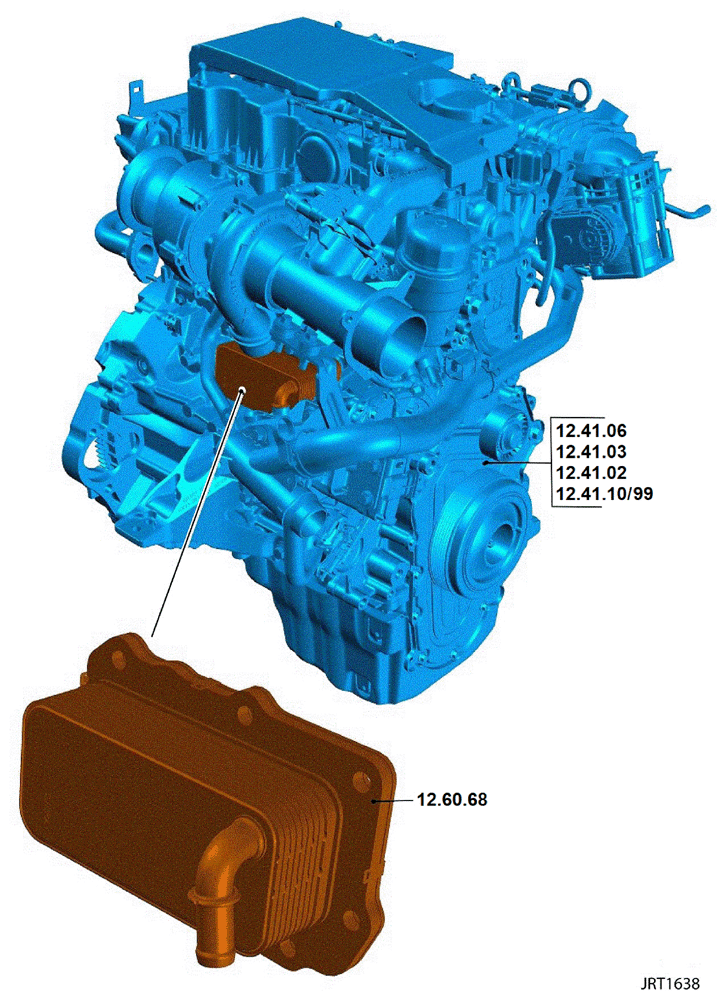

| 12.41.06 |
ENGINE ASSEMBLY - REMOVE FOR ACCESS |
2000 CC, AJ21, DIESEL, WITH DIESEL EXHAUST FLUID |
10.80 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.06 |
ENGINE ASSEMBLY - REMOVE FOR ACCESS |
2000 CC, AJ21, DIESEL, WITHOUT DIESEL EXHAUST FLUID |
10.50 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.06 |
ENGINE ASSEMBLY - REMOVE FOR ACCESS |
2000 CC, INGENIUM PETROL, 2WD |
9.00 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.06 |
ENGINE ASSEMBLY - REMOVE FOR ACCESS |
2000 CC, INGENIUM PETROL, 4WD |
10.90 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.06 |
ENGINE ASSEMBLY - REMOVE FOR ACCESS |
3000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID |
15.40 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.06 |
ENGINE ASSEMBLY - REMOVE FOR ACCESS |
3000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID |
14.60 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.06 |
ENGINE ASSEMBLY - REMOVE FOR ACCESS |
3000 CC, INGENIUM PETROL |
14.00 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
