Oil Pan - RWD (G2043356): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:
- Make sure that all traces of the old sealant are removed from the mating faces.
- Apply silicone gasket sealant or equivalent meeting Land Rover specification.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

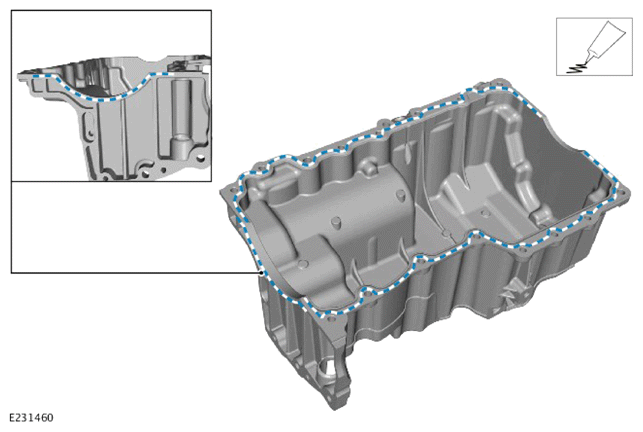

Apply silicone gasket sealant or equivalent meeting Jaguar specification.
CAUTION: Be prepared to collect escaping fluids.

Install the oil pan.
CAUTION: Only tighten the bolts finger-tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

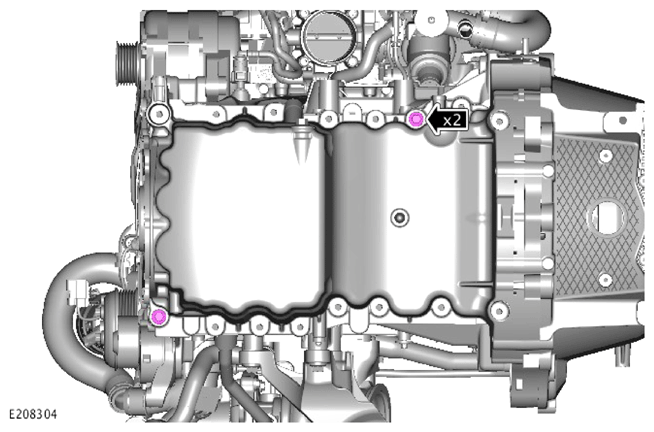

Install the 2 oil pan retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

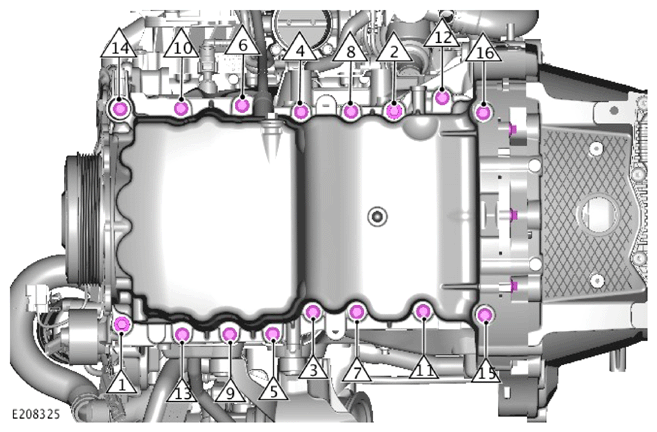

Install and tighten the 16 retaining bolts in the sequence illustrated.

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

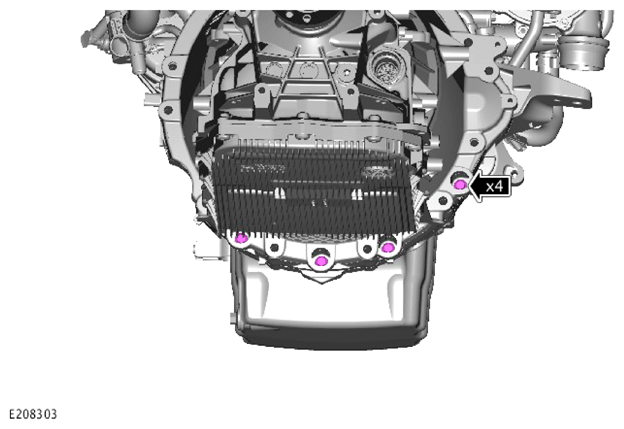

Install the 4 retaining bolts securing the transmission assembly to the oil pan assembly.

Torque : 25 Nm
- Install the oil pan NVH material.
- Install the 4 retaining clips.
Install the transmission fluid cooler tubes.
CAUTION: Inspect the O-ring seal, install a new component if damaged.

Install the oil level gauge.

Torque : 7 Nm
CAUTION:
- Inspect the front cover and replace if necessary.
- Make sure that the surface of the front cover and the engine is clean and free of foreign material.
- Steps 9-12 must be completed within 7 minutes of starting to apply the RTV.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

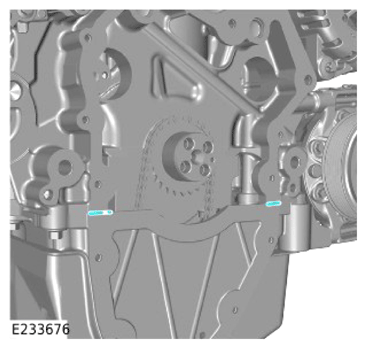

Apply RTV sealant in the position shown.

Refer to: SPECIFICATIONS .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

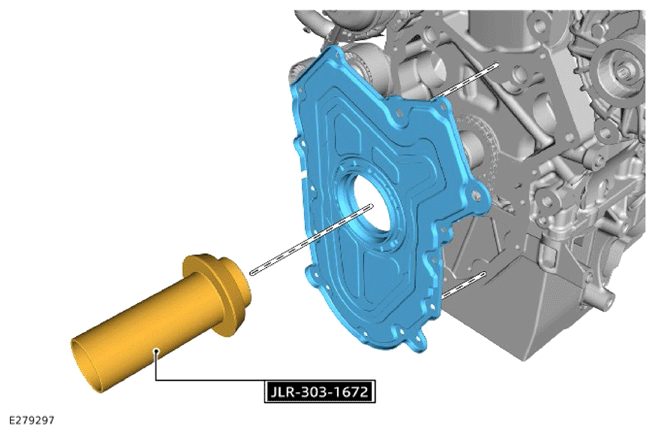

- Install the engine front cover.
- Use the front cover alignment tool to align the front cover.
  Special Tool(s): JLR-303-1672
CAUTION: Do not fully tighten the bolts at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

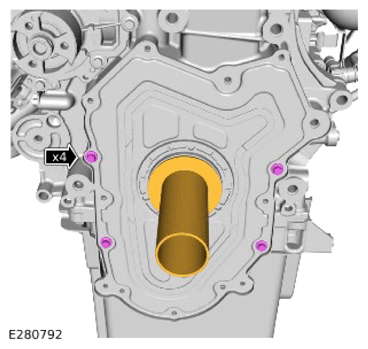

Install and finger tighten the 4 bolts.
CAUTION: Continuous forward pressure must be applied on the tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

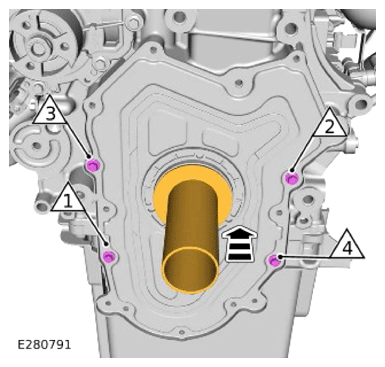

Fully tighten the 4 bolts in the sequence illustrated.

Torque : 12 Nm
CAUTION: This step must be completed within 40 minutes of starting to apply the RTV.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

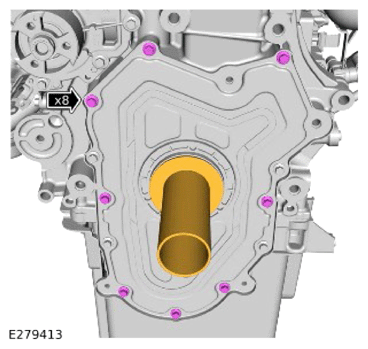

Install and tighten the 8 bolts.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

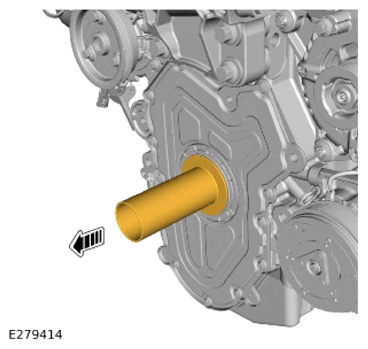

Remove the front cover alignment tool.

Special Tool(s): JLR-303-1672
CAUTION: This step is only required if the front cover is re-used.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

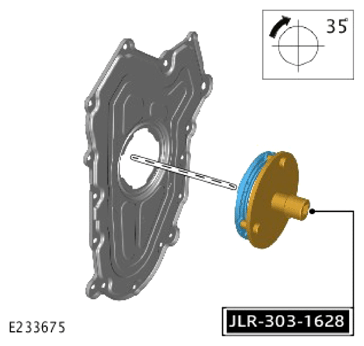

- Install the special tool.
  Special Tool(s): JLR-303-1628
- Rotate the special tool and the crankshaft front seal 35° in a counter clockwise direction.
- Remove the special tool and the crankshaft front seal.
- Remove and discard the crankshaft front seal.
CAUTION: This step is only required if the front cover is re-used.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

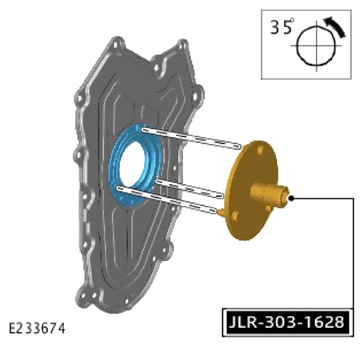

- Install a new crankshaft front seal to the special tool.
  Special Tool(s): JLR-303-1628

  Renew Part: Crankshaft front oil seal Quantity: 1 .
- Install the special tool and the crankshaft front seal.
- Rotate the crankshaft front seal and special tool 35° in a clockwise direction.
- Remove the special tool.
- Install the 2 drive belt pulleys.
- Install the 2 retaining bolts.
  Torque
  1. M6: 25 Nm
  2. M10: 47.5 Nm
- Install the 2 dust caps.
- Install the A/C compressor.
- Install the 3 A/C retaining bolts.
  Torque : 25 Nm
Install the crankshaft damper.
Refer to: CRANKSHAFT PULLEY (G1997933) .
Install the front subframe.
Refer to: FRONT SUBFRAME - INGENIUM I4 2.0L PETROL (G2496345) .
Refill the engine with oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING (G1997675) .
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G2623442) .
