Crankshaft Front Seal (G1997931): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
- Remove the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G2623442) .
- Remove the crankshaft damper.
Refer to: CRANKSHAFT PULLEY (G1997933) .

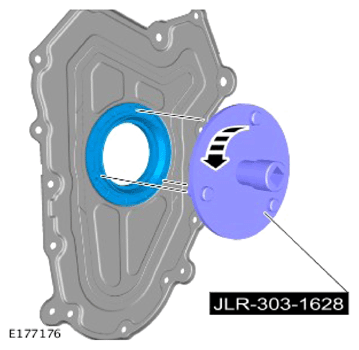

Using a suitable tool, remove and discard the front crankshaft oil seal.
Special Tool(s): JLR-303-1628
