Spark Plugs (G2244126): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains illustrations for left side components, right side components are similar.
  1. Remove the 8 Ignition coil on-plugs.

    Refer to: IGNITION COIL-ON-PLUG

  2. NOTE: Repeat this step for the other side.

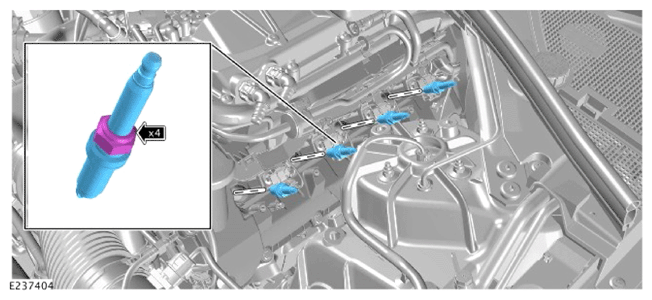

    G15622020Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 4 spark plugs.
