Ignition Coil-On-Plug (G2244125): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Bank 2 shown, Bank 1 similar.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

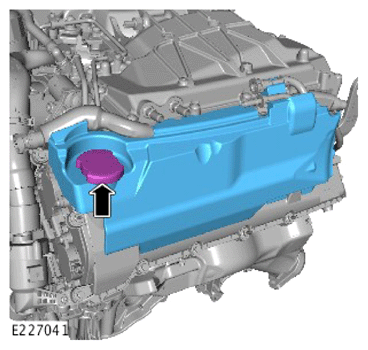

- Remove oil filler cap.
- Remove the Noise, Vibration and Harshness (NVH) material.
- Install the oil filler cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

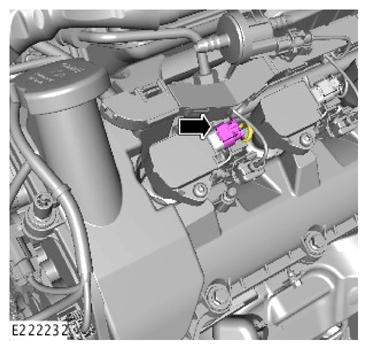

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

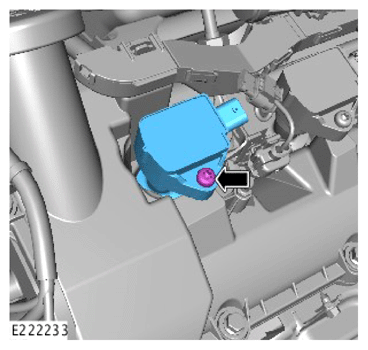

- Remove the bolt.
- Remove the ignition coil-on-plug.
Repeat steps 3 and 4 for the remaining ignition coil-on-plugs for Bank 2
