Radio Frequency Interference Suppressor

WARNING: This page is about a different variant/trim than selected.

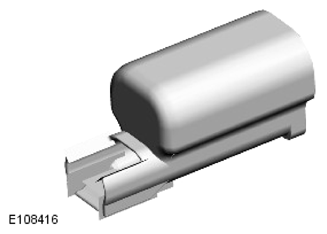

G15622006Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The Radio Frequency Interference (RFI) suppressor is installed on the engine wiring harness carrier at the rear of the engine. The suppressor is connected into the power supply from the Powertrain Control Module (PCM) relay in the rear Engine Junction Box (EJB) to the ignition coils.
