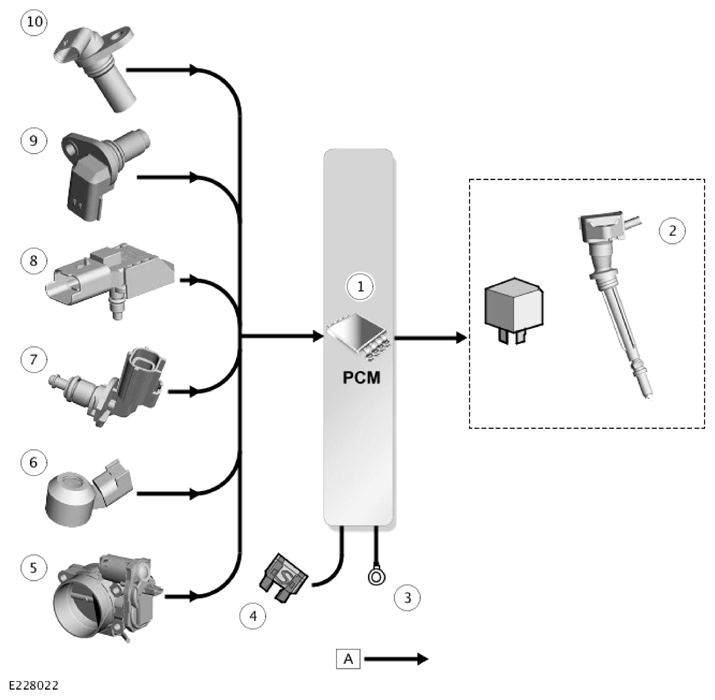

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED .
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | PCM relay and ignition coils (8 off) |
| 3 | Ground |
| 4 | Power supply |
| 5 | Electric throttle |
| 6 | Knock sensor (2 off) |
| 7 | Engine Coolant Temperature (ECT) sensor |
| 8 | Manifold Absolute Pressure (MAP) sensor |
| 9 | Camshaft Position (CMP) sensor (2 off) |
| 10 | Crankshaft Position (CKP) sensor |
