Startup Battery (G2760162): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

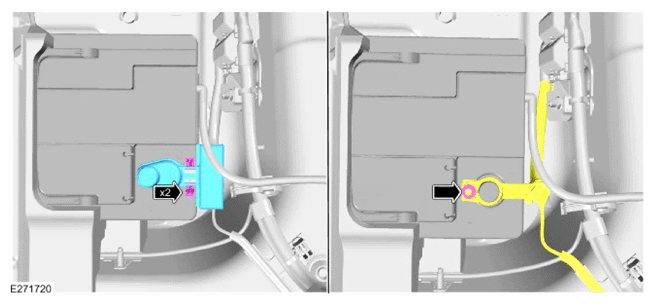

- Remove the positive terminal cover.
- Loosen the nut.
- Disconnect the startup battery positive cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

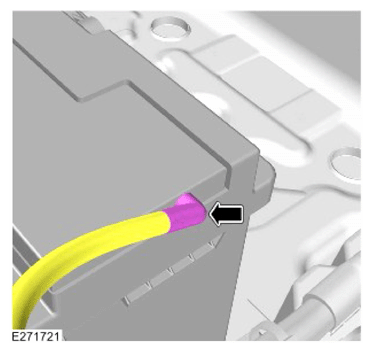

Disconnect the startup battery breather hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

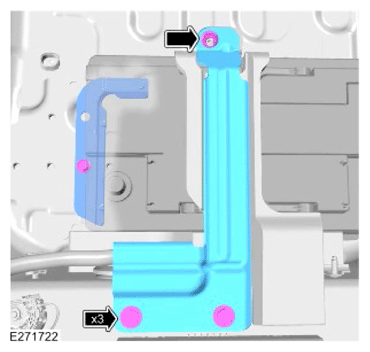

- Remove the top battery clamp nut.
- Remove the 2 top battery clamp bolts.
- Remove the top battery clamp.
- Remove the side battery clamp bolt.
- Remove the side battery clamp.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

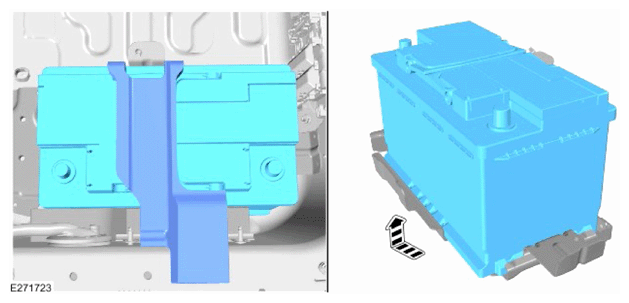

- Remove the Noise, Vibration and Harshness (NVH) material.
- Remove the startup battery.
