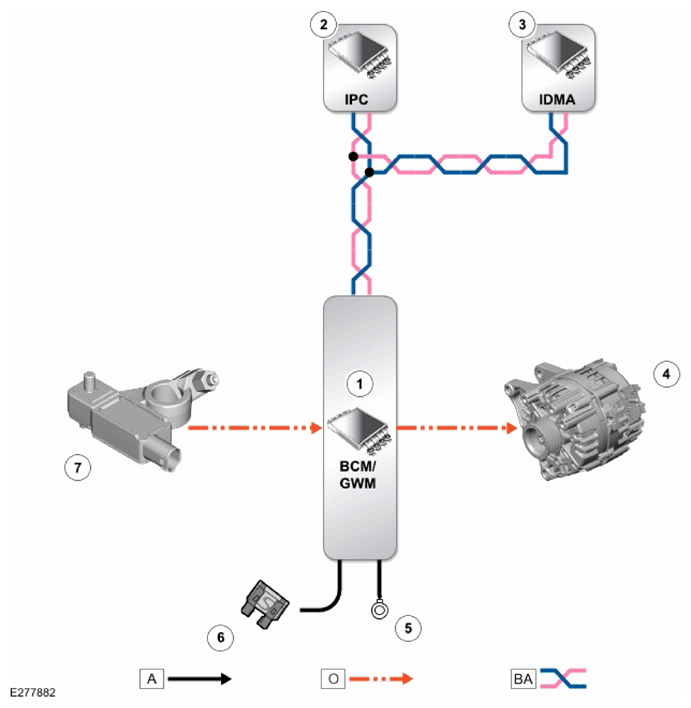

Control Diagram
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: O = LIN : BA = HS CAN HMI SYSTEMS BUS.
| ITEM |
DESCRIPTION |
| 1 |
BCM
/GWM |
| 2 |
IPC |
| 3 |
IDMA |
| 4 |
Generator |
| 5 |
Ground |
| 6 |
Power supply |
| 7 |
BMS |
