Component Location - 1 Of 3
WARNING: This page is about a different variant/trim than selected.
NOTE:
Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.
The location of the Engine Junction Box (EJB) 2 changes depending if the vehicle is Left Hand Drive (LHD) or Right Hand Drive (RHD).
The location of the Engine Junction Box (EJB) 2 changes depending if the vehicle is Left Hand Drive (LHD) or Right Hand Drive (RHD).

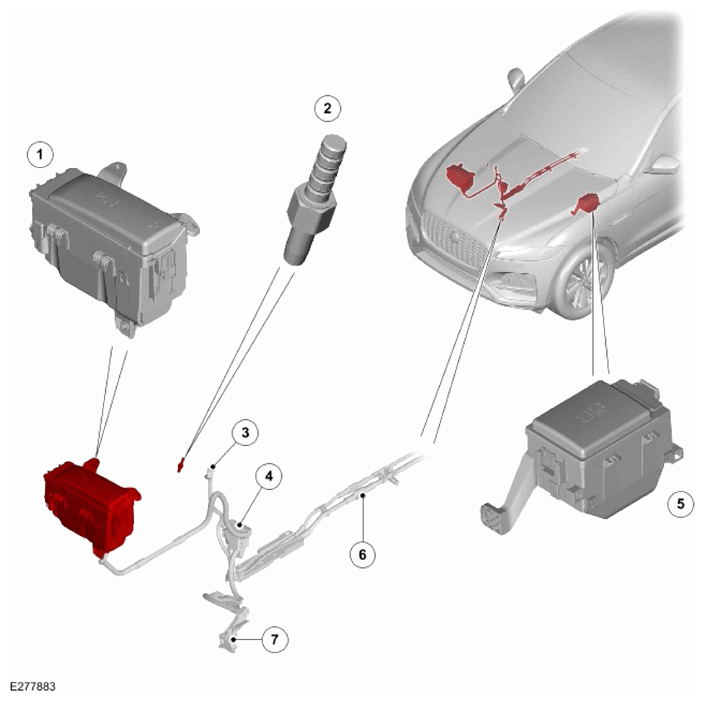

| ITEM | DESCRIPTION |
|---|---|
| 1 | EJB 1/Jump start positive terminal |
| 2 | Vehicle body ground terminal |
| 3 | Electrical connection - Startup battery busbar |
| 4 | Startup battery busbar front connection |
| 5 | EJB 2 |
| 6 | Startup battery busbar |
| 7 | Electrical connection - Starter motor and generator |
