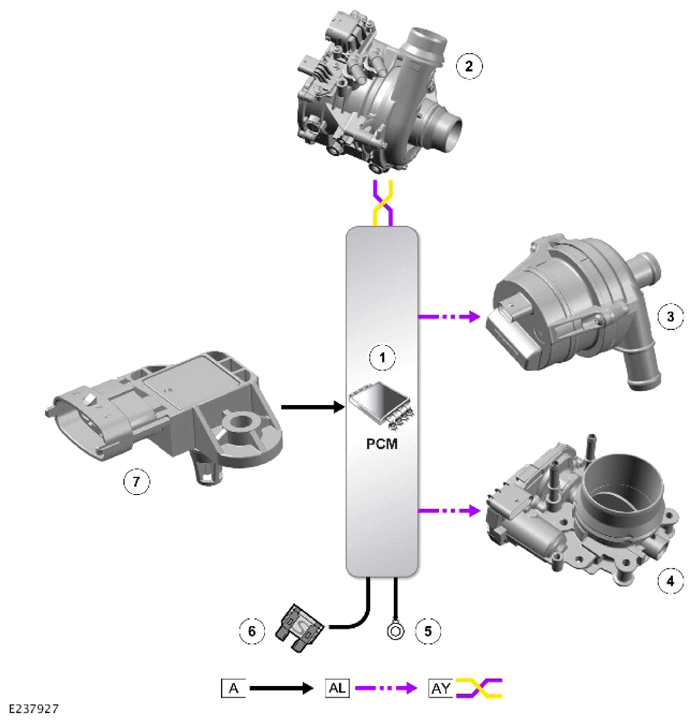

Control Diagram
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: AL = PWM : AY = HS CAN POWER MODE ZERO SYSTEMS BUS.
| ITEM |
DESCRIPTION |
| 1 |
PCM |
| 2 |
Electric supercharger |
| 3 |
Charge air coolant pump |
| 4 |
Electric supercharger bypass valve |
| 5 |
Ground |
| 6 |
Power supply |
| 7 |
Pressure and temperature sensor - Charge air cooler |
