Electric Cooling Fan And Shroud (G2756454): Removal

WARNING: Make sure the engine cooling system is cool prior to doing this procedure.

CAUTION: Engine coolant will damage the paint finished surfaces. If spilled, immediately remove the coolant and clean the area with water.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2-post lift.
Refer to: LIFTING .
Disconnect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Partially drain the engine cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - INGENIUM I4 2.0L DIESEL AJ21/INGENIUM I4 2.0L PETROL/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

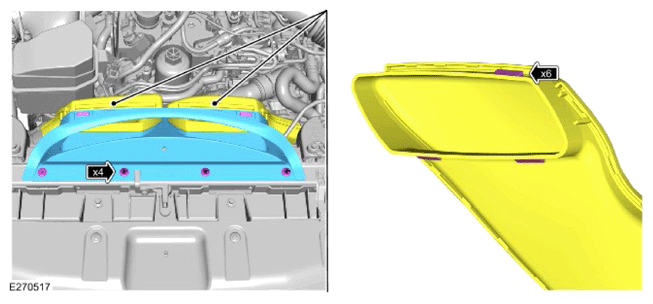

- Release the 2 dirty air ducts at the 6 clips.
- Remove the 4 fasteners.
- Remove the air deflector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

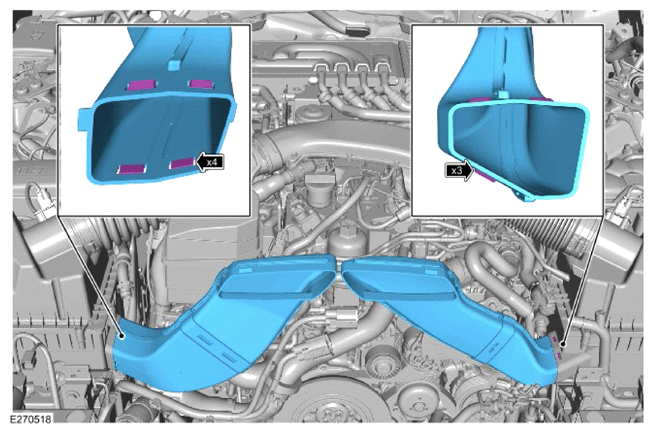

- Release the 7 clips.
- Remove the 2 dirty air ducts.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

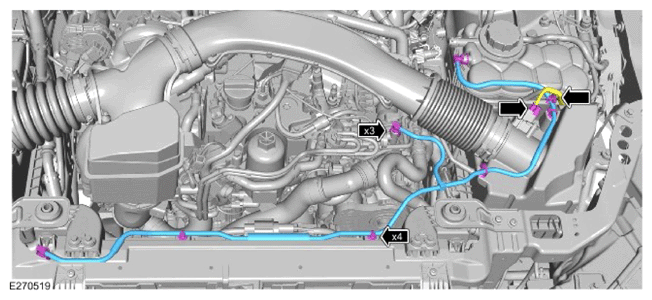

- Disconnect the electrical connector.
- Release the wiring harness clip.
- Disconnect the 3 coolant pipe connectors.
- Release the 4 pipe clips.
- Remove the breather pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

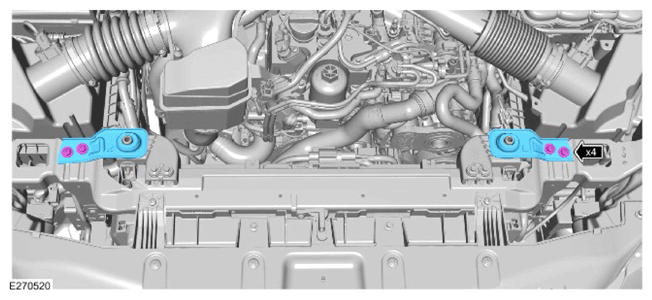

- Remove the 4 bolts.
- Remove the 2 upper mounting brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

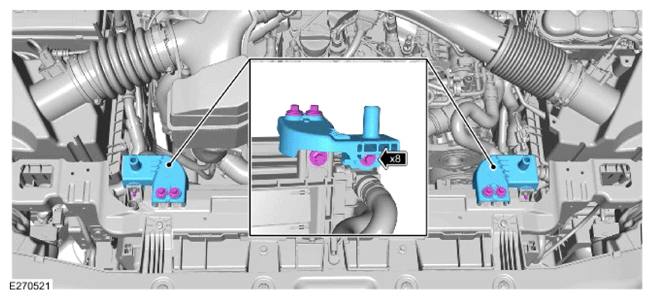

- Remove the 8 bolts.
- Remove the 2 upper mounting brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

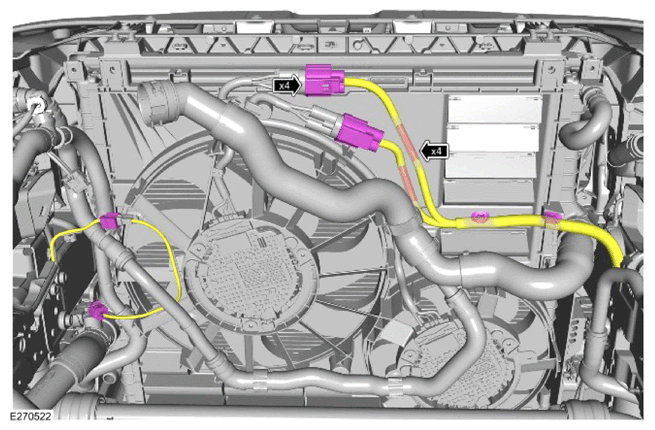

- Disconnect the 4 electrical connectors.
- Release the 4 wiring harness clips.
WARNING: Be prepared to collect escaping engine coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

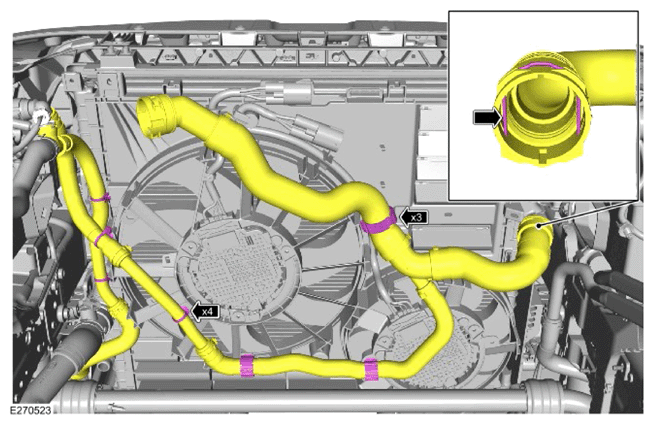

- Disconnect the coolant hose connector.
- Release the 7 coolant hose clips.
NOTE: Vehicles with right auxiliary radiator.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

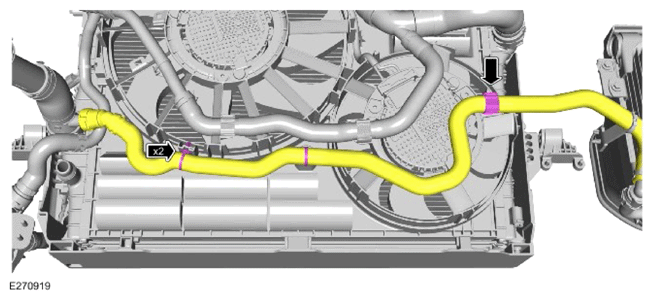

Release the 3 coolant hose clips.
NOTE: Note the position of the locating pegs prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

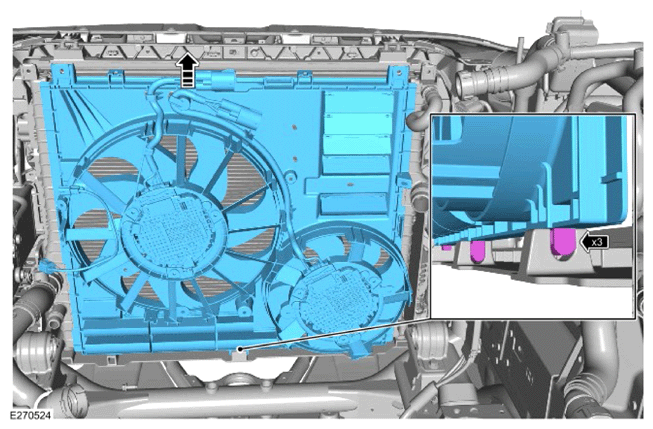

Remove the electric cooling fan and shroud.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

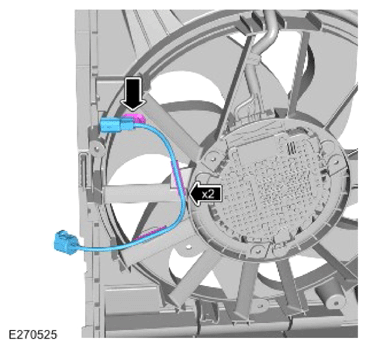

- Release the 2 wiring harness clips.
- Release the electrical connector clip.
- Remove the wiring harness.
