Cylinder Block Temperature Sensor

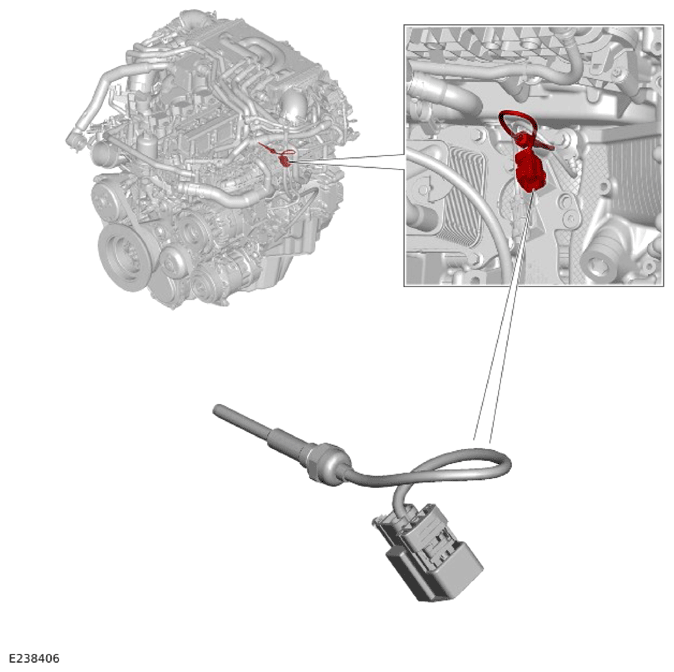

G15620588Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The cylinder block temperature sensor is located in a threaded hole on the left side of the cylinder block.

The sensor is a NTC  resistor with a 2-pin connection.

The 2-pin connector provides the following connections:
