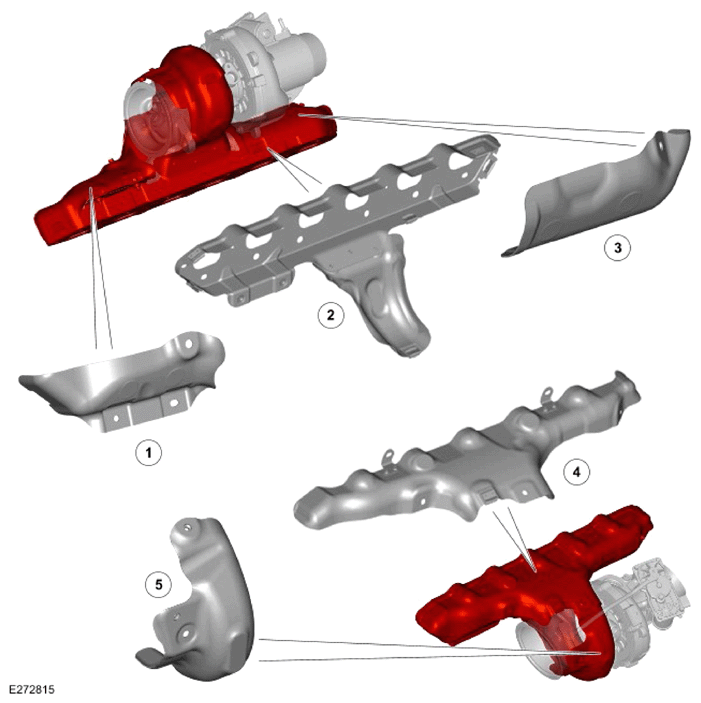

Turbocharger (G2745229): Description: HEATSHIELDS
| ITEM | DESCRIPTION |
|---|---|
| 1 | Exhaust manifold left lower heatshield |
| 2 | Exhaust manifold gasket with lower heatshield |
| 3 | Exhaust manifold right lower heatshield |
| 4 | Exhaust manifold upper heatshield |
| 5 | Turbocharger lower heatshield |
The heatshields are installed around the turbocharger to protect the surrounding components from radiated heat. The heatshields also prevent accidental contact with the hot exhaust components.
