Electric Park Brake Actuator (G2496818): Removal
WARNING:
Take extra care that the brake pedal is not pressed during the replacement procedure. Failure to follow this instruction might result in personal injury.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
- Use the Jaguar Land Rover (JLR) approved diagnostic equipment to activate the Integrated Power Brake assembly mode.
Refer to: INTEGRATED POWER BRAKE ASSEMBLY MODE
- Use the JLR
approved diagnostic equipment to set the Electric Park Brake (EPB) to the maintenance position.
General Equipment: Jaguar Land Rover approved diagnostic equipment
-
NOTE: This step is only required if the JLR approved diagnostic equipment is not available.
Set the EPB to the maintenance position.
Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

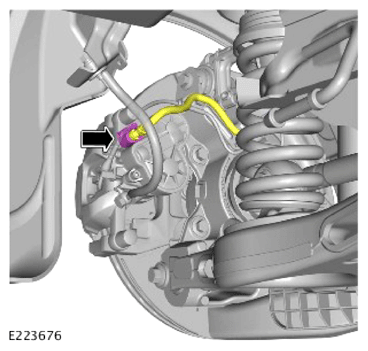

Disconnect the electrical connector.

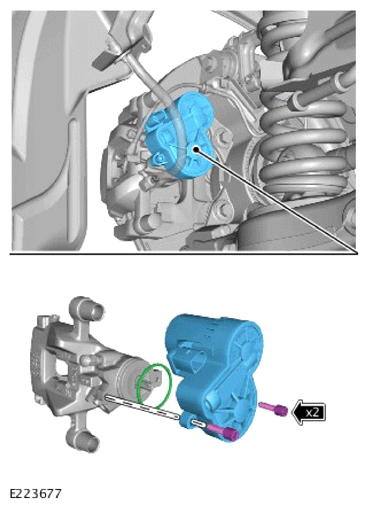

- Remove and discard the 2 bolts.
- Remove the EPB actuator from the brake caliper.
- Remove and discard the O-ring seal.
