Preliminary (G2496214)

NOTE: Vehicles equipped with Plug-in Hybrid Electric Vehicle (PHEV) require the engine running for specific intervals throughout the Pre-Delivery Inspection (PDI).

1. Make sure that the vehicle has arrived in a sealed condition. Remove and discard the seals following local regulations.

Make sure that the vehicle has arrived with the transportation seals intact.

After parking the vehicle in a work bay, open the hood for access and record the vehicle details on the PDI check sheet.

Vehicles equipped with PHEV : Switch the ignition ON, then select Dynamic Mode to start the engine.

NOTE: Make sure the hood switch is not closed while the hood is open. Under certain conditions this may allow the vehicle to start. These conditions are:

Passenger compartment doors shut;
Driver's seatbelt engaged; and
Ignition switched 'ON'.

2. Check that the vehicle conforms to the specifications and options expected.

Record the following details on the PDI check sheet:

Invoice number
Customer name
Model
Registration number
Registration date
Odometer
Vehicle Identification Number (VIN)
Engine number
Smart key number
Activity key number (if equipped)
Paint code
Trim code
Battery test code
Locking wheel nut code (if equipped)

NOTE:

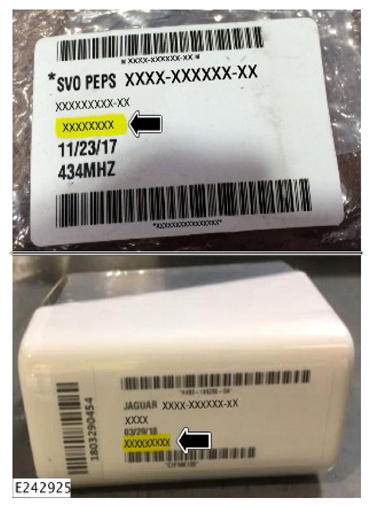

The smart key number is the 8 - 10 digit code found on the label of the plastic bag containing the smart keys supplied with the vehicle.
The activity key number is the 9 digit code found on its storage case.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Refer to the identification codes document for vehicle detail locations. For additional information, refer to: IDENTIFICATION CODES (G2496212)

Vehicles equipped with PHEV : Switch the engine OFF.

3. Connect the Jaguar Land Rover approved battery support unit to the vehicle.

Make sure that the correct standard of battery care is applied. For additional information, Refer to: BATTERY CARE REQUIREMENTS - VEHICLES WITH: 12V LI-ION STARTUP BATTERY

Connect the Jaguar Land Rover (JLR) approved battery support unit to the vehicle. For additional information, Refer to: BATTERY SUPPORT UNIT CONNECTION PROCEDURE

CAUTION: Failure to charge the battery in this manner will cause the Battery Monitoring Sensor (BMS), to NOT register the charge increase. This can cause certain systems, including the Start/Stop system, to be inhibited during the first few days of driving while the BMS re-calibrates.

To charge the startup battery, connect the positive cable to the positive charge point and connect the negative cable to the negative charge point in the engine compartment.

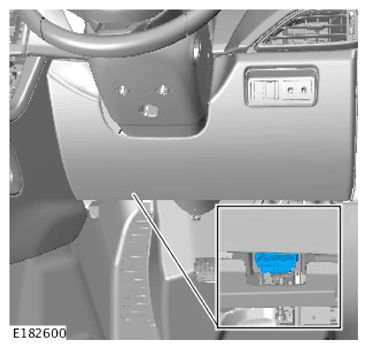

4. Connect the Jaguar Land Rover approved diagnostic equipment to the vehicle.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

embedded Subscriber Identification Module (eSIM) (if equipped).

NOTE:

If the Know Your Customer identity verification has not been completed, the vehicle's eSIM will remain suspended and the local eSIM profile will not be downloaded during the PDI process preventing the completion of the PDI.
A vehicle with a suspended eSIM will still show as having a data connection (signal bars), but the eSIM will not transmit or receive any data. To confirm the Know Your Customer status, retailers should search the VIN through the Tata Communications eKYC portal accessible through the Global Retailer Portal.

Check that the customer has completed the Know Your Customer identity verification process before completing the PDI application.

Run the Jaguar Land Rover Pre-Delivery Inspection application:

NOTE: If the customer has requested any additional keys, these must be with the vehicle positioned on the center console.

Make sure that all smart keys supplied with the vehicle are positioned on the center console.
Press the hazard warning lamp switch to switch the ignition ON.
The JLR approved diagnostic equipment will read the vehicle identification details from the vehicle.

NOTE: Make sure the ignition is switched ON during the auto-scan.

Ignition cycles are automatically controlled by the JLR approved diagnostic equipment.
Check that the vehicle specifications read by the JLR approved diagnostic equipment match the actual vehicle specifications.
Select the 'Service' tab.
- Select the 'Pre-Delivery Inspection' tab.
- Follow the on-screen instructions. This will set up telematics, disable the factory speed limiter and perform a full Diagnostic Trouble Code(s) (DTC) clear.

NOTE: Make sure WiFi is turned OFF before the starting the telematics activation procedure.

During telematics set-up:
- The system will now search for signal coverage.
- If it detects a good signal coverage, confirm to activate the telematics module.
- A message will state if activation was successful, a red light will illuminate the SOS call switch.
- If unsuccessful or the JLR approved diagnostic equipment states a poor signal coverage, the vehicle must be moved to an area of good signal coverage.
- Press the information call switch, after 10 seconds the illumination pattern will change. Release the switch and the system will try to activate the telematics module.
  NOTE: This will time out after 2 minutes.
- If successful, the information call light will stay illuminated for a short period and the SOS call switch will be illuminated red.
- If unsuccessful, repeat the process until the SOS call switch is illuminated red.

NOTE: This step applies to Russian market vehicles only.

Confirm the operation of the ERA-GLONASS system.
- Press and hold the SOS call switch.
- Wait for a response from the call center operator.
- Answer the call center operator with the phrase, 'Carrying out pre-delivery inspection'.
- Response from the call center operator will be, 'Information received'. The call will then be disconnected.
- If the call does not connect please call the telematics service desk using the normal process.

Activity key (if equipped).

Connect the charger to the activity key.

Select the appropriate brand logo. For additional information, Refer to: ACTIVITY KEY LOGO PROGRAMMING

Pair the activity key to the vehicle.

Use the JLR approved diagnostic equipment to interrogate any DTC 's that are present and rectify.

5. Check the register of Service Action Bulletins, Recall Actions, or Update Prior to Sales (UPS) notices and make sure all open campaigns are completed during the PDI.

Make sure that all service actions have been complete and there are no recall actions.

6. Pivi Pro Map Installation.

Vehicles equipped with PHEV : Switch the ignition ON, then select Dynamic Mode to start the engine.

The engine must be running or in Electric Vehicle (EV) ready mode during the entire map update process to make sure that the vehicle's power-saving measures do not interrupt the update.

For additional information, Refer to: NAVIGATION SYSTEM MAP UPDATES(if equipped) .

For additional information, Refer to: NAVIGATION SYSTEM MAP UPDATES(China only) .

For additional information, Refer to: NAVIGATION SYSTEM MAP UPDATES(Japan only) .

For additional information, Refer to: NAVIGATION SYSTEM MAP UPDATES(Korea only) .

Retailer ordering center links:

NOTE:

Administrator rights are required on your PC to download and install the Pivi map update software.
Make sure a minimum of 20Gb of hard drive space is available on your PC when downloading the latest maps.

Europe: http://www.navigation.com/doc-emea/
Latin America: http://www.navigation.com/doc-amer/
Asia Pacific: http://www.navigation.com/doc-apac/
USA: http://www.navigation.com/doc-us/

For further details of the navigation system, refer to the relevant article of the owner's handbook.

7. Disconnect the Jaguar Land Rover approved diagnostic equipment from the vehicle.

Vehicles equipped with PHEV : Switch the engine OFF.

8. Disconnect the battery support unit from the vehicle.

9. Startup battery test.

CAUTION: DO NOT connect the tester to any other circuit or chassis point other than the startup battery negative terminal.

NOTE:

The battery voltage check MUST be performed to make sure the Stop/Start system performs correctly. The startup battery must be in good condition prior to handing over the vehicle to the customer.
Only use JLR approved battery test equipment to test the startup battery condition.

Make sure the correct standard of battery care is applied. For additional information, Refer to: BATTERY CARE REQUIREMENTS - VEHICLES WITH: 12V LI-ION STARTUP BATTERY

The startup battery test is to be completed before performing the remainder of the PDI , while the startup battery is not connected to the vehicle.

The startup battery must be tested to determine that it is in good condition and there is sufficient charge to complete the PDI. Certain electrical systems require a precise voltage to operate correctly.

Use the JLR approved battery test equipment to check the battery charge condition.

Record the startup battery voltage and test code on the PDI check sheet. For additional information, Refer to: NEW VEHICLE STORAGE FORM

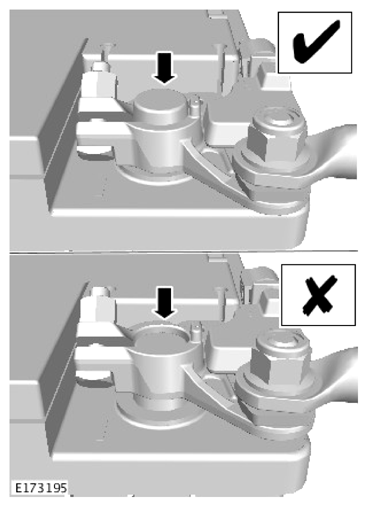

Check the startup battery terminals.

CAUTION: Incorrectly installed terminals risk the startup battery discharging after handover to the customer.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure that the positive and negative terminals are fully installed and tightened to the correct torque. For additional information, Refer to: BATTERY, MOUNTING AND CABLES - VEHICLES WITH: NON-ELECTRIC VEHICLES

10. Reconnect the Jaguar Land Rover approved battery support unit.

11. Check the engine compartment fluid levels.

CAUTION:

The engine must be left switched off for 10 minutes before checking the oil, to allow a full drain down. Failure to do this may result in overfilling.
The brake fluid level should be between MIN and MAX based upon brake pad wear. Only top-up the brake fluid to MAX after new brake pads have been installed.
If the brake fluid level is below MIN, visually check for any leaks.

NOTE: There is some variation in the illustration depending on the vehicle specification, but the essential information is correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Investigate the cause if any fluid levels are low.

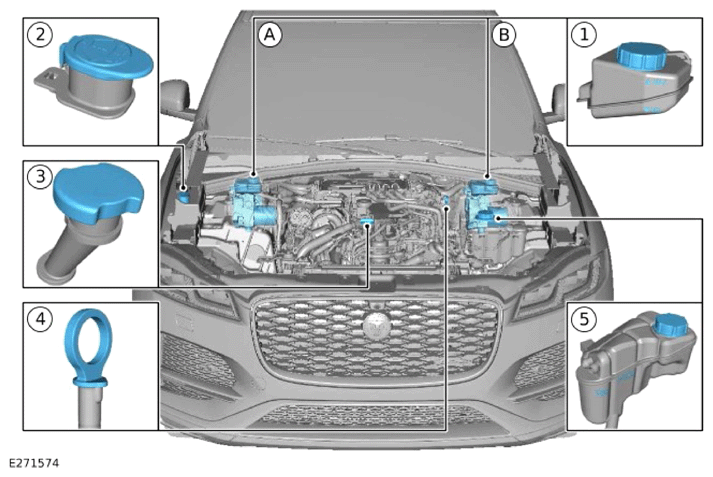

All engine variants:

Brake fluid reservoir caps (beneath covers):
1. Right hand drive vehicles.
2. Left hand drive vehicles.
Washer fluid reservoir cap.
Oil filler cap.
Oil level gauge (if equipped).
Coolant expansion tank cap.
