Instrument Panel Cluster Control Module - Conventional Display

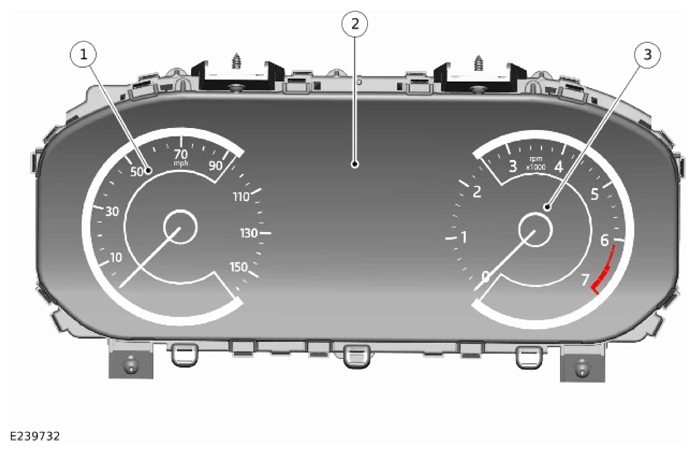

| ITEM | DESCRIPTION |
|---|---|
| 1 | Speedometer |
| 2 | Message center |
| 3 | Tachometer |
The IPC is located in the instrument panel. The IPC comprises 2 analog gauges, the speedometer and the tachometer. Between the analog gauges, a 7 inch TFT display is provided for driver information.
Analog Instruments
The analog speedometer and tachometer are located in the IPC. The speedometer and tachometer are each driven by an electronic stepper motor. The characteristics of this type motor produce damping of the pointer needle. Both of the gauges return to their respective 0 positions when the ignition is switched OFF.
