Secondary Bulkhead Center Panel - INGENIUM I4 2.0L Petrol (G2113056): Removal

WARNING: This page is about a different car, the 2018 Jaguar E-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to:LIFTING (G189141)
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

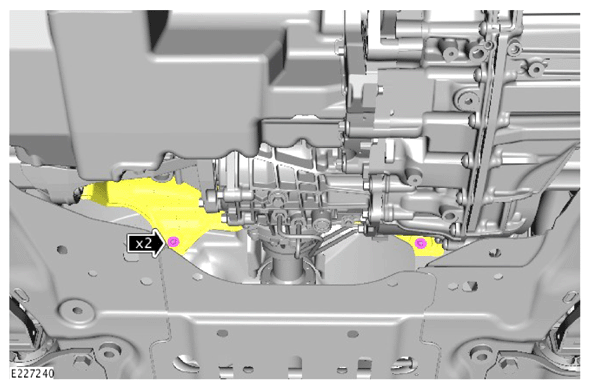

Remove the 2 retaining nuts.
Remove the cowl panel.
Refer to: COWL PANEL .
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

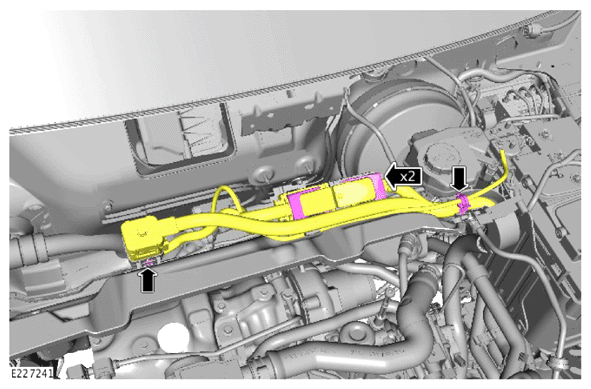

Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

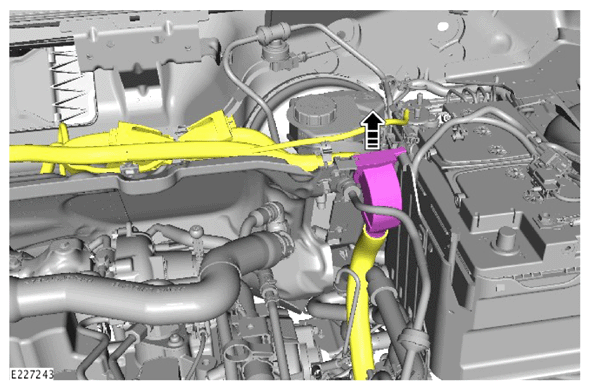

Release the engine wiring harness to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

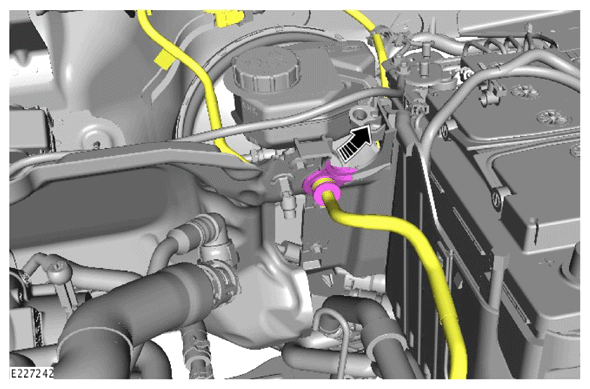

Release the brake vacuum pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

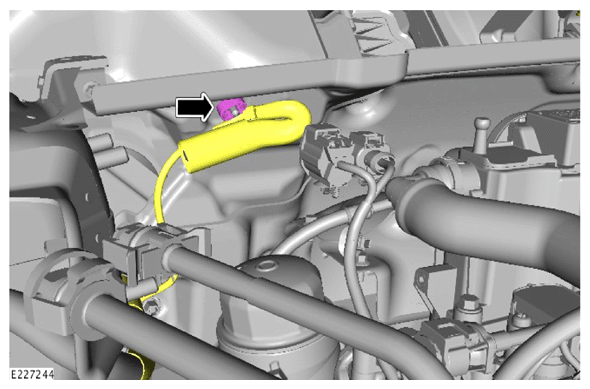

Release the electrical wiring retaining clip.
WARNING: To avoid damage carefully remove the noise, vibration and harshness material.

NOTE: Engine is removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

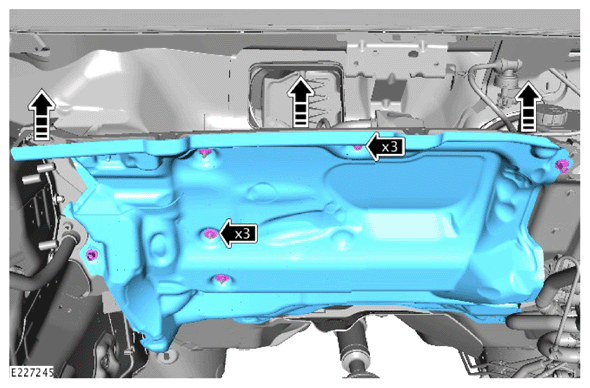

- Remove the 6 retaining nuts.
- Remove the noise vibration and harshness material.
NOTE: Engine is removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

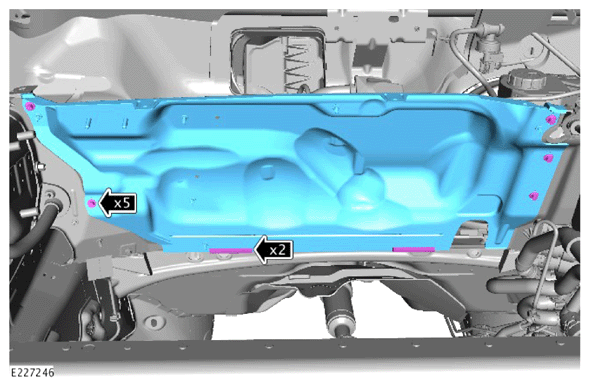

- Remove the 5 retaining bolts.
- Remove the adhesive from the mating surface.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

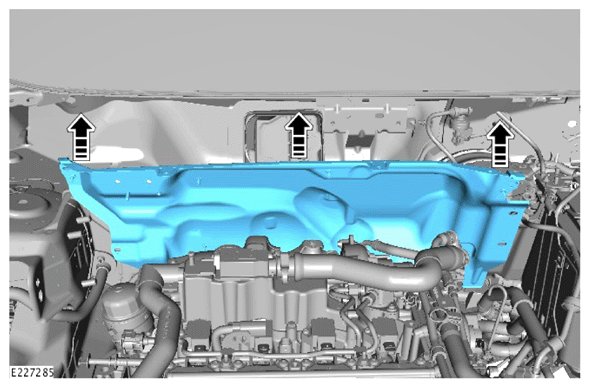

Remove the secondary bulkhead center panel.
