Secondary Bulkhead Center Panel - INGENIUM I4 2.0L Diesel (G1893371): Removal

WARNING: This page is about a different car, the 2018 Jaguar E-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to:LIFTING (G189141)
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .
Remove the cowl panel.
Refer to: SPECIFICATIONS .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

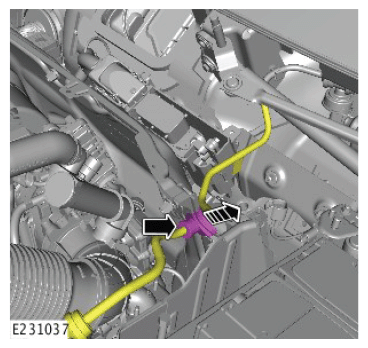

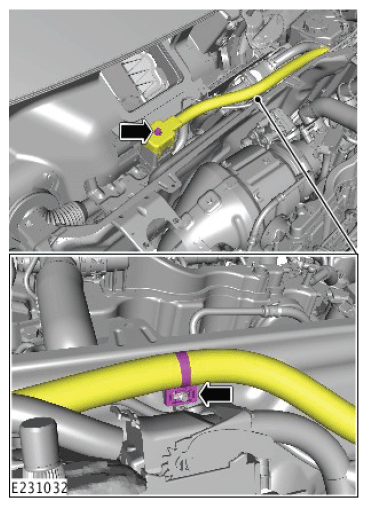

- Release the bolt from the electrical connector.
- Release the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

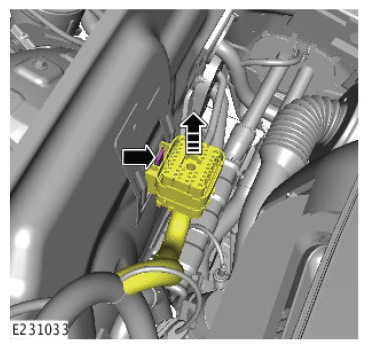

Release the electrical connector from the clip.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

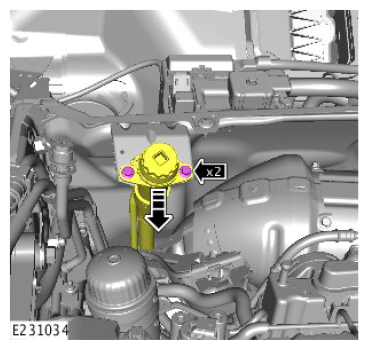

- Remove the 2 bolts.
- Release the Diesel Exhaust Fluid (DEF) filler from the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

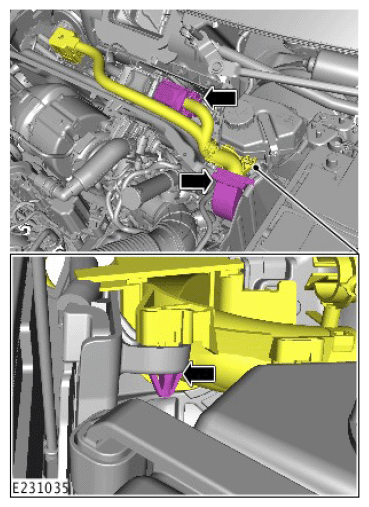

- Disconnect the electrical connector.
- Release the wiring harness grommet.
- Release the wiring harness clip.
- Position the wiring harness away from the secondary bulkhead center panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

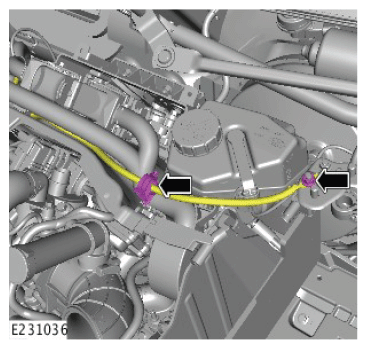

- Remove the nut and disconnect the ground cable.
- Release the wiring harness from the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the brake vacuum pipe grommet.
- Position the brake vacuum pipe away from the secondary bulkhead center panel.
NOTE: Engine is removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

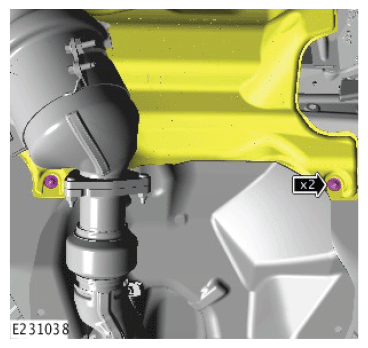

Remove the 2 lower nuts from the Noise Vibration and Harshness (NVH) material.
CAUTION: To avoid damage carefully remove the noise, vibration and harshness material.

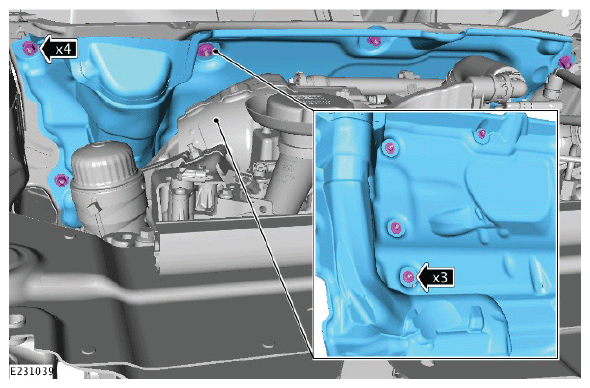

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 7 nuts.
- Remove the NVH material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

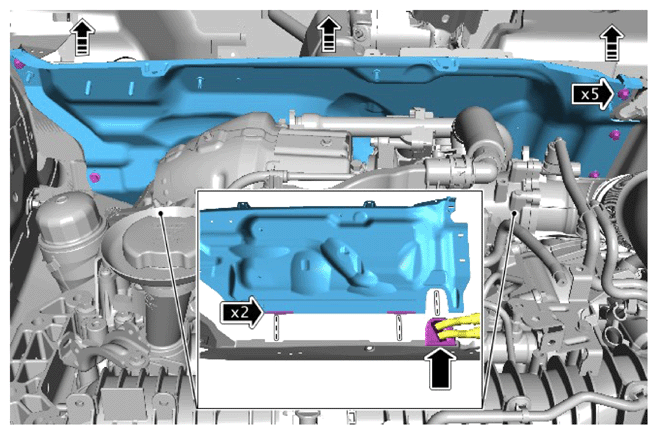

- Remove the 5 bolts.
- Release the coolant pipe grommet from the secondary bulkhead center panel.
- Remove the 2 adhesive strips from the mating surface.
- Remove the secondary bulkhead center panel.
