Hood Latch Panel (G2172312): Removal

WARNING: This page is about a different car, the 2018 Jaguar E-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Always protect paintwork and windows when removing exterior components.

NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Remove the headlamp assembly.
Refer to: HEADLAMP ASSEMBLY .
Remove the hood latches.
Refer to: HOOD LATCH .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

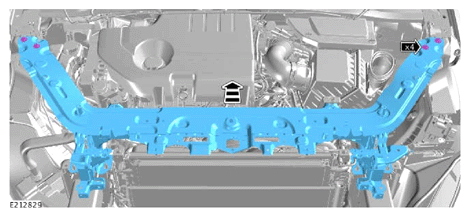

- Remove the 5 nuts.
- Remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 nuts.
- Remove the bolt.
- Release the windshield washer reservoir filler neck.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Remove the hood latch panel.
