Fender (G2172309): Removal

WARNING: This page is about a different car, the 2018 Jaguar E-Pace. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING (G189141)
Remove the front bumper.
Refer to: FRONT BUMPER .
Remove the front wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the insulation.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the clip.
- Remove the baffle plate.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

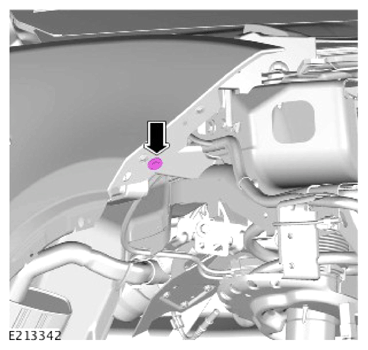

Remove the 2 lower bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the front bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

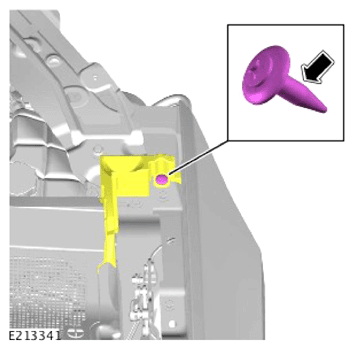

- Remove the clip.
- Reposition the foam pad.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

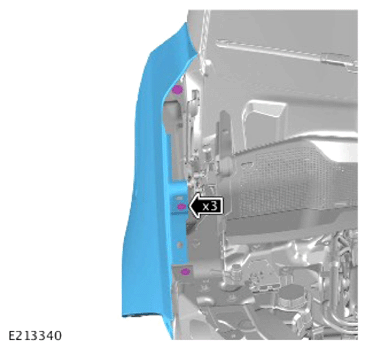

- Remove the 3 upper bolts.
- Remove the front fender.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Carefully release the 6 clips.
- Remove the side vent.
