Engine UNDERSHIELD (G2206904): Removal

WARNING: This page is about a different car, the 2018 Jaguar E-Pace. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle on a suitable 2 post lift.
Refer to:LIFTING (G189141)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

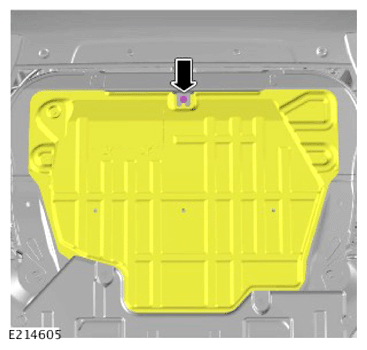

Loosen, but do not fully remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

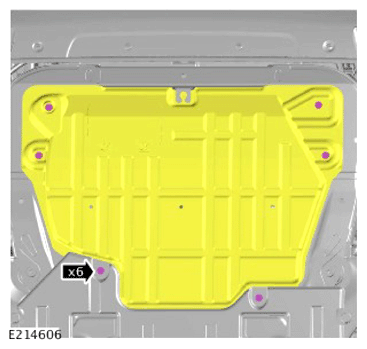

- Remove the 6 bolts.
CAUTION: Components must be removed in the sequence illustrated.

Fig 1: Removing Engine Undershield
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

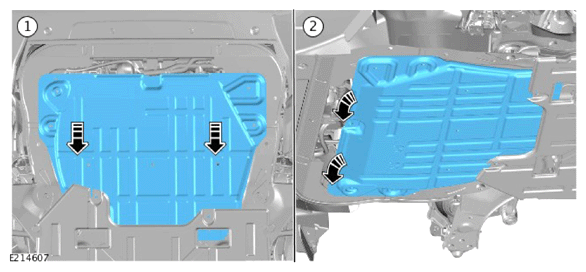

- Slide the engine undershield backwards.
- Tilt and pull forward the engine undershield to remove.
