Electric Cooling Fan And Shroud (G2110296): Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Remove the front armature.
Refer to: FRONT BUMPER .
Remove the air deflector.
Refer to: ENGINE UNDERSHIELD .
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector and release the wiring harness retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

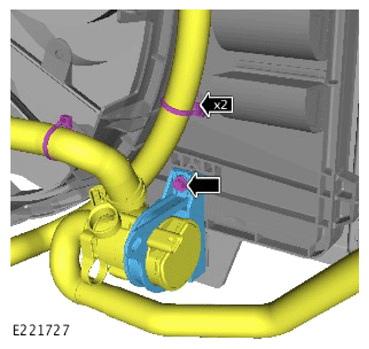

- Remove the charge air cooler coolant pump mounting bracket.
- Release the 2 coolant hose retaining clips.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 3 left side coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the radiator bleed hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

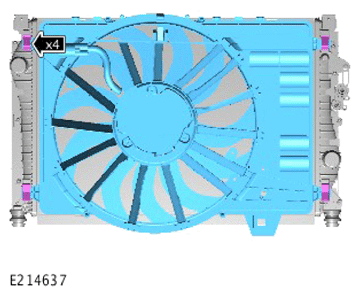

Remove the radiator cooling fan motor and shroud from the cooling module.
