501-20A SEATBELT System

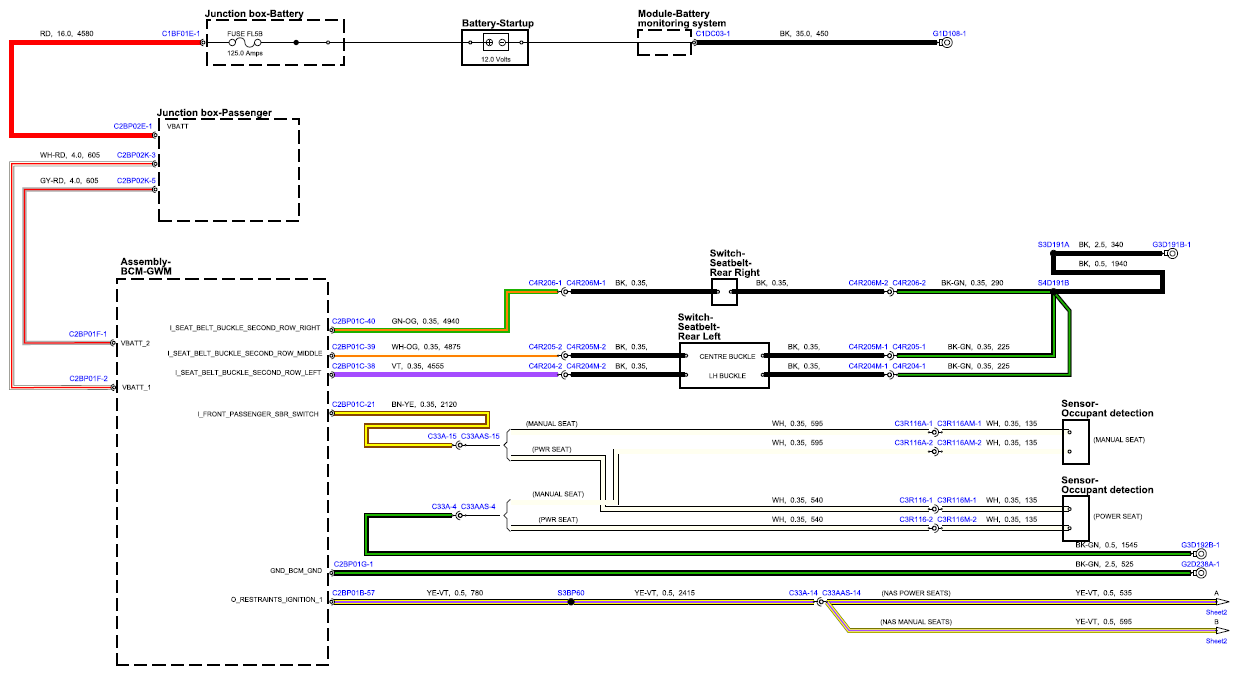

Fig 1: Seatbelt System Circuit Diagram - Sheet 1
G15669495Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

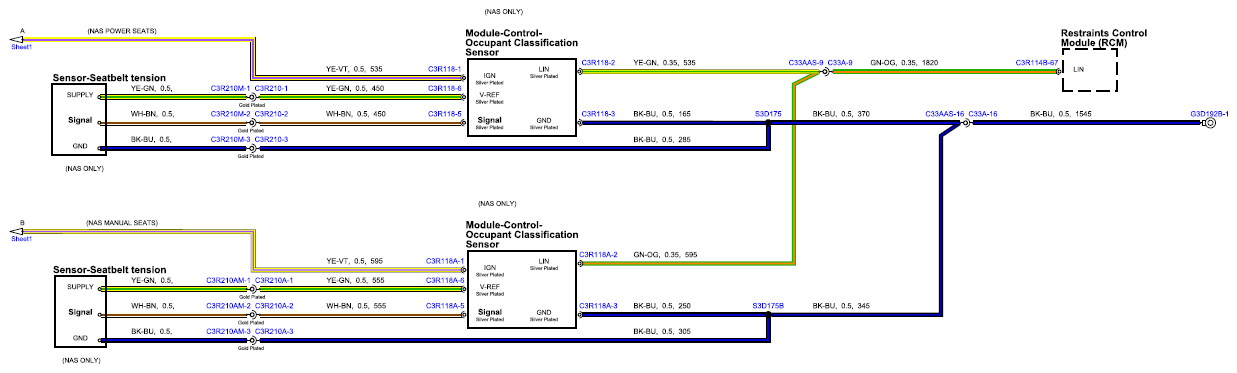

Fig 2: Seatbelt System Circuit Diagram - Sheet 2
G15669496Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
