OEM Wiring Diagrams -- E-Pace X540
>>
501-16 Wipers And Washers
501-16 Wipers And Washers

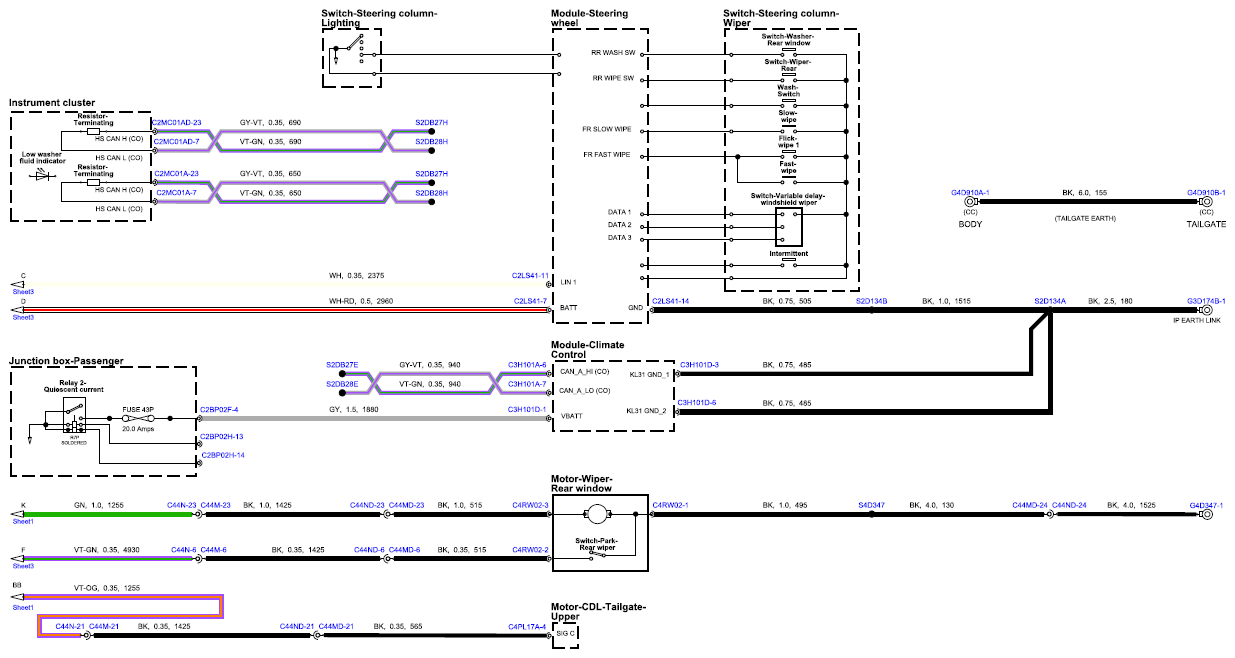

Fig 1: Wipers And Washers Circuit Diagram - Sheet 1
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

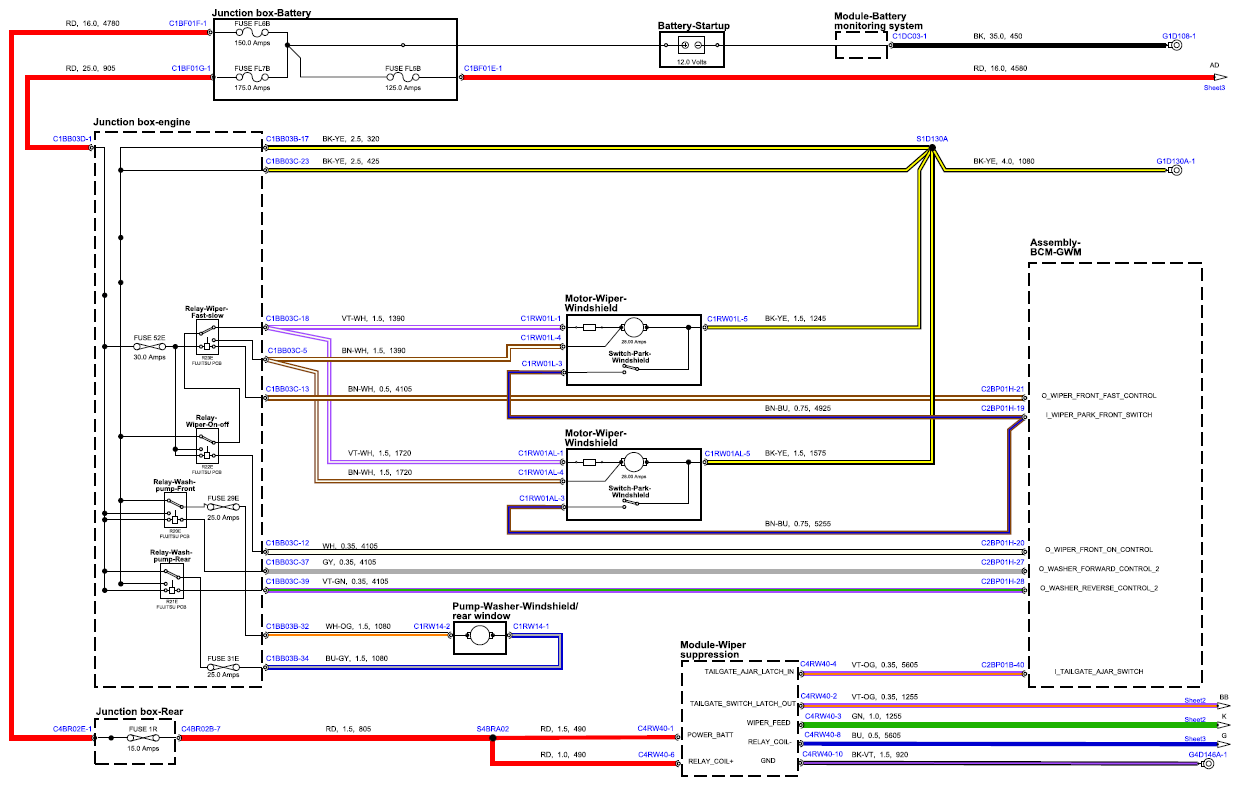

Fig 2: Wipers And Washers Circuit Diagram - Sheet 2
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

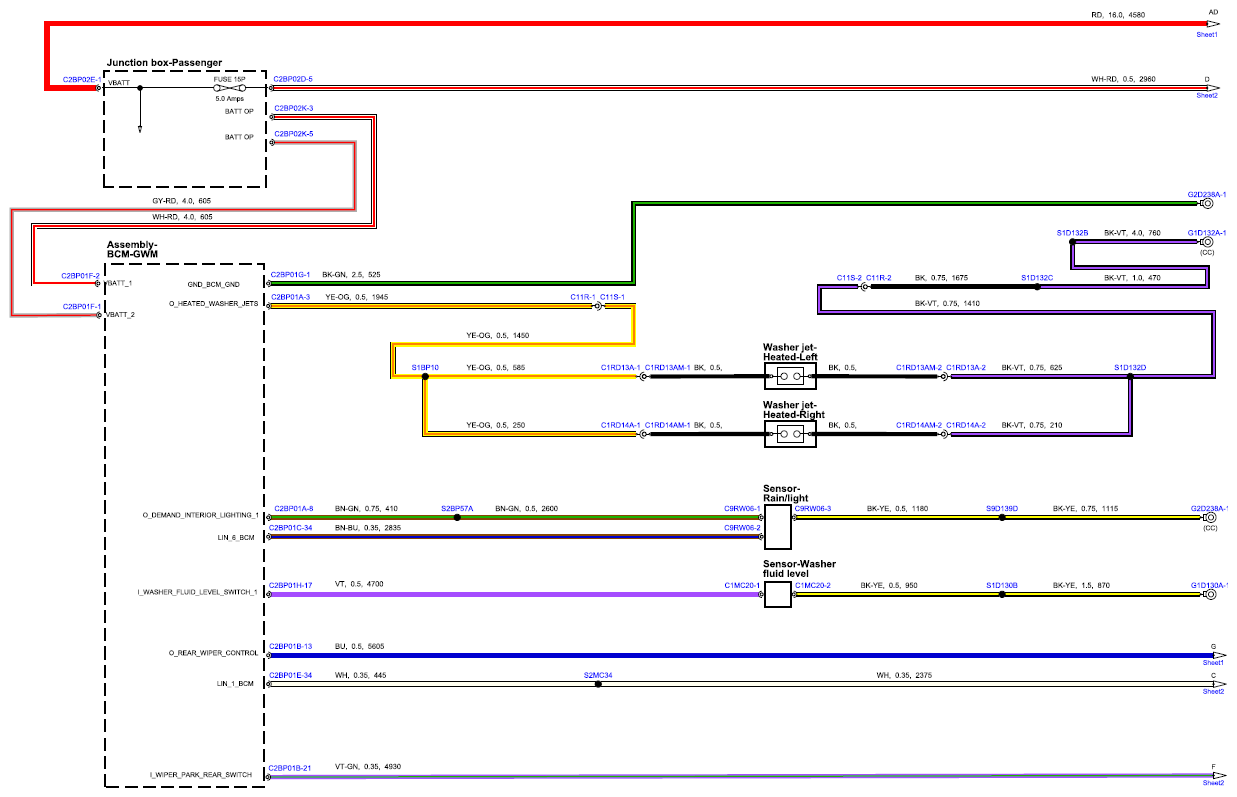

Fig 3: Wipers And Washers Circuit Diagram - Sheet 3
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
